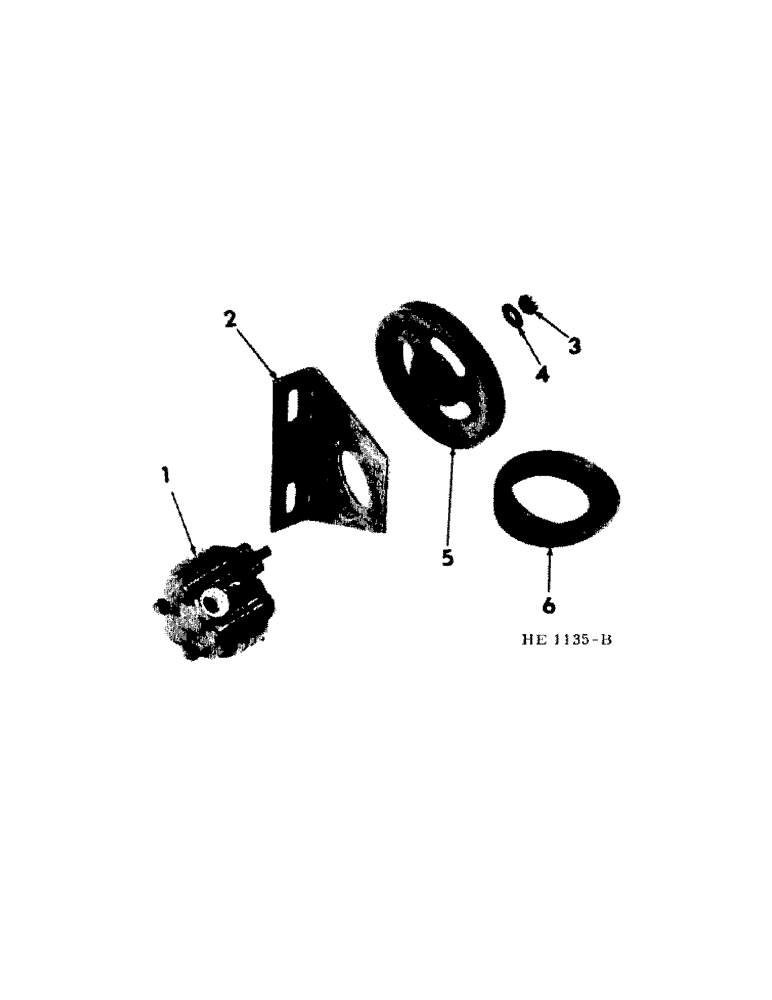

Запчасти Case IH 225 (F-6[A]) - HYDRAULIC SYSTEM, HYDRAULIC PUMP MOUNTING AND DRIVE (07) - HYDRAULIC SYSTEM

1

PUMP ASSY, hyd (For service parts refer to "hydraulic pump")

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT (For use w/591979R91 pump)

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4" BOLT (For use w/591980R91, pump)

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

2

591982R2

SUPPORT, hydraulic pump mounting

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

3/8 X 1-1/4" CRG BOLT

2шт.

469668R1

WASHER

13/32 X 3/4 X 16 GA WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

125-233

NUT, 3/8" - NF slt

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

4

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

5

591981R1

PULLEY

hyd pump drive

1шт.

6

610462R1

V-BELT,36.30" L

Hyd pump drive 36.30" L

1шт.
