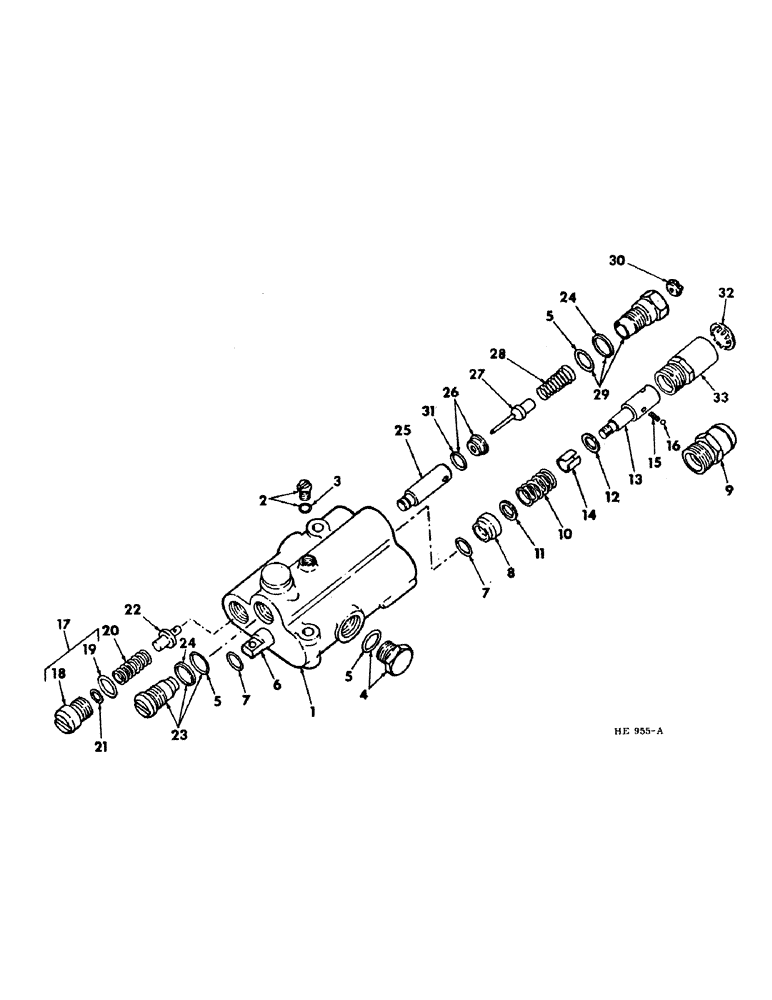

Запчасти Case IH 225 (F-4) - HYDRAULICS SYSTEM, HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

599907R92

VALVE ASSY, hydraulic control (Composed of all parts listed)

1шт.

1

BODY, valve (For service order 1 - 599907R92, valve assy)

1шт.

2

825226C91

PLUG

ASSY, hyd control (Include "O" ring)

1шт.

3

"O" RING, 1/16 x 7/32 I.D. plug

1шт.

Part of Seal Service Kit, P/N 825227C91

1шт.

4

674510R91

PLUG

ASSY, power beyond (Includes "O" ring)

1шт.

5

"O" RING, 3/32 x 5/8 I.D.

1шт.

Part of Seal Service Kit, P/N 825227C91

1шт.

6

SPOOL, valve ( for service order 1 - 599907R92, valve assy)

1шт.

7

"O" RING, 3/32 x 1/2 I.D. spool

2шт.

Part of Four Ball Detent Service Kit, P/N 201999C91

1шт.

Part of Seal Service Kit, P/N 825227C91

1шт.

8

BUSHING, spool

1шт.

Part of Four Ball Detent Service Kit, P/N 201999C91

1шт.

9

CAP, detent two ball (For service change to four ball detent by ordering 1 - 201999C91, kit)

1шт.

10

SPRING, spool center

1шт.

Part of Four Ball Detent Service Kit, P/N 201999C91

1шт.

11

WASHER, spring inner

1шт.

Part of Four Ball Detent Service Kit, P/N 201999C91

1шт.

12

WASHER, spring outer

1шт.

Part of Four Ball Detent Service Kit, P/N 201999C91

1шт.

13

SCREW, detent

1шт.

Part of Four Ball Detent Service Kit, P/N 201999C91

1шт.

14

674492R1

SPACER

detent screw

1шт.

15

SPRING, detent

2шт.

Part of Four Ball Detent Service Kit, P/N 201999C91

1шт.

16

BALL, 5/32 detent

4шт.

Part of Four Ball Detent Service Kit, P/N 201999C91

1шт.

17

202210C91

PLUG

ASSY, relief valve (Includes "O" ring)

1шт.

18

PLUG, relief valve (For service order 1 - 202210C91, plug assy)

1шт.

19

"O" RING, 3/32 x 9/16 I.D. relief valve

1шт.

Part of Seal Service Kit, P/N 825227C91

1шт.

20

673751R1

SPRING

relief

1шт.

21

674504R1

WASHER

SHIM, .015 spring adj

1шт.

394655R1

WASHER

SHIM, .010 spring adj

1шт.

673647R1

WASHER

SHIM, .035 spring adj

1шт.

22

674501R1

VALVE POPPET

POPPET, spring

1шт.

23

674515R91

PLUG

ASSY, plunger (Includes "O" ring & washer)

1шт.

24

WASHER, o-ring back-up

2шт.

Part of Seal Service Kit, P/N 825227C91

1шт.

25

825228C1

PLUNGER, unloading

1шт.

26

674505R91

SEAT

ASSY, lock-out (Includes "O" ring)

1шт.

27

POPPET, valve

1шт.

Part of Seal Service Kit, P/N 825227C91

1шт.

28

674509R1

SPRING

poppet

1шт.

29

674507R91

PLUG

ASSY, port adaptor (Includes "O" ring & washer)

1шт.

30

596300R1

PLATE

orifice

1шт.

31

"O" ring, 1/16 x 1/2 I.D. seat

1шт.

Part of Seal Service Kit, P/N 825227C91

1шт.

32

PLUG, button detent cap

1шт.

Part of Four Ball Detent Service Kit, P/N 201999C91

1шт.

33

CAP, detent four ball

1шт.

Part of Four Ball Detent Service Kit, P/N 201999C91

1шт.

825227C91

KIT

seal service, Includes: ref. nos. 3, 5, 7, 19, 24, 27 & 31

1шт.

201999C91

KIT

four ball detent service, Includes: ref. nos. 7, 8, 10, 11, 12, 13, 15, 16, 32 & 33

1шт.
