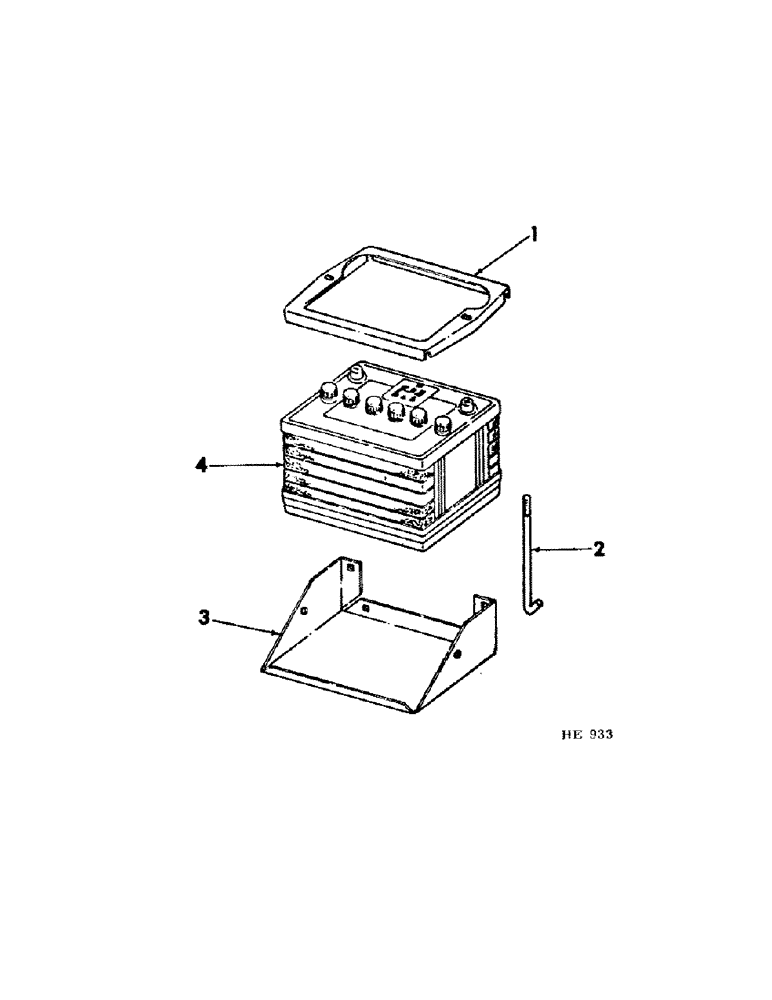

Запчасти Case IH 225 (G-6[A]) - ELECTRICAL SYSTEM, BATTERY AND TRAY (06) - ELECTRICAL SYSTEMS

1

920645R1

CLAMP

COVER, battery

1шт.

2

599158R1

BOLT, battery cover hold down

2шт.

86627130

WING NUT,1/4"-20

1/4" WING NUT

2шт.

21801R1

WASHER

9/32 X 3/4 X 16 GA WASHER

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

599157R1

TRAY, battery

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

4

POL2432X

BATTERY, 12 volt dry charged - Prestolite (For U.S. machine) (To be furnished by dealer)

1шт.

4

912635R92

BATTERY, 12 volt dry charged - Prestolite (Not for U.S. machines)

1шт.
