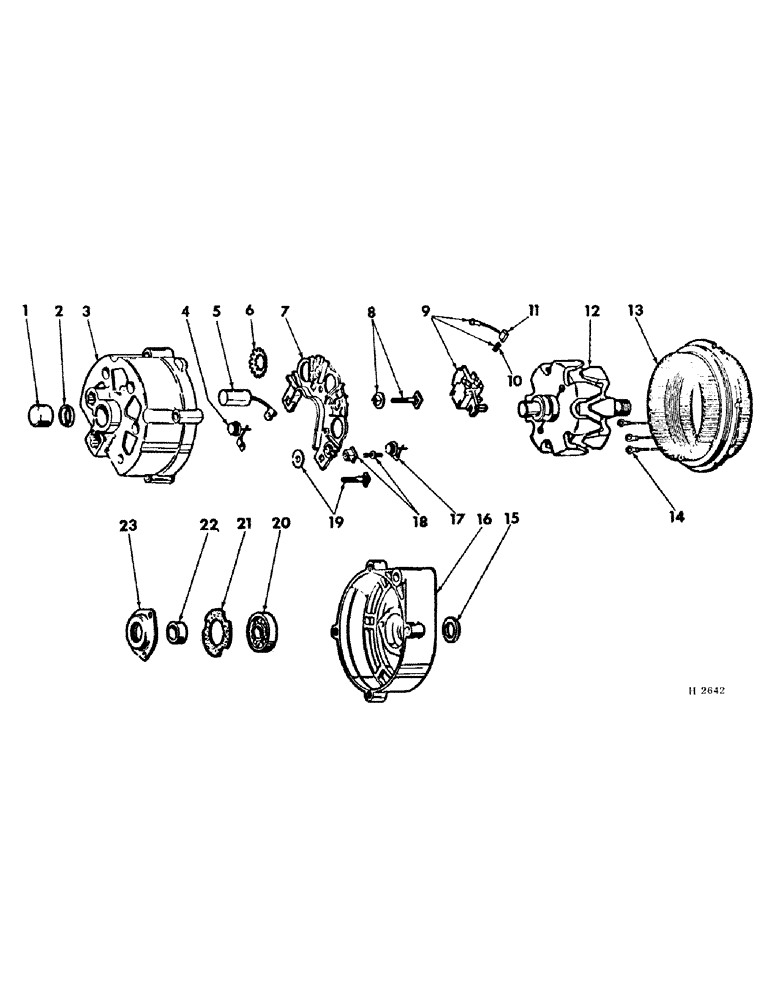

Запчасти Case IH 225 (G-5) - ELECTRICAL SYSTEM, ALTERNATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

1100805

GENERATOR

ALTERNATOR, 12 volt (702337C91) (Composed of all parts listed unless otherwise noted)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

Not part of alternator

1шт.

225-14112

NUT,#12-24

NO. 12 NUT

1шт.

Not part of alternator

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

Not part of alternator

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

Not part of alternator

1шт.

1

7451763

BEARING

rotor end frame

1шт.

2

1961323

SEAL

RETAINER & FELT, rotor end frame

1шт.

3

1969329

FUNNEL

FRAME, rotor end, Composed of:

1шт.

1964354

DIODE

PACKAGE

3шт.

7451763

BEARING

1шт.

1961323

SEAL

RETAINER

1шт.

1959455

CAPACITOR

CONDENSER

1шт.

1960750

VALVE SPRING

RETAINER

1шт.

1956975

BOLT

GENERATOR THROUGH BOLT

4шт.

4

1964354

DIODE

PACKAGE, negative diode

3шт.

5

1959455

CAPACITOR

CONDENSER, rotor end frame

1шт.

6

1960750

VALVE SPRING

RETAINER, rotor end condenser

1шт.

7

1959828

PACKAGE

HEAT SINK & DIODE, generator (Includes 1959834 & 1964353 packages)

1шт.

132768

SCREW,Sl Rnd Hd, #8 - 32 x 3/4"

HEAT SINK ATTACHING SCREW

1шт.

9419392

ATTACHING SCREW SPG WASHER

1шт.

815540

WASHER

ATTACHING SCREW PLAIN WASHER

1шт.

1959389

INSULATOR

ATTACHING SCREW INSULATOR

1шт.

1959523

ATTACHING SCREW INSULATOR WASHER

1шт.

8

1959833

TERMINAL CONNECTOR

PACKAGE, ground terminal

1шт.

9

1964682

HOLDER

BRUSH HOLDER & BRUSH, heat sink (Includes 1964117 springs)

1шт.

1957501

SCREW

HOLDER ATTACHING SCREW

2шт.

9419392

HOLDER SCREW SPG WASHER

2шт.

10

1964117

SPRING

brush holder

2шт.

11

BRUSH (Order 1 - 1964682 package)

1шт.

Not part of alternator

1шт.

12

1958565

ROTOR

generator

1шт.

1915172

NUT

DRIVE END SHAFT NUT

1шт.

1941978

WASHER

DRIVE END SHAFT WASHER

1шт.

13

1959381

COIL

STATOR, generator (Includes 1959532 clips)

1шт.

14

1959532

CLIP, stator lead terminal

3шт.

15

1959991

COLLAR

drive end shaft outside

1шт.

16

1959917

FUNNEL

FRAME, drive end

1шт.

1956975

BOLT

FRAME THROUGH BOLT

4шт.

17

1964353

DIODE

PACKAGE, positive diode

3шт.

18

1959834

TERMINAL STRIP

PACKAGE, diode junction terminal

3шт.

453434

NUT

JUNCTION TERMINAL NUT

3шт.

9419392

JUNCTION TERMINAL SPG WASHER

2шт.

19

1959832

TERMINAL STRIP

PACKAGE, battery terminal

1шт.

20

904751

BEARING

drive end ball

1шт.

21

1912008

FELT

GASKET, brg retainer plate

1шт.

22

1963139

COLLAR CLAMP

COLLAR, drive end shaft inside

1шт.

23

1955494

PLATE

drive end brg retainer

1шт.

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

PLATE ATTACHING SCREW

3шт.
