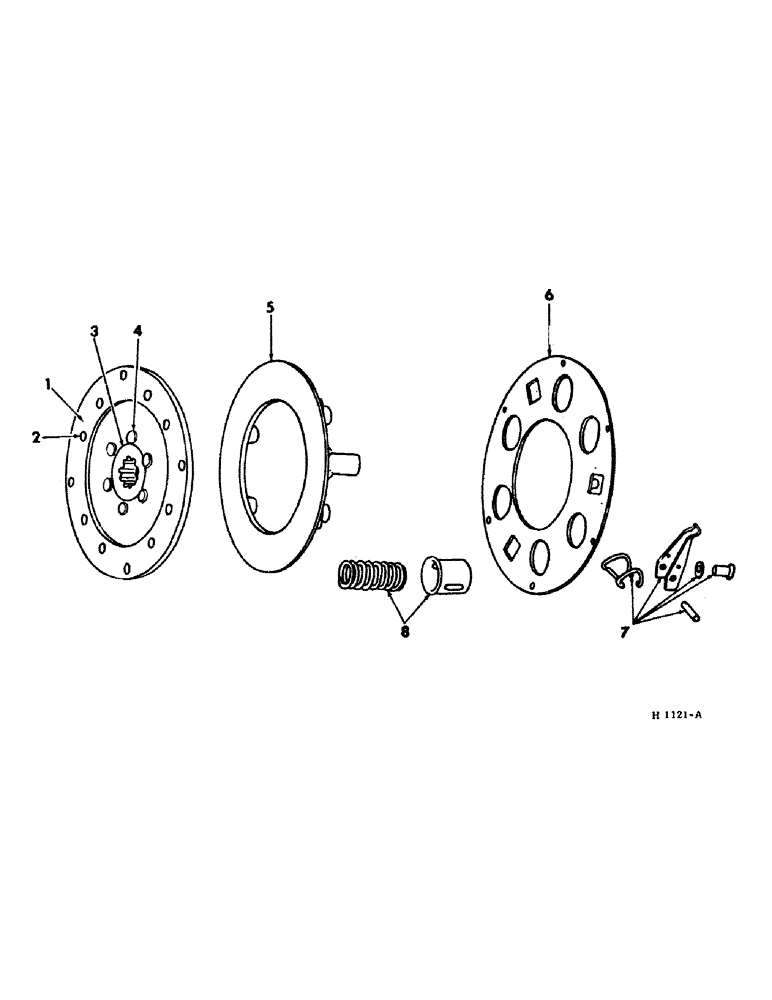

Запчасти Case IH 225 (B-12) - POWER TRAIN, PLANETARY CLUTCH AND PLATE (03) - POWER TRAIN

618246R92

LARGE PLATE

PLATE ASSY, clutch pressure (Includes all parts listed unless otherwise noted)

2шт.

1

618244R91

FACING, CLUTCH

PACKAGE, clutch plate facing service, Composed of

1шт.

Not part of 618246R92.

1шт.

FACING

2шт.

Not part of 618246R92.

1шт.

61176V

RIVET

12шт.

2

61176V

RIVET

clutch plate facing

12шт.

Not part of 618246R92.

1шт.

3

619961R91

DISC

PLATE & HUB ASSY, clutch, Composed of

1шт.

HUB

1шт.

Not part of 618246R92.

1шт.

618244R91

FACING, CLUTCH

PACKAGE

1шт.

115323

RIVET

6шт.

4

115323

RIVET, 5/16 x 7/16" f-hd hub connecting

6шт.

Not part of 618246R92.

1шт.

5

PLATE, clutch pressure (For service order 1-618246R92, plate assy)

1шт.

Not part of 618246R92.

1шт.

6

PLATE, clutch back (For service order 1 - 618246R92, plate assy)

1шт.

Not part of 618246R92.

1шт.

7

825166C1

KIT

PACKAGE, clutch lever, Composed of

1шт.

LEVER

3шт.

Not part of 618246R92.

1шт.

144494

DRIVING SPROCKET

NUT

3шт.

SCREW

3шт.

Not part of 618246R92.

1шт.

PIN

3шт.

Not part of 618246R92.

1шт.

SPRING

3шт.

Not part of 618246R92.

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

3шт.

WASHER

3шт.

Not part of 618246R92.

1шт.

8

825167C1

KIT

pressure spring and cup, Composed of

1шт.

SPRING

6шт.

Not part of 618246R92.

1шт.

CUP

6шт.

Not part of 618246R92.

1шт.
