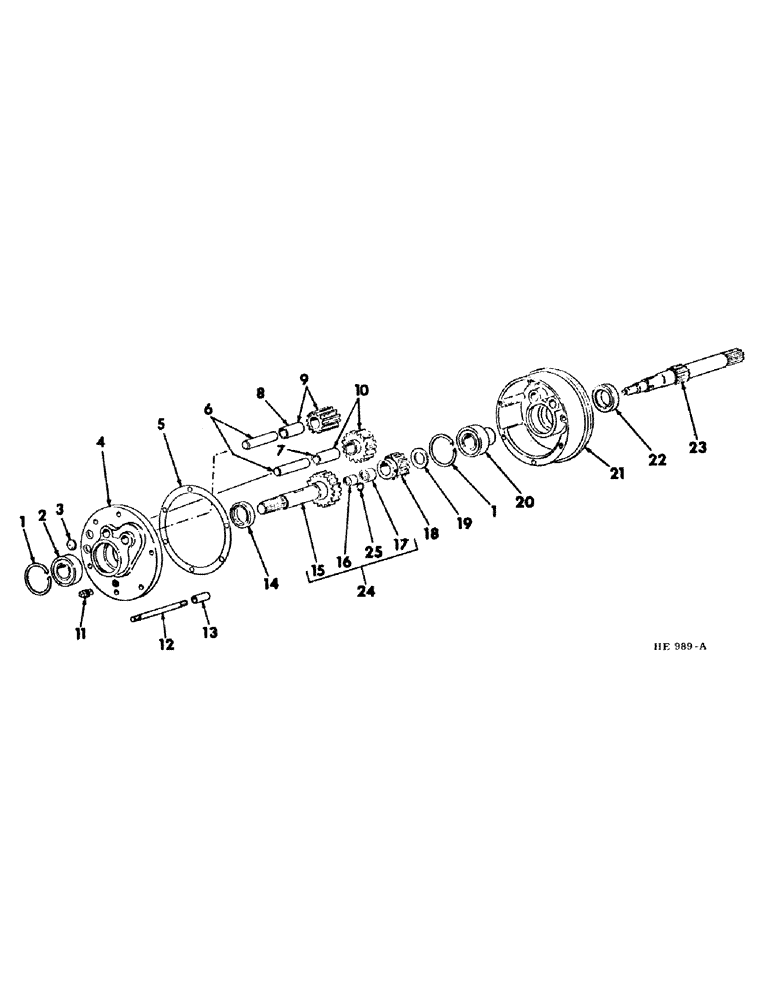

Запчасти Case IH 225 (B-10) - POWER TRAIN, PLANETARY HOUSING (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
616518R1
SNAP RING,#283, 2.954, Int, Spiral
RING, cover bearing retaining
4шт.
2
117510R91
BEARING, BALL
BEARING, housing cover
2шт.
3
41-3014
PLUG,Exp, 7/8"
expansion
4шт.
4
599116R11
COVER ASSY, housing, Composed of:
2шт.
HOUSING
1шт.
618465R91
MAGNETIC PLUG
PLUG
1шт.
172510
PLUG
2шт.
5
617955R1
SHIM
housing cover (Use as req'd)
2шт.
6
599118R1
PIN, planetary gear shaft
4шт.
7
591890R1
BUSHING, planetary idler gear
2шт.
8
591889R1
BUSHING, planetary drive gear
2шт.
9
591892R11
GEAR ASSY, planetary drive (Includes 1-591889R1 bushing)
2шт.
10
591893R11
GEAR ASSY, planetary idler gear (Includes 1-591890R1 bushing)
2шт.
11
618465R91
MAGNETIC PLUG
PLUG, magnetic
2шт.
12
599117R1
STUD, planetary transmission
12шт.
120368
NUT,5/16"-24, G5
24шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
24шт.
13
591887R1
SPACER, clutch
12шт.
14
384386R91
OIL SEAL,42.7mm ID x 63.7mm OD x 8.33mm Thk
Oil, Housing Cover 1.752" ID x 2.503" OD x .689
2шт.
15
GEAR, planetary output (For service order 1-599111R21, gear assy)
2шт.
16
599119R91
BEARING
input shaft
2шт.
17
599120R91
ROLLER BEARING,0.875" ID x 1.188" OD x 0.75"
BEARING, input shaft
2шт.
18
591884R1
GEAR, 17T transmission input
2шт.
19795R1
PIN,1/4" x 1 3/4", Coiled
2шт.
19
Q3483
WASHER
1-9/32 x 2 x 11 ga
2шт.
20
591895R91
BALL BEARING,1.313" ID x 2.8346" OD x 1.35"
planetary housing
2шт.
21
599115R1
HOUSING, planetary gear
2шт.
22
935869R92
SEAL,44.35mm ID x 66.72mm OD x 12.7mm Thk
SEAL, planetary housing oil
2шт.
23
599103R1
SHAFT, input LH (Shown)
1шт.
23
599106R1
SHAFT
input RH
1шт.
24
599111R21
GEAR ASSY, planetary output, Composed of:
2шт.
GEAR
1шт.
825494C1
RING
1шт.
599119R91
BEARING
1шт.
599120R91
ROLLER BEARING,0.875" ID x 1.188" OD x 0.75"
BEARING
1шт.
25
825494C1
RING
inner bearing retaining (For use w/gear output with retaining groove)
2шт.
Выбрано товаров: 37
