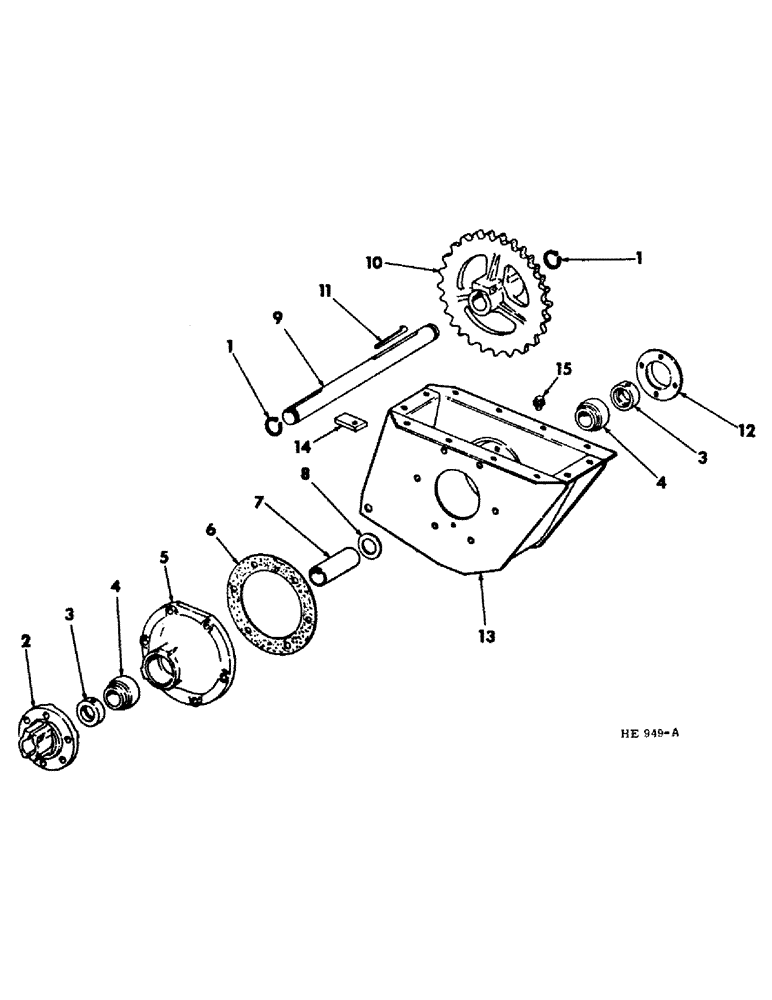

Запчасти Case IH 225 (B-05) - POWER TRAIN, MAIN WHEEL AXLE AND HOUSING (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
698553R1
SNAP RING,#175, Ext
Ring, Snap, , hub #175, Ext
4шт.
2
591817R2
HUB
main wheel drive
2шт.
180183
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5
1/2 X 2-1/4" BOLT
4шт.
R15092
KEY,3/8" Sq x 2 3/4", Par
3/8 SQ X 2-3/4" KEY
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
3
582816R11
COLLAR
W/SCREW, main wheel axle bearing locking
4шт.
4
594396R91
BALL BEARING,1.7507" ID x 3.3465" OD x 1.6875"
main weel axle
4шт.
5
599093R1
HOUSING
main wheel axle bearing
2шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2 X 1-1/2" BOLT
12шт.
120384
WASHER,1/2"
LOCK, 1/2"
12шт.
6
599899R1
GASKET
axle bearing housing
2шт.
7
599095R1
SPACER, main wheel axle bearing
2шт.
8
22768R1
WASHER
1-25/32 x 2-3/4 x 18 ga
1шт.
9
599094R2
SHAFT
AXLE, main wheel
2шт.
10
825102C11
SPROCKET, main wheel drive (Includes 4-233815 bolts & 4-225861 nuts)
1шт.
223815
BOLT,Hex, 5/8" - 18 x 3", Gr 8
5/8 X 3" TYPE 8 BOLT
4шт.
225861
NUT,5/8"-18, G8
4шт.
11
Q3958
KEY,Gib, 3/8" Sq x 4 1/4"
3/8 x 4-1/2 gib-hd
2шт.
12
599092R1
FLANGE
TTE, main wheel axle bearing
2шт.
598813R1
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
1/2 X 1" CRG BOLT
8шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
8шт.
120384
WASHER,1/2"
LOCK, 1/2"
8шт.
13
599900R2
HOUSING
final drive axle (LH shown)
1шт.
13
599901R2
HOUSING, final drive axle (RH)
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
18шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 X 1-1/4" BOLT
4шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
3/8 X 1" CRG BOLT
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
22шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
22шт.
14
825252C1
BAR, reinforcing
4шт.
15
826222C1
FITTING
relief valve breather
2шт.
444687
PLUG,Hex Soc, 1/8"-27
Pipe Tee Hex Soc, 1/8"-27
2шт.
Выбрано товаров: 35
