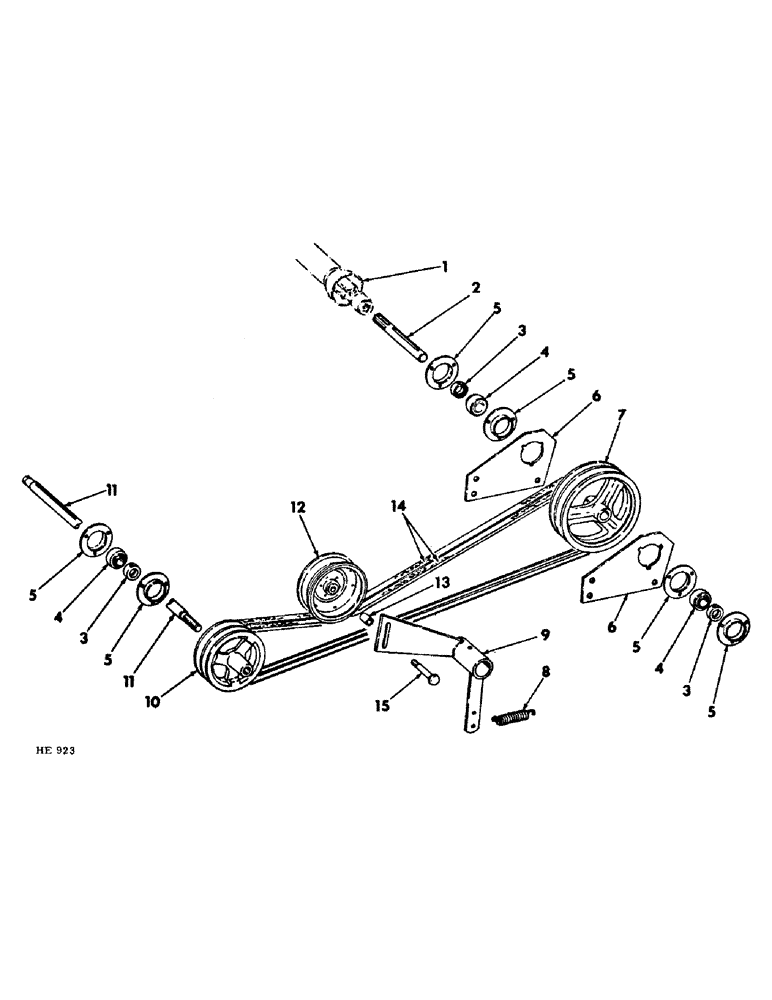

Запчасти Case IH 225 (B-04) - POWER TRAIN, CHASSIS PLATFORM DRIVE, RIGHT HAND (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
UNIVERSAL, platform drive (For service parts refer to "platform universal" section Q)
1шт.
2
599141R1
SHAFT
platform secondary drive
1шт.
3
455104R11
COLLAR
W/SCREW, bearing locking
3шт.
4
565672R91
BALL BEARING,1.25" ID x 72 mm OD x 1.53125"
platform drive countershaft and secondary drive shaft
3шт.
5
617863R1
FLANGED BEARING
TTE, platform counter shaft and secondary drive shaft
6шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
3/8 X 1" CRG BOLT
9шт.
120377
NUT,3/8" - 16, Gr 5
9шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
9шт.
6
599142R1
SUPPORT, secondary drive shaft bearing
2шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 X 1-1/4" BOLT
2шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2 X 1-1/2" BOLT
1шт.
21375R1
WASHER
17/32 X 1-1/4 X 7 GA WASHER
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
3шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
7
599143R1
PULLEY, platform driven
1шт.
Q3727
3/8 X 2" SQ-TAPERED KEY Gib, 3/8" Sq x 2" Tap
1шт.
8
PO93
SPRING
idler pulley lever
1шт.
180179
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
1/2 X 1-3/4" BOLT
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
9
599144R1
LEVER, idler pulley
1шт.
16964R91
FITTING
1/4" NF-90 DEGREE LUG-FITTING
1шт.
10
599140R1
PULLEY, platform driven
1шт.
11
591870R2
SHAFT, platform countershaft drive
1шт.
12
823202C91
PULLEY
secondary drive idler
1шт.
13
599683R1
SPACER, platform secondary drive idler
1шт.
14
599148R11
SET OF 2 BELTS,0.88" W x 129.00" L
SET OF BELTS , V-Belt, Platform secondary (Includes 2 belts) 0.88" W x 129.00" L
1шт.
15
608532R1
SCREW,Short NK, 5/8"-11 x 3 1/2", G5
BOLT, 5/8 x 3-1/2" crg idler pulley
1шт.
464623R1
WASHER
21/32 X 1-1/2 X 11 GA WASHER
1шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8" NUT
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
