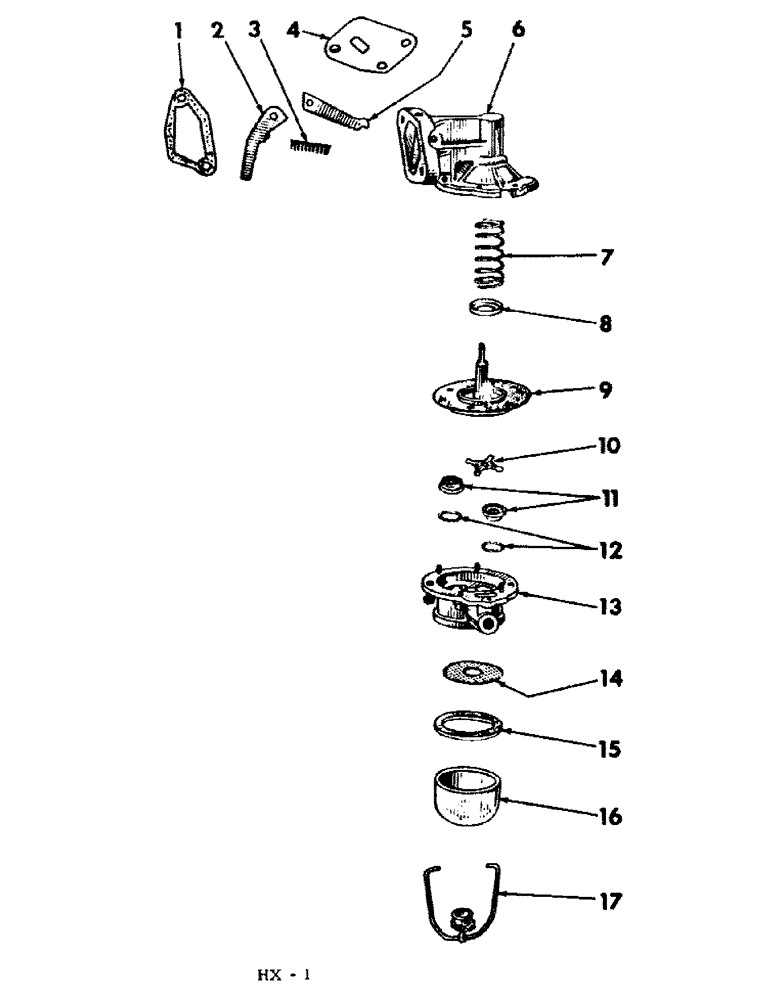

Запчасти Case IH 225 (E-4) - FUEL SYSTEM, MECHANICAL FUEL PUMP, GAS (02) - FUEL SYSTEM

57324DX

PUMP

fuel (A.C. Spark Plug Co. H5594549) (Includes 49124D, gasket) (Composed of all parts listed, unless otherwise noted)

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

2шт.

Not part of fuel pump

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Not part of fuel pump

1шт.

1

49124D

GASKET

fuel pump

1шт.

2

59993D

ARM, rocker

1шт.

36350D

ROCKER ARM PIN

1шт.

36351D

ROCKER ARM PIN WASHER

1шт.

3

59081DA

SPRING, rocker arm

1шт.

4

23511D

GASKET

mounting

1шт.

5

59082DA

LINK, rocker arm

1шт.

6

NSS

NOT SOLD SEPARAT

BODY, pump (Order 1 - 57324DX, pump)

1шт.

7

304156R1

SPRING, diaphragm

1шт.

8

59086D

RETAINER, diaphragm spg

1шт.

9

304138R91

GAUGE ASSY.

DIAPHRAGM, fuel pump

1шт.

10

59996D

PLATE, valve

1шт.

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

VALVE PLATE SCREW

1шт.

11

59084DA

VALVE AND CAGE, intake & outlet

1шт.

12

59995D

GASKET, valve & cage

2шт.

13

59091D

COVER, fuel pump

1шт.

130894H

NO. 10-NF X 5/8" SLTD-FIL-HD SCREW

7шт.

122158

GEAR

NO. 10 LK-WASHER

7шт.

14

59090D

FILTER

SCREEN, fuel pump

1шт.

15

59089D

GASKET

fuel bowl

1шт.

16

98376R91

BOWL

fuel pump (Includes 59089D, gasket)

1шт.

17

98375R91

KIT

BAIL FUEL BOWL

1шт.
