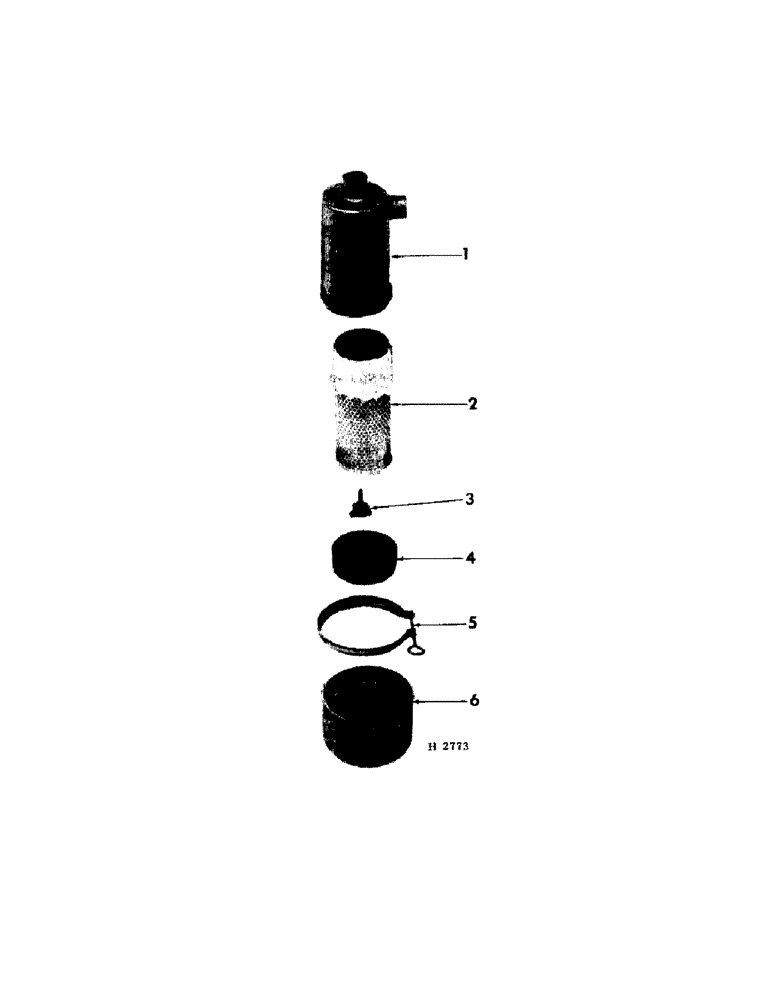

Запчасти Case IH 225 (E-3) - FUEL SYSTEM, AIR CLEANER, DRY-TYPE, DONALDSON (02) - FUEL SYSTEM

388126R92

CLEANER ASSY, dry-type air (Donaldson) (Opt to use 595548R91, cleaner) (Composed of all parts listed below)

1шт.

1

BODY, air cleaner (For service, order 1 - 388126R92 or 1 - 595548R91, cleaner)

1шт.

2

389567R91

FILTER, ELEMENT

ELEMENT, dry-type cleaner

1шт.

3

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

BOLT, air cleaner element

1шт.

4

381346R1

BAFFLE

SKIRT, baffle

1шт.

5

377953R91

CLAMP

air cleaner cup

1шт.

6

389568R91

CUP, air cleaner

1шт.
