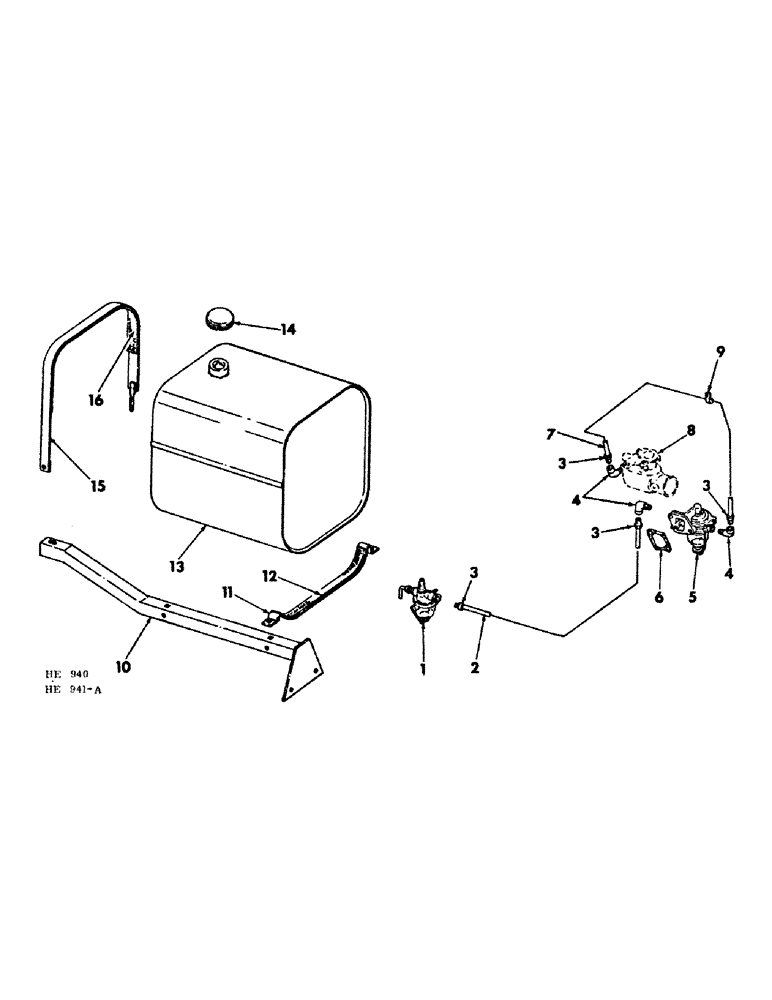

Запчасти Case IH 225 (E-2) - FUEL SYSTEM, FUEL SYSTEM AND TANK SUPPORTS (02) - FUEL SYSTEM

1

369988R91

FILTER CARTRIDGE

STRAINER ASSY, fuel (For service parts refer to "fuel strainer")

1шт.

2

599240R2

TUBE, fuel strainer to pump 0.313" OD, 21.7, 7.7" Length

1шт.

3

222-503

TUBE NUT,1/2"-20

NUT, 5/16" tube

4шт.

4

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

tube

3шт.

5

57324DX

PUMP

FUEL PUMP W/GASKET ASSY (FOR SERVICE PARTS REFER TO "FUEL PUMP")

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

2шт.

Not part of pump.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Not part of pump.

1шт.

6

49124D

GASKET

fuel pump

1шт.

7

385680R1

TUBE, Serial Range: pump-carburetor

1шт.

8

CARBURETOR, engine (For service parts refer to parts catalog eng-1)

1шт.

9

140579

CLAMP, tube

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

599232R1

SUPPORT, fuel tank

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

2шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

11

599236R11

STRAP W/LINING ASSY, fuel tank lower

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

LINING, fuel tank strap lower 3 ply canvas webbing 1 x 14" (Dealer to supply from bulk stock 990538R1)

2шт.

13

597771R91

TANK ASSY, fuel (Includes 1 - 612650R1, cap)

1шт.

14

612650R1

CAP

fuel tank

1шт.

15

599238R11

STRAP W/LINING ASSY, fuel tank upper

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

16

LINING, fuel tank strap upper 3 ply canvas webbing 1 x 30" (Dealer to supply from bulk stock 990538R1)

2шт.
