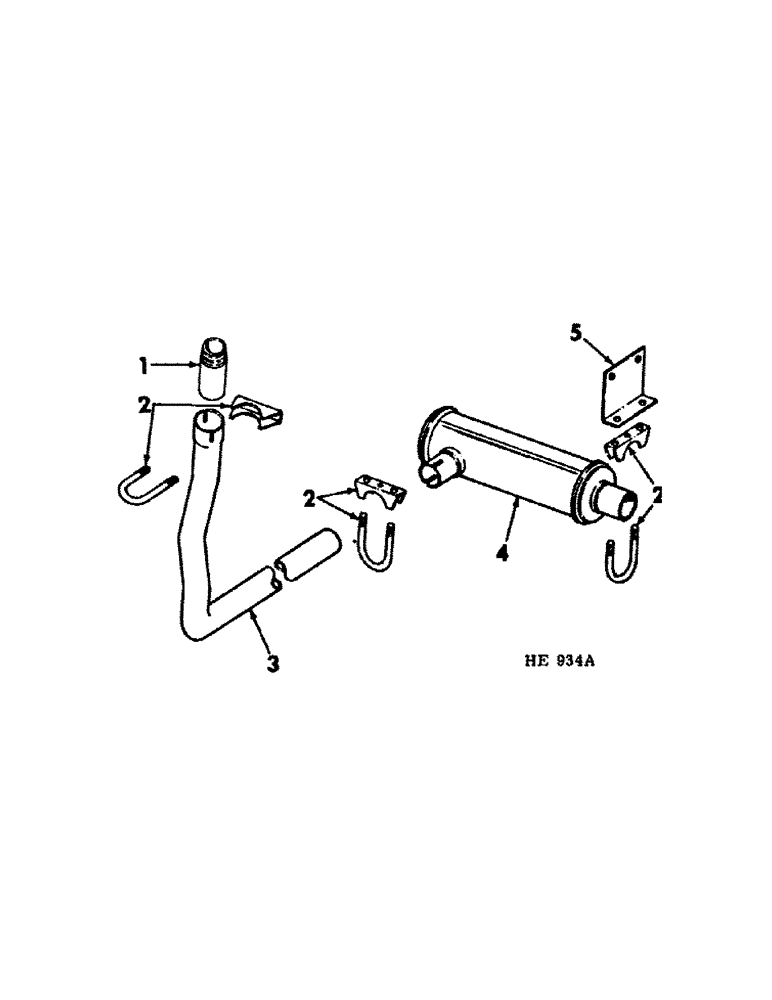

Запчасти Case IH 225 (C-2) - CARBURETED ENGINE, EXHAUST MUFFLER AND PIPE (01) - ENGINE

1

610872R1

PIPE

NIPPLE, exhaust

1шт.

2

170572R91

CLAMP

ASSY, exhaust, Composed of:

3шт.

SADDLE

1шт.

U-BOLT

1шт.

120368

NUT,5/16"-24, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120368

NUT,5/16"-24, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

599908R2

PIPE

exhaust

1шт.

4

609924R91

MUFFLER

exhaust

1шт.

5

599909R1

SUPPORT, rear muffler clamp

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
