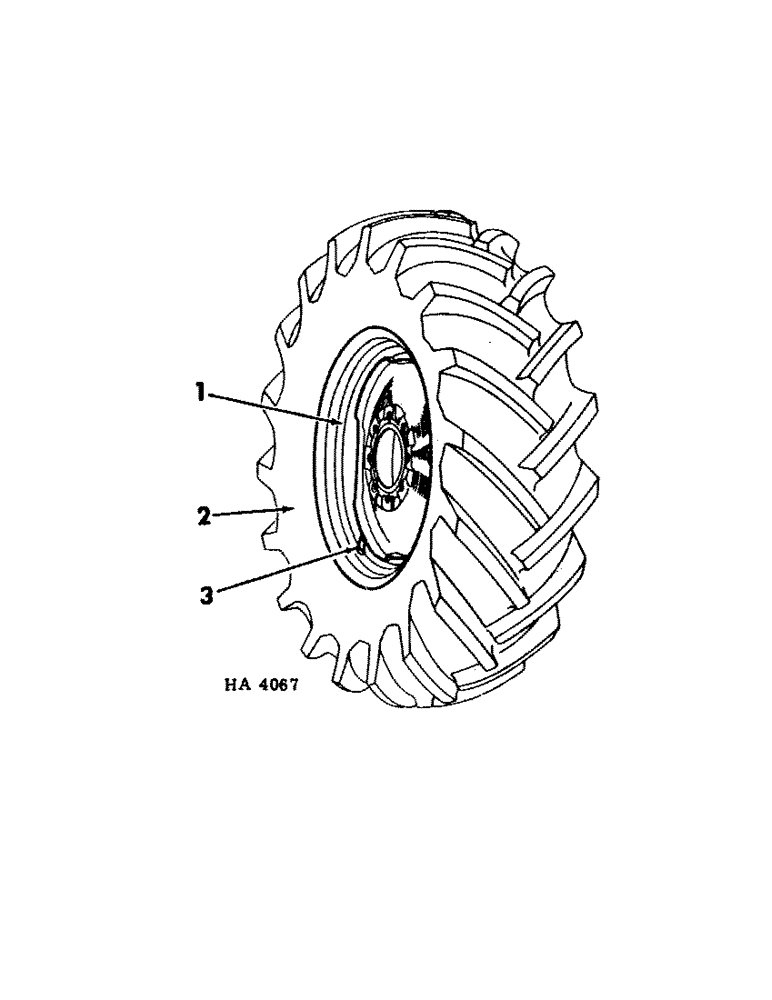

Запчасти Case IH 225 (L-2) - WHEELS AND WHEEL WEIGHTS, MAIN WHEEL AND TIRES Wheels & Wheel Weights

1

599284R1

WHEEL

18 x 8 LB DC main (For use w/7.50-18 4 ply tire & tube) (Prior to serial no. 805)

2шт.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2 X 5/8" WHEEL BOLT

12шт.

U18588

NUT

1/2" WHEEL NUT

12шт.

1

598999R1

RIM

WHEEL, 15 x 10 LB DC main (For use w/12.5-L15 6 ply tubeless tire) (Serial no. 805 & since)

2шт.

2

TUBE AND TIRE, 7.50-18 4 ply agriculture (For use w/18 x 8 LB DC wheel) (Code I-3 open center)

1шт.

2

TIRE, 12.5L-15 6 ply I-3 tubeless agriculture (For use w/15 x 10 LB DC wheel)

2шт.

3

387897R91

VALVE STEM

VALVE, tire (For tubeless wheel serial no. 805 & since)

1шт.
