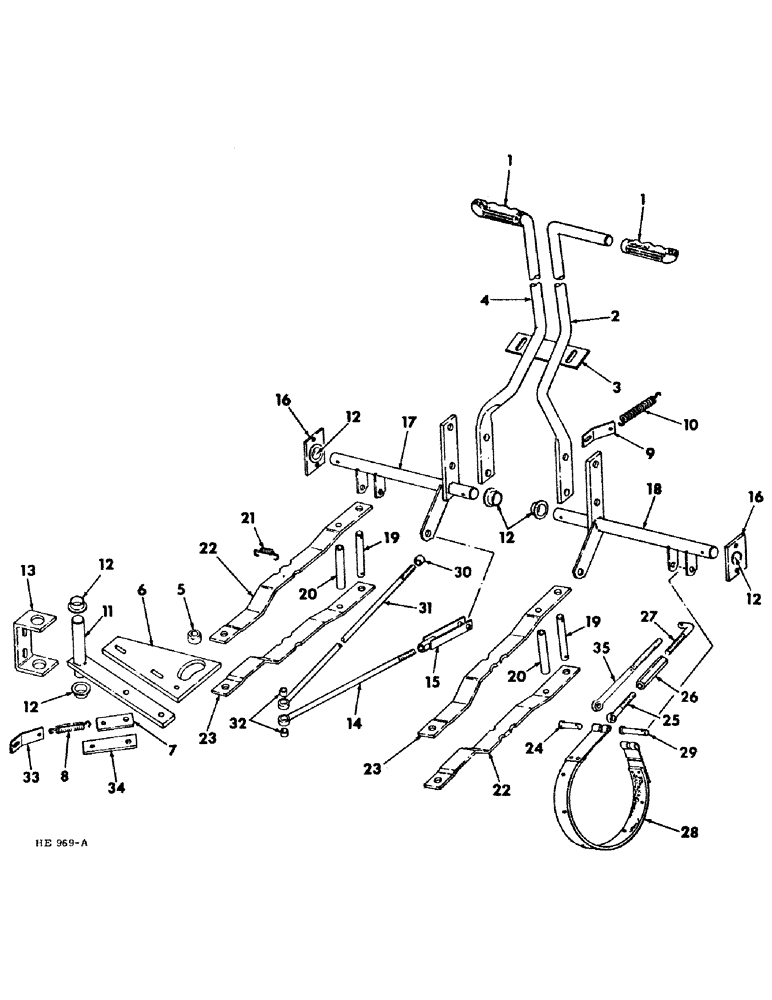

Запчасти Case IH 225 (J-2) - STEERING MECHANISM, STEERING CONTROLS Steering Mechanism

1

595231R1

GRIP, steering lever handle

2шт.

2

599019R1

LEVER, steering RH

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 X 1-1/4" BOLT

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 X 1-1/2" BOLT

1шт.

271501

SOCKET

7/16" NUT

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

3

599020R1

BAR, lever bumper

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

2шт.

618856R1

13/32 X 1 X 16 GA WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

599018R1

LEVER, steering LH

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 X 1-1/4" BOLT

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 X 1-1/2" BOLT

1шт.

NLS

NO LONGER SERVICED

7/16" NUT

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

5

611928R91

BALL BEARING,13 mm ID x 40 mm OD x 18 mm

clutch control cam

2шт.

6

599022R1

CAM, clutch control

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 X 2" BOLT

2шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

7/16 X 1-1/4" BOLT

2шт.

607891R1

WASHER

15/32 X 1 X 16 GA WASHER

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

271501

SOCKET

7/16" NUT

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

7

599684R1

BAR, cam return spring anchor (Prior to serial no. 805)

2шт.

8

595535R1

SPRING

cam return

2шт.

9

599024R1

CLIP, steering lever return

2шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 X 1-1/2" BOLT

2шт.

NLS

NO LONGER SERVICED

7/16" NUT

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

10

677536R1

SPRING

lever return

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

11

599023R1

ARM, cam support

2шт.

614451R1

WASHER

1-1/32 X 1-3/4 X 11 GA WASHER

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

12

595252R1

BUSHING

support arm and steering rockshaft inner and outer

8шт.

13

599205R1

YOKE, support arm pivot

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

4шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

14

599021R1

ROD, clutch linkage

2шт.

180085

SPRING

5/16 X 1-3/4" BOLT

2шт.

619855R1

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

105606

NUT

3/8" SQ NUT

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

599025R1

CLEVIS, clutch link

2шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

4шт.

20803R1

WASHER

13/32 X 1 X 11 GA WASHER

4шт.

21809R1

HEADED PIN,3/8" x 1 5/16"

3/8 X 1-5/16" STD-HD-DLD PIN

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

16

599129R11

BAR ASSY, steering rockshaft (Includes 1 - 595252R1, bushing)

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" BOLT

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

599031R1

ROCKSHAFT, steering LH

1шт.

591715R1

WASHER

1-1/32 X 1-1/2 X 16 GA WASHER

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

18

599032R1

ROCKSHAFT, steering RH

1шт.

591715R1

WASHER

1-1/32 X 1-1/2 X 16 GA WASHER

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

19

599128R1

PIN, control arm pivot

2шт.

178373R1

WASHER

17/32 X 1 X 16 GA WASHER

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

20

580883R1

SPACER,3/8" Pipe x 3 1/4"

arm spreader (Prior to serial no. 805)

2шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3/8 X 4-1/2" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21

84201R1

SPRING, control, Serial Range: arm-bearing

4шт.

22

599028R1

ARM, clutch control

2шт.

23

599029R1

ARM, clutch control

2шт.

24

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1-25/32" band connecting rod end

2шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

2шт.

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

25

599011R1

BOLT, reverse and brake band eye (Prior to serial no. 805)

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

26

613596R1

TURNBUCKLE, reverse and brake band (Prior to serial no. 805)

2шт.

27

599012R2

ROD, reverse and brake band connecting (Prior to serial no. 805)

2шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

2шт.

1036384

1/8 X 3/4" C-PIN

2шт.

28

595299R92

BAND

ASSY, reverse and brake (For service parts refer to "reverse and brake band" section H)

2шт.

29

U5356

HEADED PIN,9.53mm OD x 57.15mm L

PIN, 2-1/4" band connecting std-hd-dld

2шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

2шт.

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

30

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

clutch rod

2шт.

31

599126R1

ROD, clutch

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

32

599037R1

SPACER, clutch rod

4шт.

33

599024R1

CLIP, cam return spring anchor (Prior to serial no. 805)

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

34

825297C1

BAR, cam return spring anchor (Serial no. 805 and since)

2шт.

35

825296C2

BOLT,3/8" - 16 x 8"

reverse band eye (Serial no. 805 and since)

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.
