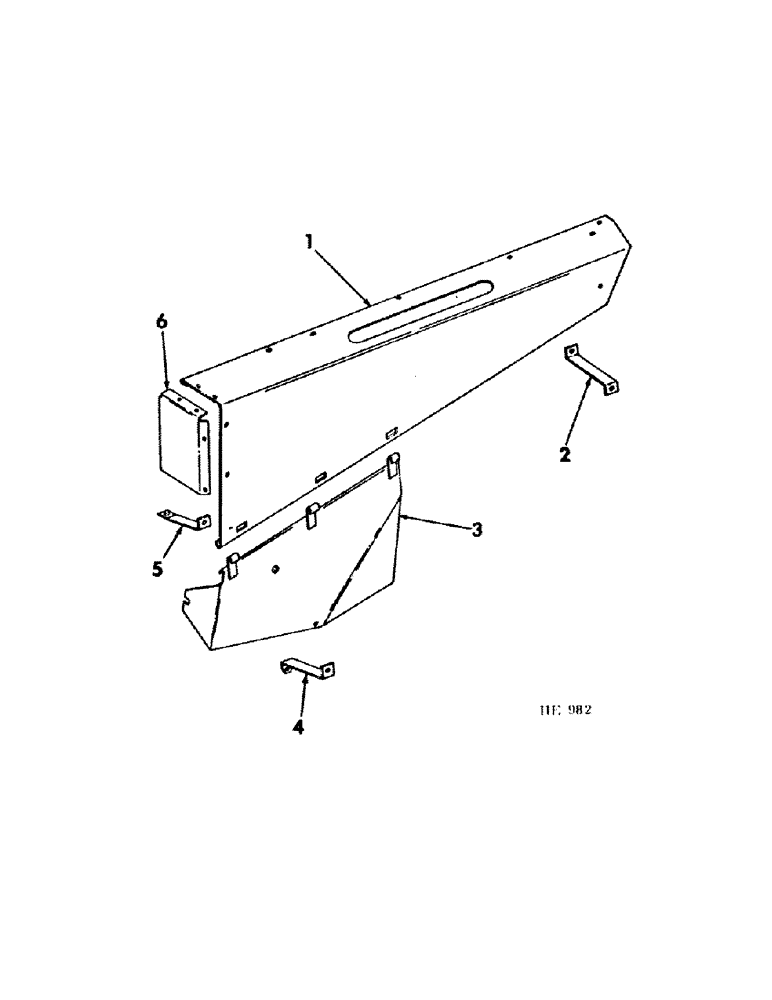

Запчасти Case IH 225 (Q-24) - PLATFORM, REEL SHIELDS, RIGHT HAND Platforms

1

599431R1

SHIELD, reel drive upper

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

4шт.

120376

NUT,5/16"-18, G5

5/16" LK-WASHER

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

599432R1

BRACE, reel drive shield front

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

599435R2

SHIELD, lower

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 X 5/8" BOLT

1шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

599439R1

SUPPORT, lower shield

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 X 5/8" BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

599438R1

BRACE, shield rear

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

599433R2

SUPPORT, reel drive shield rear

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
