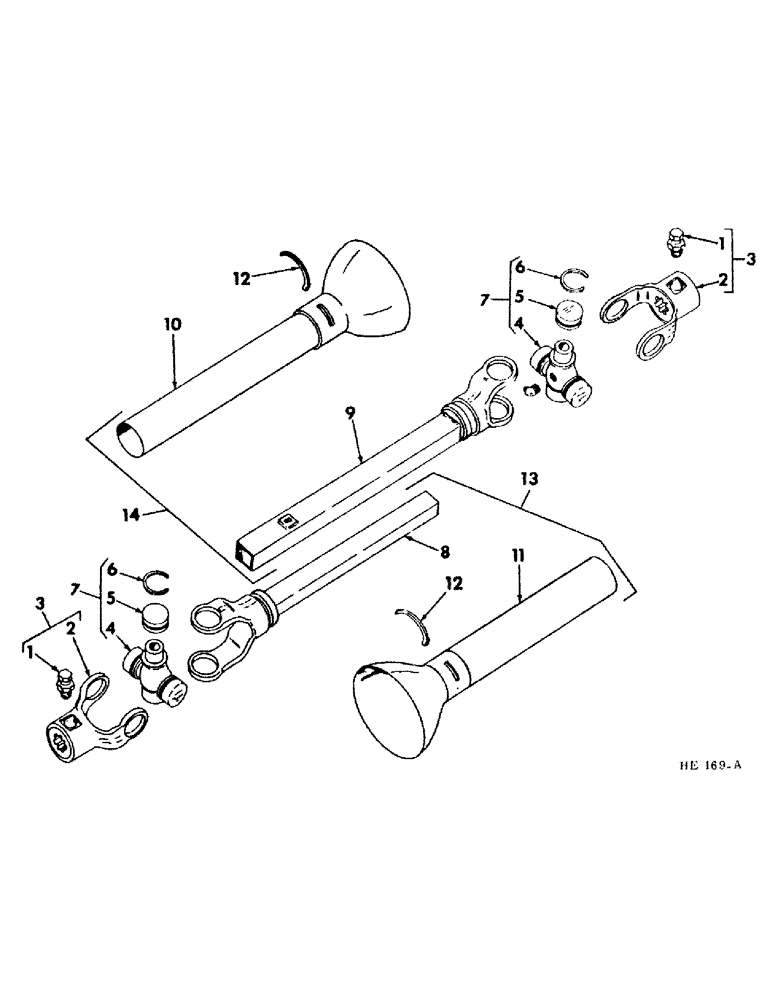

Запчасти Case IH 225 (Q-23) - PLATFORM, PLATFORM UNIVERSAL, HAYES Platforms

1

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2" - NF x 1-3/16" sq-hd cone-pt set

2шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2" - NF JAM NUT

2шт.

2

YOKE, front & rear universal (For service order 1 - 596257R11, yoke assy)

2шт.

3

596257R11

YOKE

ASSY, front & rear (Includes 1 - 38904K, screw and 1 - 124934, nut)

2шт.

4

CROSS, universal center (For service order 1 - 609144R91, cross assy)

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 65º, 1/8" NPT x 7/8" lg

2шт.

5

BEARING, center cross needle (For service order 1 - 609144R91, cross assy)

8шт.

6

609154R1

RING

cross bearing snap

8шт.

7

609144R91

CROSS

ASSY, center, Composed of:

2шт.

CROSS

1шт.

BEARING

4шт.

609154R1

RING

4шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 65º, 1/8" NPT x 7/8" lg

1шт.

8

599636R1

YOKE

AND BAR, universal

1шт.

9

599637R1

YOKE

AND TUBE, universal

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

10

599638R1

SHIELD

inner

1шт.

11

599639R1

SHIELD

outer

1шт.

12

599640R1

KIT

shield bearing (Includes 6 nylon bearing)

1шт.

13

825002C91

JOINT

HALF, universal, Composed of

1шт.

599636R1

YOKE

& BAR

1шт.

599639R1

SHIELD

1шт.

599640R1

KIT

1шт.

609144R91

CROSS

ASSY

1шт.

596257R11

YOKE

ASSY

1шт.

14

825003C91

JOINT

HALF, universal, Composed of

1шт.

599637R1

YOKE

& TUBE

1шт.

599638R1

SHIELD

1шт.

599640R1

KIT

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

609144R91

CROSS

ASSY

1шт.

596257R1

YOKE

ASSY

1шт.
