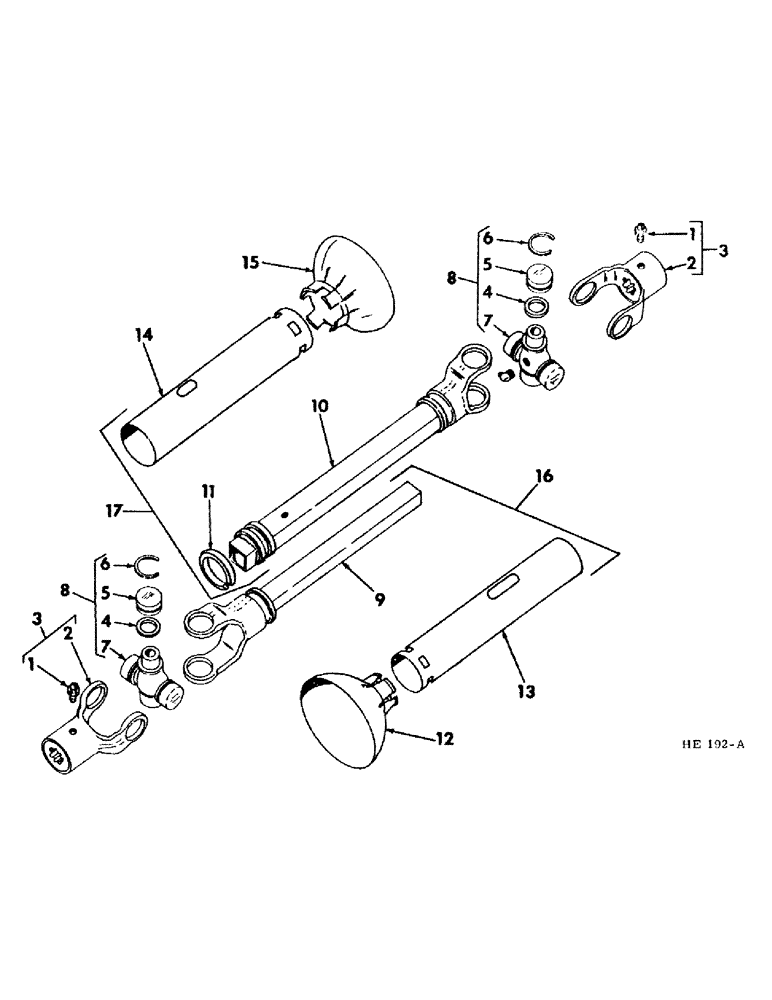

Запчасти Case IH 225 (Q-22) - PLATFORM, PLATFORM UNIVERSAL, ROCKWELL STANDARD Platforms

1

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2" - NF x 3/16" sq-hd cone-pt set

2шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2" - NF JAM NUT

2шт.

2

YOKE, front & rear universal (For service order 1 - 596246R11, yoke assy)

2шт.

3

596246R11

YOKE ASSY, front & rear (Includes 1 - 38904K, screw and 1 - 124934, nut)

2шт.

4

661656R1

SEAL, center cross oil

8шт.

5

BEARING, center cross (For service order 1 - 659262R91, cross assy)

8шт.

6

661657R1

RING

center cross bearing snap

8шт.

7

CROSS, center (For service order 1 - 659262R91, cross assy)

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 65º, 1/8" NPT x 7/8" lg

2шт.

8

659262R91

U-JOINT SPIDER

CROSS ASSY, center cross, Composed of:

2шт.

CROSS

1шт.

BEARING

4шт.

661656R1

SEAL

4шт.

661657R1

RING

4шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 65º, 1/8" NPT x 7/8" lg

1шт.

9

599641R1

YOKE AND BAR, universal

1шт.

10

599642R1

YOKE AND TUBE, universal

1шт.

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

1/4"-NF LUB-FITTING

1шт.

11

599647R1

RING

shield support

1шт.

12

599645R1

SHIELD

bell (Inner)

1шт.

13

599643R1

SHIELD

inner

1шт.

14

599644R1

SHIELD

outer

1шт.

15

599646R1

SHIELD

bell (Outer)

1шт.

16

825004C91

JOINT HALF, universal, Composed of:

1шт.

599641R1

YOKE & BAR

1шт.

599643R1

SHIELD

1шт.

599645R1

SHIELD

1шт.

659262R91

U-JOINT SPIDER

CROSS ASSY

1шт.

596246R11

YOKE ASSY

1шт.

17

825005C91

JOINT HALF, universal, Composed of:

1шт.

599642R1

YOKE & TUBE

1шт.

599644R1

SHIELD

1шт.

599646R1

SHIELD

1шт.

599647R1

RING

1шт.

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING

1шт.

659262R91

U-JOINT SPIDER

CROSS ASSY

1шт.

596246R11

YOKE ASSY

1шт.
