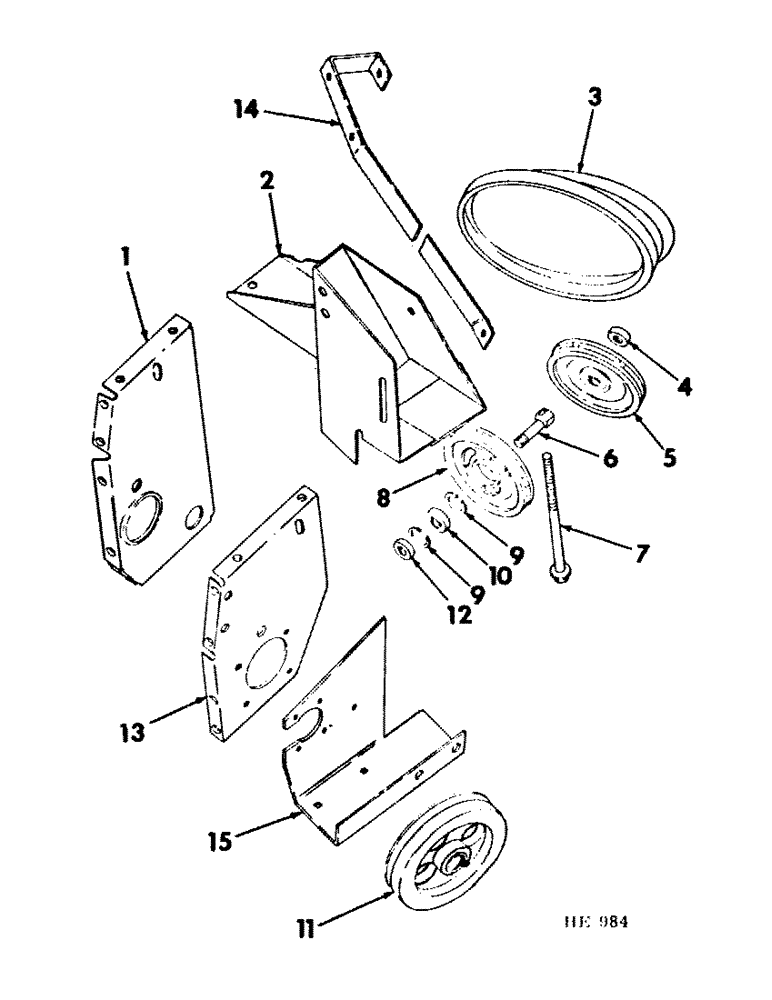

Запчасти Case IH 225 (Q-18) - PLATFORM, BALANCED KNIFE DRIVE HOUSING AND DRIVE Platforms

1

595762R11

SUPPORT

knife drive housing front

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

3шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT

1шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

2

599352R1

BRACKET, knife drive pulley

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

3

599355R1

V-BELT,0.88" W

Knife drive 0.88" W

1шт.

4

595757R1

SPACER, idler pulley

1шт.

5

599356R91

PULLEY ASSY.

PULLEY, knife drive belt idler

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 X 2" BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

595758R2

BOLT

STUD, tightener pulley

1шт.

20601R1

WASHER

17/32 X 1-1/4 X 11 GA WASHER

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

599357R1

BOLT, adjusting

1шт.

8

599864R1

PULLEY, knife drive belt tightener

1шт.

9

133213R1

SNAP RING,1.562", Int, #156

Ring, Snap, , brg 1.562", Int, #156

2шт.

10

611928R91

BALL BEARING,13 mm ID x 40 mm OD x 18 mm

pulley

1шт.

11

PULLEY, balance knife drive (For service parts refer to "knife drive flywheel crank")

1шт.

12

599865R1

SPACER, tightener pulley

1шт.

13

595765R21

SUPPORT

knife drive housing rear

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

599354R1

BRACE, knife drive pulley bracket

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

3шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

15

599350R1

SUPPORT, knife drive

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

2шт.

609120R1

BOLT,Short NK, 7/16"-14 x 1 1/8", G5. Full Th

7/16 X 1-1/8" CRG BOLT

2шт.

20803R1

WASHER

13/32 X 1 X 11 GA WASHER

1шт.

NLS

NO LONGER SERVICED

7/16" NUT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.
