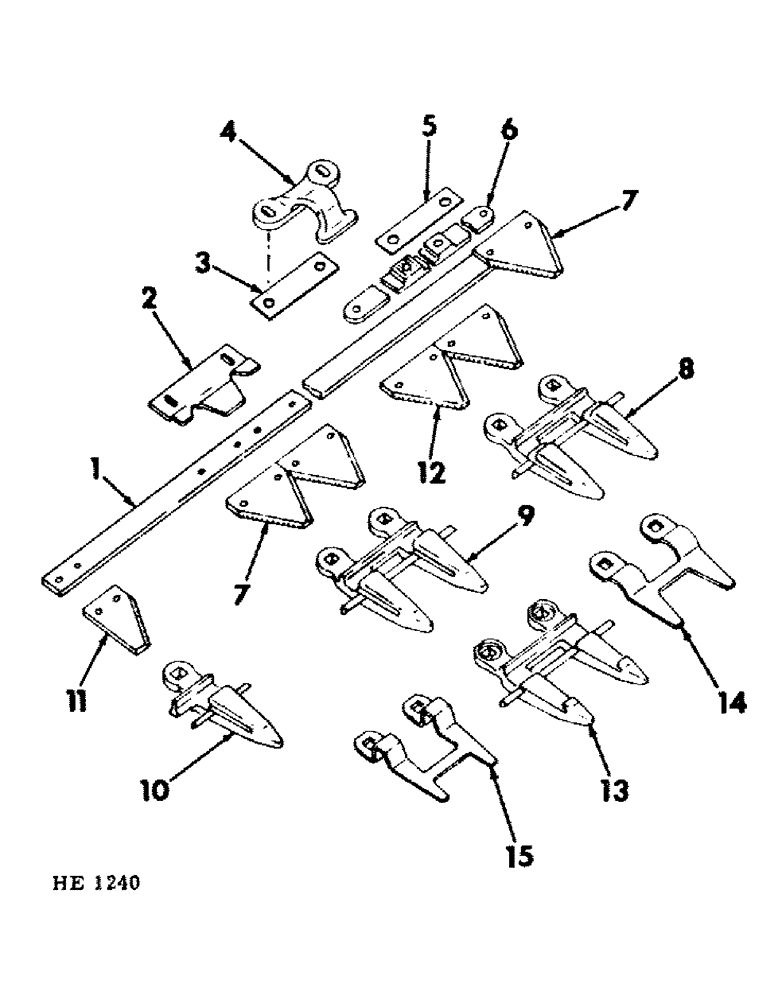

Запчасти Case IH 225 (Q-16) - PLATFORM, KNIFE Platforms

1

595649R92

KNIFE

ASSY, 10 ft platform cr-pltd under-serrated section, Composed of:

1шт.

823710C1

HEAD (CYLINDER)

END

1шт.

BAR

1шт.

595658R1

KNIFE SECTION

SECTION

1шт.

23711C1

SECTION

6шт.

457607R1

KNIFE SECTION

SECTION

35шт.

104086

RIVET,But Hd, 1/4" x 1 1/8"

2шт.

87013867

RIVET,But Hd, 1/4" x 1"

10шт.

12712R1

RIVET

2шт.

21294R1

RIVET,Oval Hd, .22" x 9/16"

70шт.

2

613842R2

GUIDE

HOLDER, knife

9шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

7/16 X 1-9/16" NO. 3 PLOW BOLT

18шт.

271501

SOCKET

7/16" NUT

18шт.

3

595213R1

STRIP

SHIM, knife high arch holder

24шт.

4

595648R1

GUIDE

HOLDER, knife high arch

2шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

7/16 X 2" TYPE 1 CRG BOLT

1шт.

592723R1

BOLT (SPREADER),#3, 7/16" - 14 x 1 21/32"

7/16 X 1-21/32" NO. 3 PLOW BOLT

3шт.

NLS

NO LONGER SERVICED

7/16" NUT

4шт.

5

595755R1

LOCKING PLATE

drive joint bolt lock

1шт.

6

823710C1

HEAD (CYLINDER)

END, knife joint

1шт.

87013867

RIVET,But Hd, 1/4" x 1"

1/4 X 1" SMALL B-HD RIVET

10шт.

104086

RIVET,But Hd, 1/4" x 1 1/8"

1/4 X 1-1/8" SMALL B-HD RIVET

2шт.

12712R1

RIVET

1/2 X 15/16" SMALL OVAL HD RIVET

2шт.

7

457607R1

KNIFE SECTION

SECTION, knife cr-pltd underserrated

35шт.

21294R1

RIVET,Oval Hd, .22" x 9/16"

#5 X 9/16" SMALL OVAL HD RIVET

70шт.

12712R1

RIVET

#5 X 1/2 X 5/16" SMALL OVAL HD RIVET

2шт.

8

613839R1

GUARD

knife double LH end

4шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

7/16 X 2" TYPE 1 CRG BOLT

1шт.

592723R1

BOLT (SPREADER),#3, 7/16" - 14 x 1 21/32"

7/16 X 1-21/32 NO. 3 PLOW BOLT

3шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

7/16 X 1-9/16 NO. 3 PLOW BOLT

4шт.

271501

SOCKET

7/16" NUT

8шт.

9

613838R1

GUARD

knife double

16шт.

592722R1

BOLT,7/16"-14 x 1 5/16", G5

7/16 X 1-5/16" #3 PLOW BOLT

14шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

7/16 X 1-9/16" NO. 3 PLOW BOLT

4шт.

NLS

NO LONGER SERVICED

7/16" NUT

18шт.

10

613840R1

GUARD

knife angle RH end (Opt w/613841R1, guard)

1шт.

10

613841R1

GUARD

knife single RH end (Opt w/613840R1, guard)

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

7/16 X 1-1/2" TYPE 1 CRG BOLT

1шт.

271501

SOCKET

7/16" NUT

1шт.

11

595658R1

KNIFE SECTION

SECTION, knife cr-plated smooth RH half

1шт.

21294R1

RIVET,Oval Hd, .22" x 9/16"

#5 X 9/16" SMALL OVAL-HD RIVET

2шт.

13

823025C1

GUARD

tie (For use in stony ground conditions)

16шт.

168930C1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16 X 1-1/2" CRG BOLT

32шт.

NLS

NO LONGER SERVICED

7/16" NUT

32шт.

14

823026C1

PLATE

guard tie (For use in stony ground conditions)

15шт.

15

823027C1

PLATE, guard high arch tie (For use in stony ground conditions)

1шт.

168930C1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16 X 1-1/2" CRG BOLT

2шт.

271501

SOCKET

7/16" NUT

2шт.
