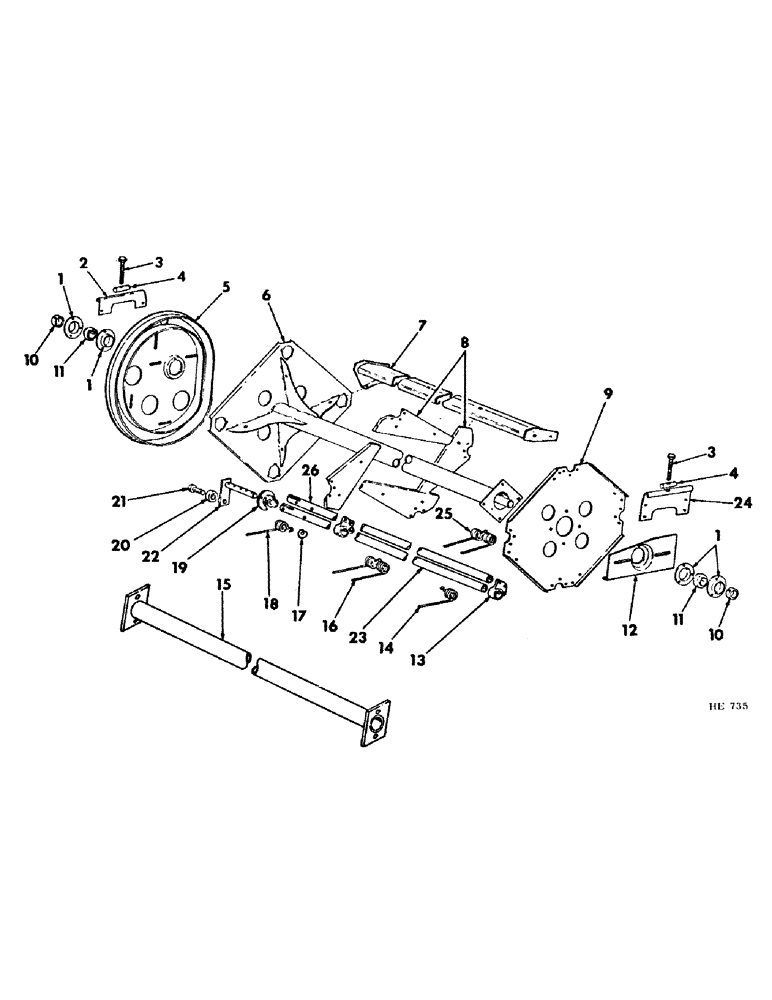

Запчасти Case IH 225 (Q-14) - PLATFORM, PICK-UP REEL, LOW PROFILE Platforms

1

617863R1

FLANGED BEARING

RETAINER, reel tube bearing

4шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

6шт.

595848R1

NUT

3/8" LK-NUT

6шт.

2

598037R1

PLATE, adjusting RH

1шт.

3

599424R1

BOLT,Hex, 7/16" - 14 x 4.25", Gr 2

7/16 x 4-1/2" reel adj

2шт.

21763R1

WASHER

15/32 X 3/4 X 11 GA WASHER

1шт.

4

596013R1

BAR, adjusting plate

2шт.

5

599401R1

TRACK, reel cam roller

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

5шт.

271501

SOCKET

7/16" NUT

5шт.

893862R1

WASHER

15/32 X 1-1/4 X 11 GA WASHER

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

5шт.

6

599394R2

TUBE, platform pick-up reel 114.93, 8.54" Length

1шт.

7

599409R1

BAT, platform reel

4шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 X 5/8" BOLT

16шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

8шт.

595848R1

NUT

3/8" LK-NUT

24шт.

8

599407R1

SUPPORT

reel intermediate

8шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 X 5/8" BOLT

8шт.

595848R1

NUT

3/8" LK-NUT

8шт.

9

599408R1

SUPPORT, reel end LH

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

4шт.

595848R1

NUT

3/8" LK-NUT

4шт.

10

557113R11

COLLAR

W/SCREW, reel tube bearing locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8" HDLS CUP-PT SET SCREW

2шт.

11

256557R91

BEARING

pick-up reel tube

2шт.

12

595849R2

BRACKET, reel mounting LH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

NLS

NO LONGER SERVICED

7/16" NUT

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

13

595861R1

BEARING HOUSING,1.36" ID x 2" OD x 1.25"

pick-up finger tube

12шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1/4" LUB-FITTING (1 per bearing)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT (3 per bearing)

1шт.

595848R1

NUT

3/8" LK-NUT (1 per bolt)

1шт.

14

599422R1

FINGER

reel pick-up LH

2шт.

23458R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

20601R1

WASHER

13/32 X 1-1/4 X 11 GA WASHER

2шт.

595848R1

NUT

3/8" LK-NUT

2шт.

15

599425R1

BAR

platform lean

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

595873R1

FINGER

reel pick-up

52шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 X 2" BOLT

54шт.

23458R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

20248R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

3/8 X 2-1/4" TYPE 8 BOLT

6шт.

20803R1

WASHER

13/32 X 1 X 11 GA WASHER

8шт.

596934R1

NUT

5/16" LK-NUT

54шт.

595848R1

NUT

3/8" LK-NUT

8шт.

17

595876R1

COVER

RETAINER, pick-up finger

60шт.

18

599423R1

FINGER

reel pick-up (RH)

2шт.

180087

SPRING

5/16 X 2" BOLT

2шт.

596934R1

NUT

5/16" LK-NUT

2шт.

19

599415R91

BALL BEARING,1.069" ID x 4.4375" OD x 1.25"

reel cam follower arm

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

12шт.

20803R1

WASHER

13/32 X 1 X 11 GA WASHER

12шт.

595848R1

NUT

3/8" LK-NUT

12шт.

137303

COTTER PIN,1/4" x 2 1/4"

PIN, SPLIT (COTTER), 1/4" x 2 1/4"

4шт.

20

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

reel cam follower

1шт.

21

599420R1

BOLT,Hex, 5/8" - 11 x 1.50", Gr 2

cam follower bearing

4шт.

21796R1

WASHER

21/32 X 1 X 16 GA WASHER

4шт.

22

599416R1

ARM

reel cam follower

4шт.

23

599413R1

TUBE, platform pick-up finger #1 (Drilled hole 7/16" from slotted end)

2шт.

24

596012R1

PLATE, adjusting LH

1шт.

25

599421R1

FINGER, reel pick-up short (LH)

4шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 X 2" BOLT

4шт.

596934R1

NUT

5/16" LK-NUT

4шт.

26

599414R1

TUBE, platform pick-up finger #2 (Drilled hole 2" from slotted end)

2шт.
