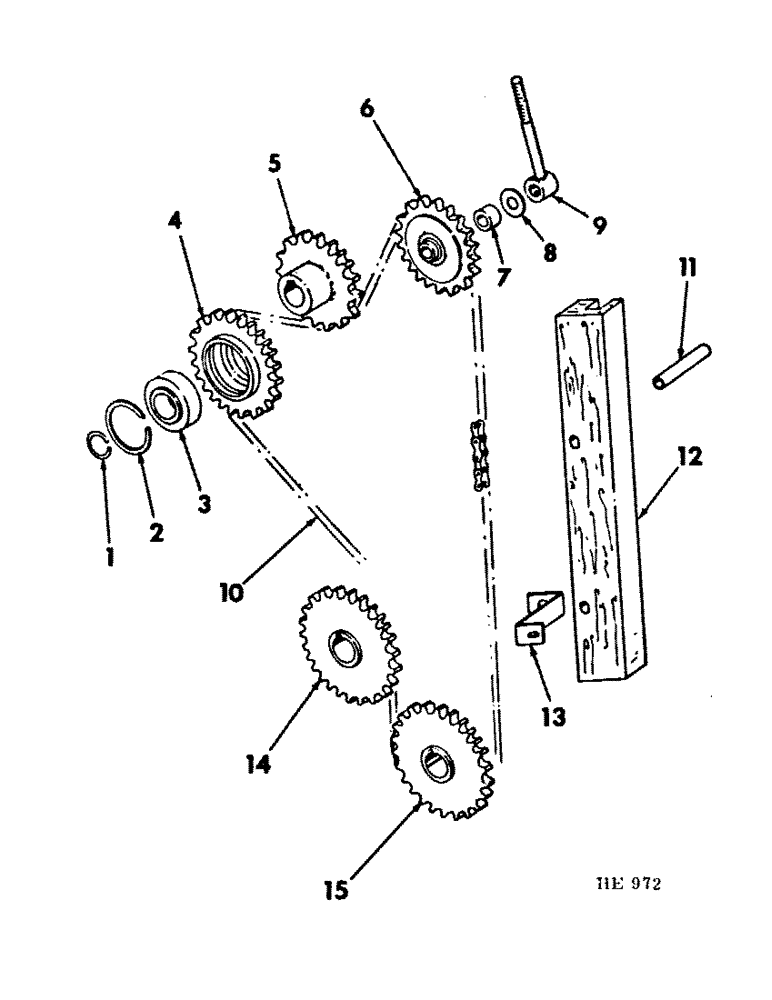

Запчасти Case IH 225 (Q-13) - PLATFORM, CONDITIONER DRIVE, LEFT HAND Platforms

1

26540D

RING, SNAP

RING, idler sprocket bearing outer retaining

1шт.

2

512889R1

RING

idler sprocket bearing inner retaining

1шт.

3

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, idler sprocket (Opt to use 608697R91, bearing)

1шт.

3

608697R91

BALL BEARING,1.378" ID x 2.8346" OD x 0.9892"

idler sprocket (Opt to use 584148R91, bearing)

1шт.

4

593323R11

SPROCKET ASSY.

SPROCKET, drive chain idler

1шт.

5

SPROCKET, drive (For service parts, refer to "platform drive and shield")

1шт.

6

607345R11

SPROCKET ASSY.

SPROCKET, drive chain tightener

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8 X 2-1/2" BOLT

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

137862R1

SPACER, tightener sprocket

1шт.

8

21782R1

WASHER

21/32 x 1-1/2 x 16 ga tightener bolt

1шт.

9

599489R1

BOLT, tightener sprocket adjusting

1шт.

NLS

NO LONGER SERVICED

7/16" NUT

2шт.

10

599487R91

CHAIN, conditioner drive

1шт.

11

14233L

SPACER,3/8" Pipe x 2 7/8"

chain guide

1шт.

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

3/8 X 5" BOLT

1шт.

20803R1

WASHER

13/32 X 1 X 11 GA WASHER

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

825191C1

GUIDE, conditioner drive chain

1шт.

13

825192C1

SUPPORT, drive chain guide

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 X 2-1/4" BOLT

1шт.

20803R1

WASHER

13/32 X 1 X 11 GA WASHER

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

SPROCKET, upper conditioner drive (For service refer to "upper conditioner roll")

1шт.

15

SPROCKET, lower conditioner drive (For service refer to "lower conditioner roll")

1шт.
