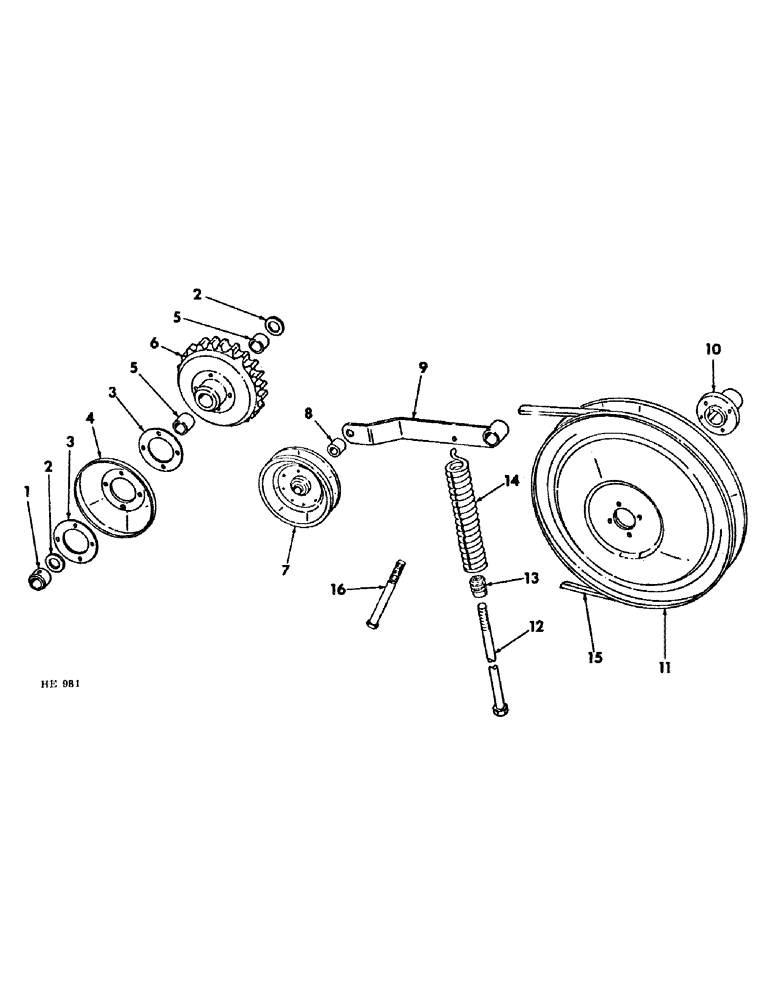

Запчасти Case IH 225 (Q-12) - PLATFORM, REEL DRIVE, RIGHT HAND Platforms

1

597950R1

COLLAR

reel drive pulley locking

1шт.

NLS

NO LONGER SERVICED

5/16 x 1/2" sq-hd cup-pt set screw

1шт.

2

608700R1

WASHER

1-9/32 x 2 x 16 ga

3шт.

3

609776R1

RETAINER, reel drive pulley spacer

6шт.

4

609727R3

PULLEY

reel drive half

1шт.

5

597980R1

BUSHING,32.26mm ID x 38.2mm OD x 25.4mm L

reel drive gear

2шт.

6

597979R11

GEAR WHEEL

GEAR ASSY, reel drive (Includes 2 - 597980R1, bushing)

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

3/8 X 1-1/2" CRG BOLT

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

564745R91

PULLEY

reel drive belt tightener

1шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8 X 2-1/2" BOLT

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

607346R1

SPACER, reel drive belt tightener pulley

1шт.

9

595783R21

ARM

reel drive belt tightener pulley

1шт.

NLS

NO LONGER SERVICED

5/16" - NF 65 DEGREE LUB-FITTING

1шт.

614451R1

WASHER

1-1/32 X 1-3/4 X 11 GA WASHER

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

10

597986R1

HUB

reel driven pulley

1шт.

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 X 2-1/4" GIB-HD KEY

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" BOLT

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

597985R2

PULLEY

reel driven

1шт.

12

599430R1

BOLT, 3/8 x 10" spring adjusting

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

13

599429R1

PLUG, spring

1шт.

14

PO192

SPRING, tightener pulley arm

1шт.

15

599428R1

V-BELT,0.88" W

Reel drive 0.88" W

1шт.

16

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5" reel driven belt guide

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2" JAM NUT

1шт.
