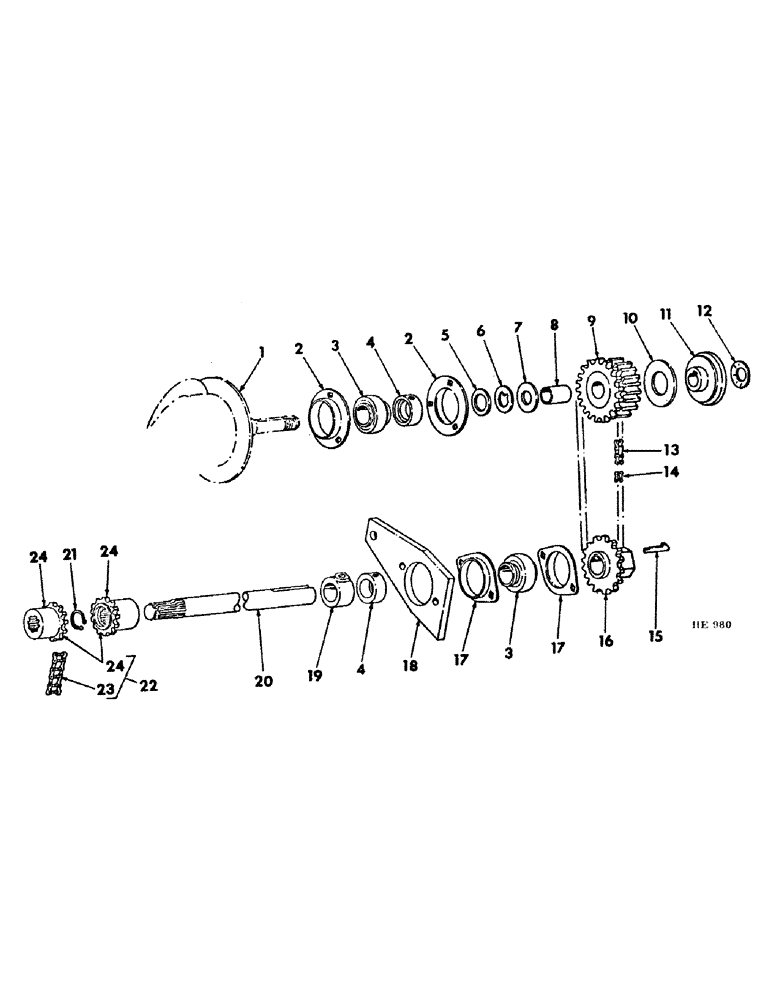

Запчасти Case IH 225 (Q-10) - PLATFORM, AUGER DRIVE, RIGHT HAND Platforms

1

AUGER, platform (For service parts refer to "auger and supports")

1шт.

2

617863R1

FLANGED BEARING

RETAINER, auger shaft bearing RH

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

3

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

auger and drive shaft

2шт.

4

455104R11

COLLAR

W/SCREW, bearing locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8" HDLS CUP-PT SET SCREW

2шт.

5

608700R1

WASHER

driven sprocket

1шт.

6

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

drive sprocket

1шт.

7

599390R1

WASHER

reel drive bearing thrust

1шт.

8

10455R

BUSHING, gear and sprocket

1шт.

9

599391R1

GEAR ASSY, auger driven sprocket and reel drive (Includes 1 - 10455R bushing)

1шт.

10

599388R1

FACING

auger slip clutch

1шт.

11

599387R1

HUB, auger slip clutch

1шт.

235

KEY,1/4" Sq x 1/2", Par

1/4 X 1/2" SQ KEY

1шт.

12

599389R1

WASHER

auger slip clutch spring

1шт.

13

CHAIN ASSY, 5/8" pitch standard auger drive (For service parts order 1 - 1791-D 10 ft. chain reduce to 55 links and add 1 - 1310-D, connecting link)

1шт.

14

1310D

LINK

drive chain connecting

1шт.

15

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

3/8 x 1-3/4" sq-gib hd

1шт.

16

599383R1

SPROCKET, auger drive

1шт.

17

599382R1

FLANGED BEARING

RETAINER, auger drive shaft bearing

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

3/8 X 1-1/4" CRG BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18

599381R1

BAR, auger drive shaft outer support

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

1шт.

178374R1

WASHER

17/32 X 1-1/4 X 16 GA WASHER

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

19

603039R1

COLLAR, auger drive shaft locking

1шт.

102604

SET SCREW,Hex Skt, 7/16" - 14 x 1/2"

2шт.

20

599380R1

SHAFT, auger drive

1шт.

21

313675R1

RING, SNAP,#106, Ext

coupling #106, Ext

1шт.

22

611978R91

COUPLING, auger drive shaft, Composed of:

1шт.

611979R91

CHAIN (AG)

CHAIN

1шт.

611980R1

PINION

SPROCKET

2шт.

23

611979R91

CHAIN (AG)

CHAIN, auger drive shaft

1шт.

24

611980R1

PINION

SPROCKET, coupling 14T

2шт.
