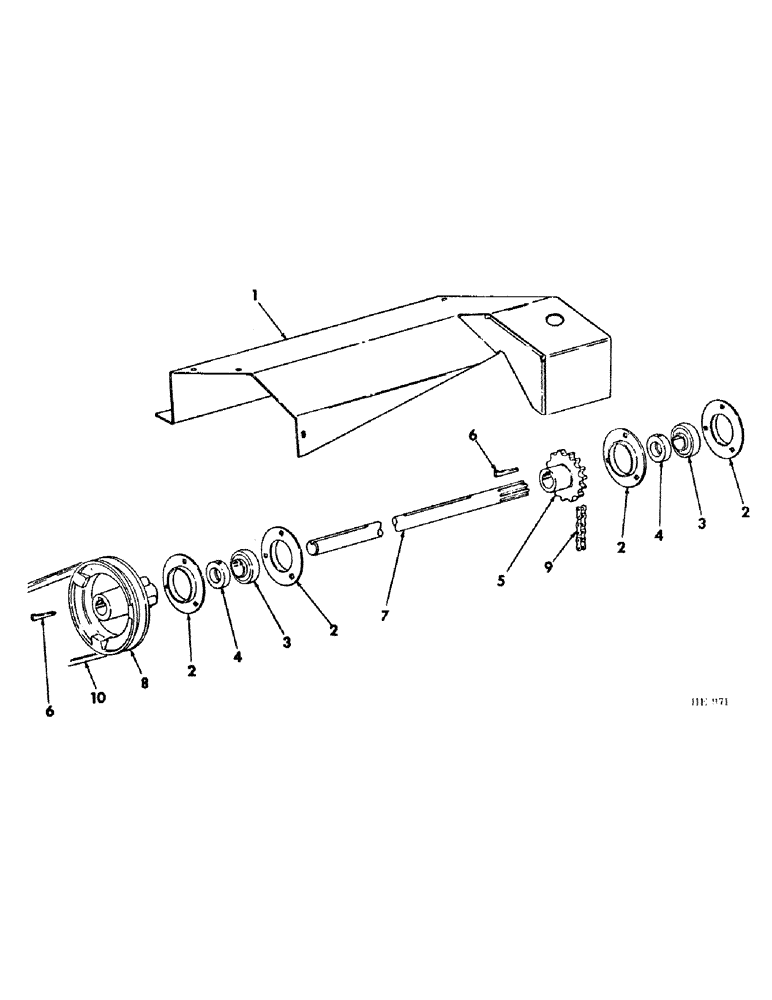

Запчасти Case IH 225 (Q-09) - PLATFORM, MAIN PLATFORM DRIVE AND SHIELD Platforms

1

599444R1

SHIELD, drive shaft and conditioner drive sprocket

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 X 5/8" BOLT

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

3шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

5шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

617863R1

FLANGED BEARING

RETAINER, main drive shaft bearing

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

3

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

main drive shaft inner and outer

2шт.

4

455104R11

COLLAR

W/SCREW, main drive shaft bearing locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8" HDLS CUP-PT SET SCREW

2шт.

5

823102C1

SPROCKET, conditioner drive

1шт.

6

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 sq gib-hd

2шт.

7

599442R1

SHAFT, main drive

1шт.

8

596147R1

PULLEY, knife drive

1шт.

9

CHAIN, conditioner drive (For service parts refer to "conditioner drive")

1шт.

10

599355R1

V-BELT,0.88" W

Knife drive 0.88" W

1шт.
