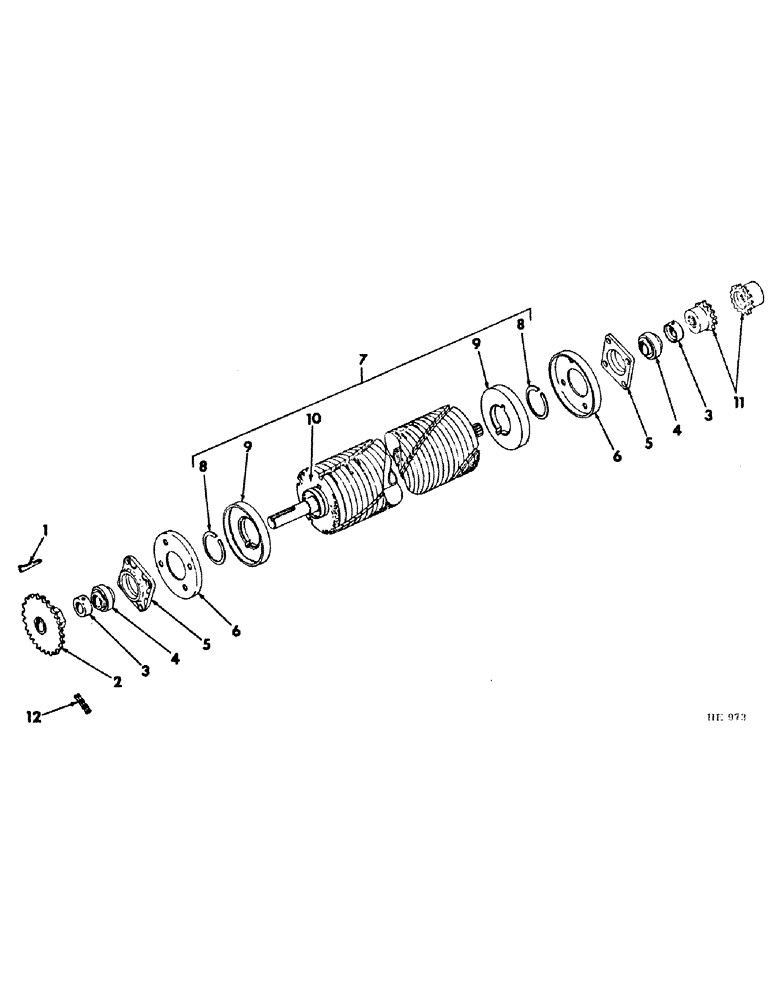

Запчасти Case IH 225 (Q-07) - PLATFORM, LOWER CONDITIONER ROLL Platforms

1

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" sq-gib-hd

1шт.

2

599488R1

SPROCKET ASSY.

SPROCKET, conditioner roll drive

1шт.

3

517645R11

COLLAR

W/SCREW, lower roll bearing locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8" HDLS CUP-PT SET SCREW

2шт.

4

611583R91

BALL BEARING

BEARING, lower roll bearing

2шт.

5

599484R1

HOUSING, lower roll bearing

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

6

607333R11

SHROUD, lower roll

2шт.

7

599475R91

ROLL ASSY, conditioner lower rubber, Composed of:

1шт.

598318R1

RING, SNAP

RING

2шт.

598317R1

CAP

2шт.

598316R1

DISC

DISK

145шт.

8

598318R1

RING, SNAP

RING, cap retaining

2шт.

9

598317R1

CAP

roller end

2шт.

10

598316R1

DISC

DISK, conditioner rubber, Serial Range: 139-145

1шт.

11

SPROCKET, coupling 14T (For service parts refer to "auger drive")

1шт.

12

CHAIN, conditioner drive (For service parts refer to "conditioner drive")

1шт.
