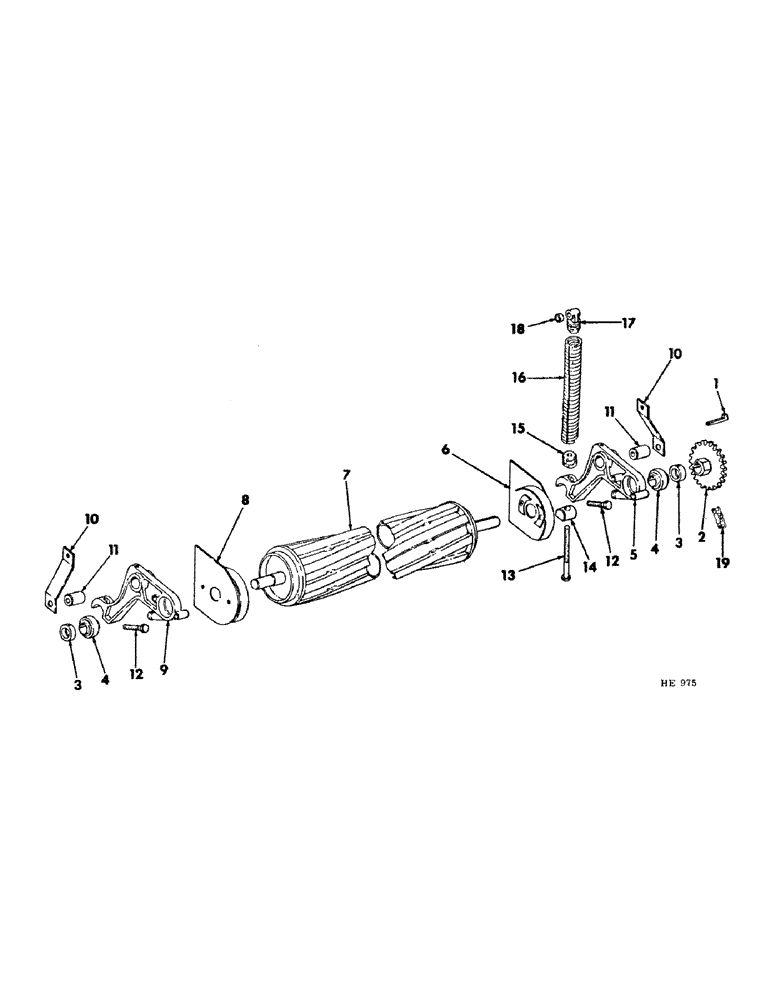

Запчасти Case IH 225 (Q-06) - PLATFORM, UPPER CONDITIONER ROLL Platforms

1

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 1-1/2" sq gib-hd

1шт.

2

599488R1

SPROCKET ASSY.

SPROCKET, conditioner roll drive

1шт.

3

517645R11

COLLAR

W/SCREW, upper roll bearing locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8" HDLS CUP-PT SET SCREW

2шт.

4

611583R91

BALL BEARING

BEARING, upper roll bearing

2шт.

5

599481R1

HOUSING, upper roll bearing LH

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8-90 DEGREE ELBOW LUB-FITTING

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 X 2" BOLT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

599476R1

SHROUD, upper roll LH

1шт.

7

599472R1

ROLL, conditioner steel bar upper

1шт.

8

599477R1

SHROUD, upper roll RH

1шт.

9

599482R1

HOUSING, upper roll bearing RH

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8-90 DEGREE ELBOW LUB-FITTING

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 X 2" BOLT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

599483R1

BRACE, upper roll bearing housing

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT

2шт.

608337R1

CARRIAGE BOLT,5/8" - 11 x 3", Grade 5

5/8 X 3" CRG BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

599063R1

BUSHING, upper roll bearing housing pivot

2шт.

12

593295R1

BOLT

conditioner roll stop

2шт.

21434R1

NUT,5/8"-11, G8

5/8" NUT

2шт.

13

599486R1

BOLT, roll pressure pivot bar

2шт.

124847

COLLAR

5/8" JAM NUT

2шт.

14

599485R1

BAR, roll pressure spring pivot

2шт.

15

596192R1

PLUG

roll pressure spring lower

2шт.

16

596191R1

SPRING

roll pressure spring upper

2шт.

17

591544R1

PLUG

roll pressure spring upper

2шт.

Q1194

AXLE PIN,1/2" x 3"

1/2 X 3" STD-HD DLD PIN

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

18

222890R1

SPACER, spring upper plug

2шт.

19

CHAIN, conditioner drive (For service parts refer to "conditioner drive")

1шт.
