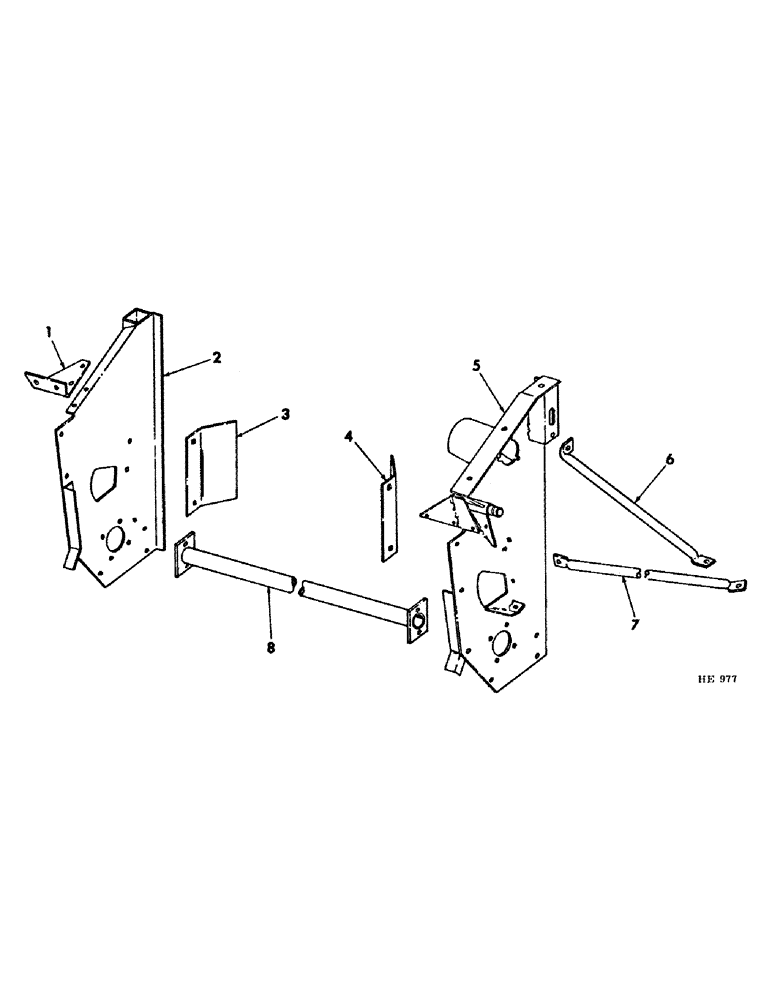

Запчасти Case IH 225 (Q-05) - PLATFORM, MAIN FRAME, CONDITIONER Platforms
№
Артикул
Название
Примечание
Количество
1
599469R1
SUPPORT, side RH upper
1шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
3/8 X 7/8" BOLT
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
2
599453R1
SIDE, main frame RH
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
3
599468R1
SHIELD, inner hay conditioner RH
1шт.
598809R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
3/8 X 3/4" CRG BOLT
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
4
599467R1
SHIELD, inner hay conditioner LH
1шт.
598809R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
3/8 X 3/4" CRG BOLT
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
5
599452R1
SIDE, main frame LH
1шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
3/8 X 7/8" BOLT
2шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
4шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
6
825196C1
BRACE, upper side LH
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 X 1" BOLT
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
7
599471R1
BRACE, side lower LH
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 X 1-1/4" BOLT
1шт.
180126
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
3/8 X 1-1/2" BOLT
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
8
599470R1
BRACE, side lower
1шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
3/8 X 7/8" BOLT
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
Выбрано товаров: 36
