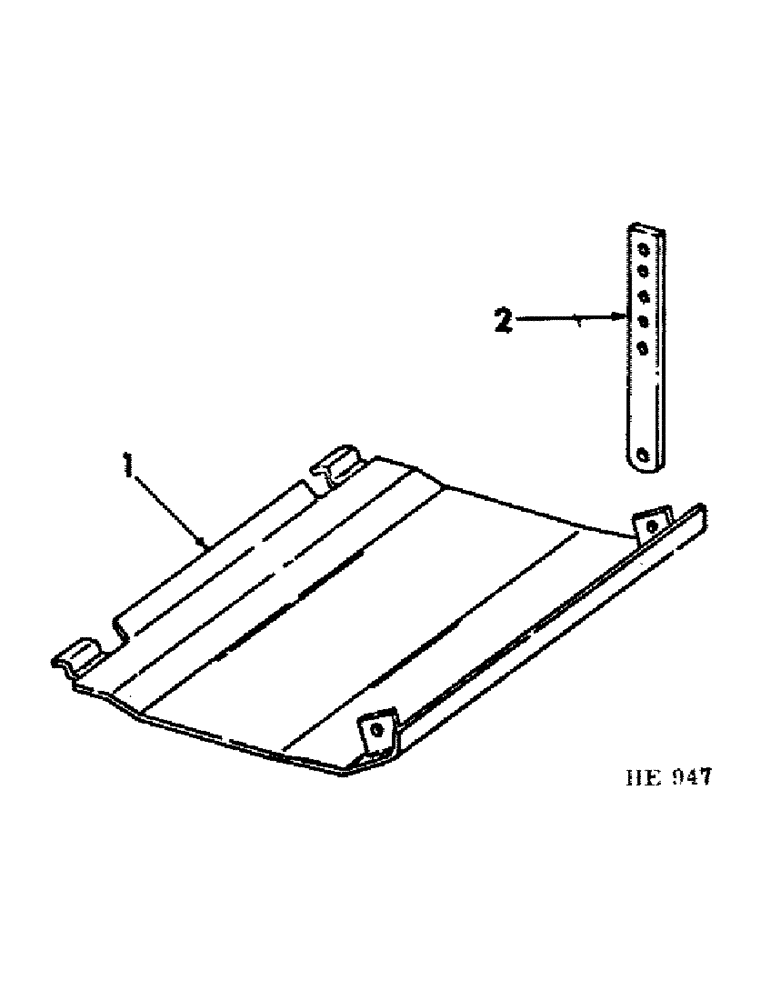

Запчасти Case IH 225 (Q-03) - PLATFORM, SKID SOLE Platforms

1

599447R1

SHOE

SOLE, skid

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 X 1-1/4" BOLT

4шт.

102378

1/2" NUT

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

599451R1

BAR, skid sole

4шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 X 1-3/4" BOLT

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.
