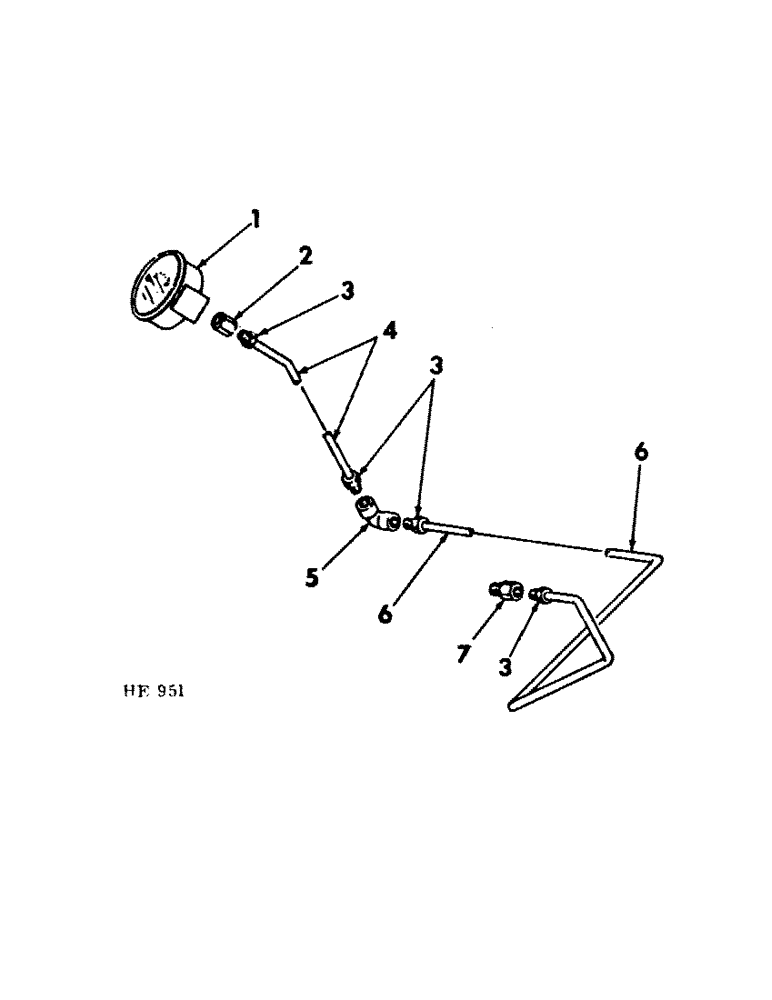

Запчасти Case IH 225 (H-7) - CONTROLS, ENGINE OIL PRESSURE SYSTEM Controls

1

362039R94

GAUGE

oil pressure (Opt with 393488R91, gauge)

1шт.

1

393488R91

SWITCH

GAUGE, oil pressure (Opt with 362039R94, gauge)

1шт.

2

257523R1

HYD CONNECTOR,1/8" NPT x 7/16" - 16 ORB

CONNECTOR, gauge

1шт.

3

222-502

TUBE NUT,7/16"-24

NUT, tube

4шт.

4

599942R1

TUBE, oil pressure gauge front 1" OD, 15.5, 1.4" Length

1шт.

5

255828R1

ELBOW, 90 degree tube

1шт.

6

599943R1

TUBE, oil pressure rear

1шт.

7

29901D

HYD CONNECTOR,1/8" NPT x 7/16"-24

CONNECTOR, tube to block

1шт.
