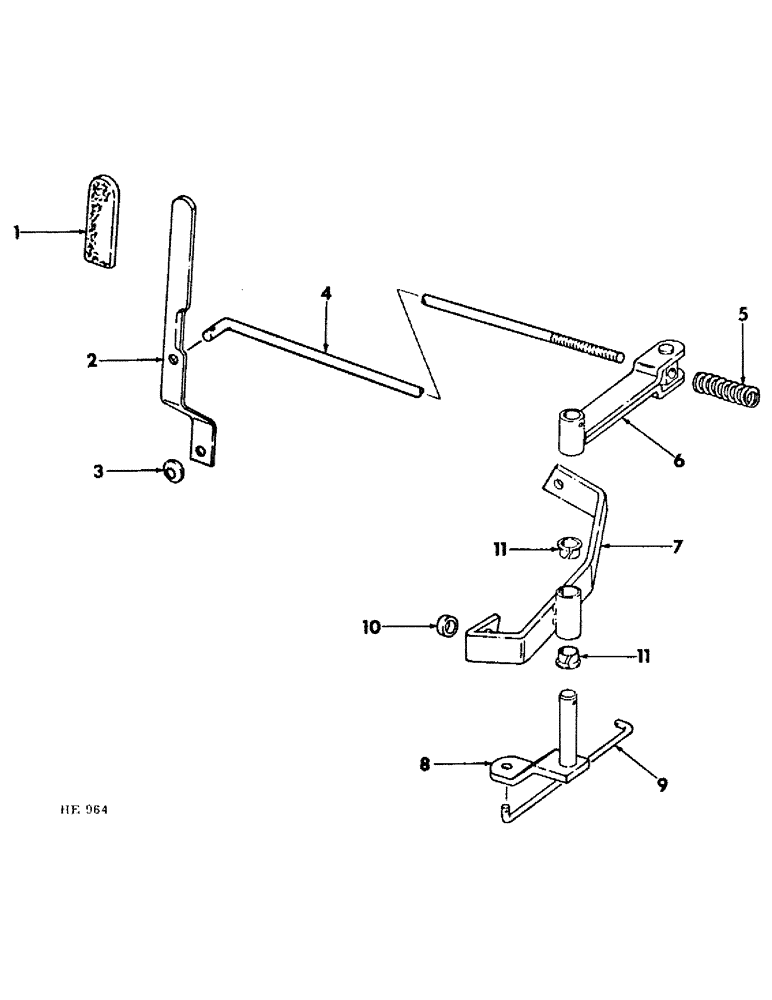

Запчасти Case IH 225 (H-5) - CONTROLS, ENGINE THROTTLE CONTROLS Controls

1

610848R1

GRIP, throttle control handle

1шт.

2

599231R2

HANDLE, throttle control

1шт.

598797R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

1/4 X 1-1/4" CRG BOLT

1шт.

20600R1

WASHER

9/32 X 3/4 X 11 GA WASHER

1шт.

21549R1

WASHER

9/32 X 3/4 X 18 GA WASHER

2шт.

469668R1

WASHER

13/32 X 3/4 X 16 GA WASHER

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

3

611555R1

WASHER

spring

1шт.

4

599917R1

ROD, throttle control

1шт.

619855R1

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.

120368

NUT,5/16"-24, G5

4шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

596322R1

SPRING, throttle control rod

1шт.

6

599918R1

LEVER, throttle control upper

1шт.

7

599921R1

SUPPORT, throttle control

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

599923R1

LEVER, throttle control lower

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

9

825250C1

ROD, governor control

1шт.

21549R1

WASHER

9/32 X 3/4 X 18 GA WASHER

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

10

600192R1

SPACER

support mounting

1шт.

11

292883C1

BUSHING, throttle

2шт.
