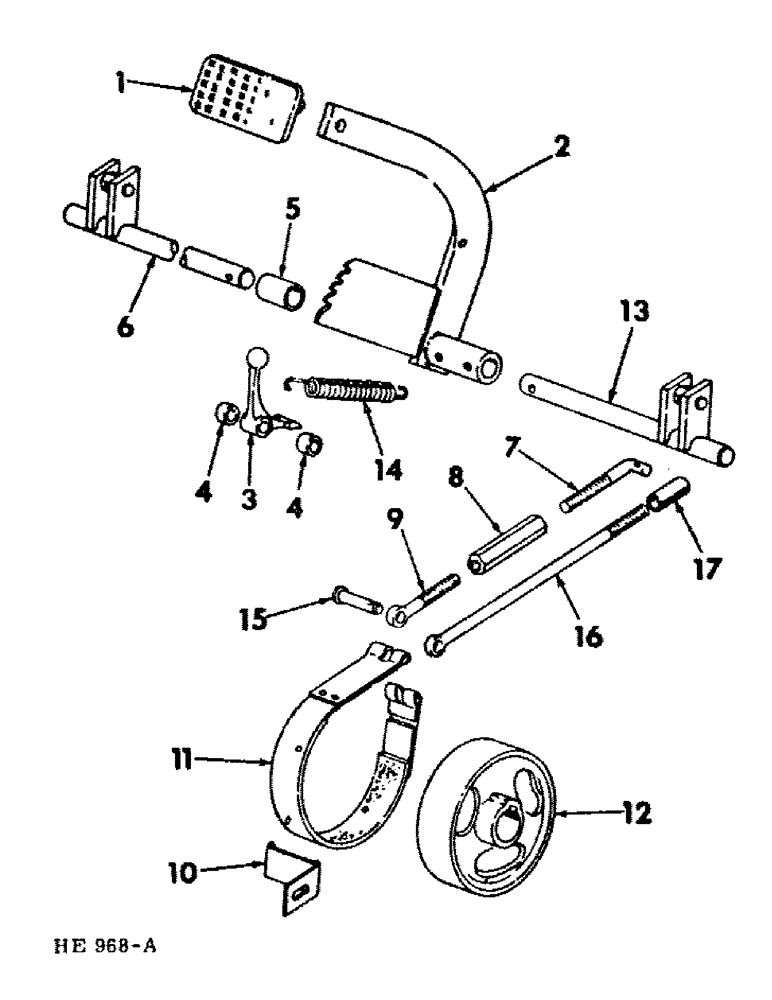

Запчасти Case IH 225 (H-2) - CONTROLS, BRAKES AND CONTROLS Controls

1

599000R1

PAD, brake pedal

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

599001R1

ARM, brake pedal

1шт.

19790R1

PIN,5/16" x 1 1/4", Coiled

2шт.

3

611693R2

PAWL, brake pedal lock

1шт.

PG141

PIN

1/2 X 2" STD-HD-DLD PIN

1шт.

4

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

pawl

2шт.

5

599010R1

SPACER, clutch rockshaft

1шт.

6

ROCKSHAFT, brake LH (Prior to serial no. 805 order 1 - 823006C1, rockshaft, 1 - 596380R1, bolt; 2 - 120377, nut and 1 - 86313R1, spacer)

1шт.

6

823006C1

ROCKSHAFT, brake LH (Serial no. 805 and since)

1шт.

7

599012R2

ROD, brake band adjusting (Prior to serial no. 805)

2шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

8

613596R1

TURNBUCKLE, brake band (Prior to serial no. 805)

2шт.

9

599011R1

BOLT, brake adjusting eye (Prior to serial no. 805)

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

10

599017R1

GUIDE, brake band

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

4шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

599013R91

BAND

ASSY, brake (For service parts refer to "brake band")

2шт.

12

599016R1

HUB, brake

2шт.

117977

WOODRUFF KEY

5/16 X 1" WOODRUFF KEY

2шт.

13

ROCKSHAFT, brake RH (Prior to serial no. 805 order 1 - 823007C1, rockshaft, 1 - 596380R1, bolt; 2 - 120377, nut and 1 - 86313R1, spacer)

1шт.

13

823007C1

ROCKSHAFT, brake RH (Serial no. 805 and since)

1шт.

14

510029R1

SPRING

pedal return

1шт.

18083

5/16 X 1-1/2" BOLT

1шт.

120376

NUT,5/16"-18, G5

2шт.

15

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1-25/32 rod end

4шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

4шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

Q.A. C-PIN

4шт.

16

596380R1

BOLT, brake adjusting (Serial no. 805 and since)

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

17

86313R1

SPACER,3/8" X-Strng Pipe x 1 3/8"

adjusting bolt (Serial no. 805 and since)

2шт.
