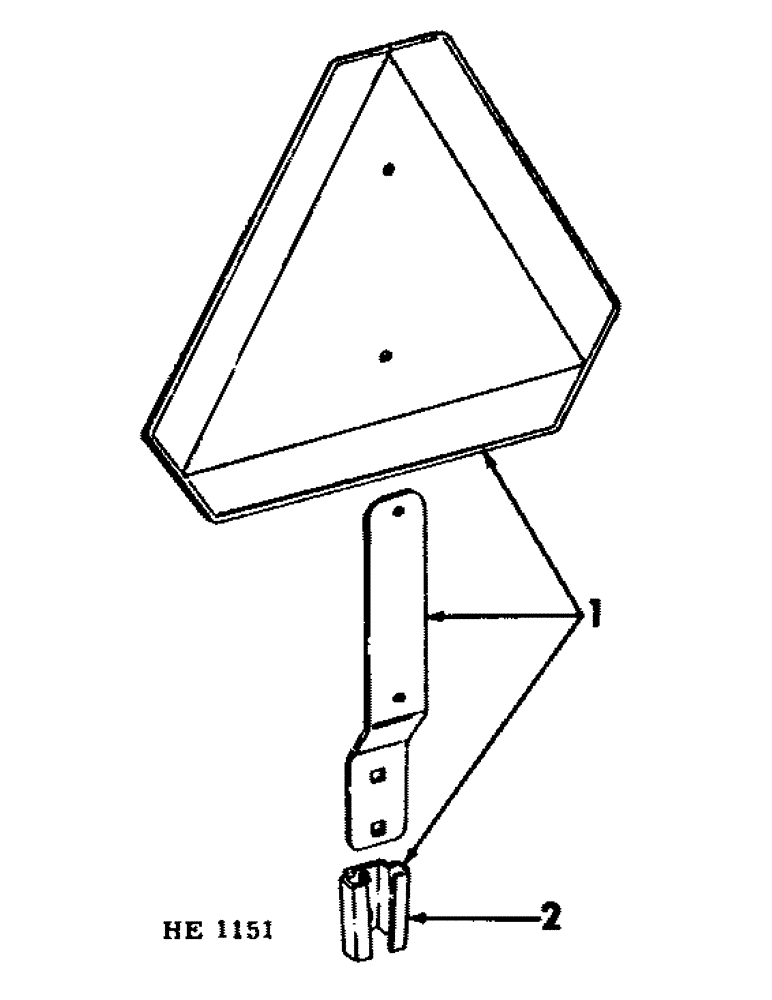

Запчасти Case IH 225 (A-9) - CHASSIS, RADIATOR AND SHEET METAL, S.M.V. EMBLEM Chassis, Radiator & Sheet Metal

1

407220R1

PRODUCT GRAPHIC

PACKAGE, S.M.V. emblem-steel

1шт.

1

407218R1

PACKAGE

S.M.V. emblem-aluminum, Composed of

1шт.

SHIELD

1шт.

SUPPORT

1шт.

398976R1

BRACKET

1шт.

2

398976R1

BRACKET

S.M.V. mounting (Not used in this application)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
