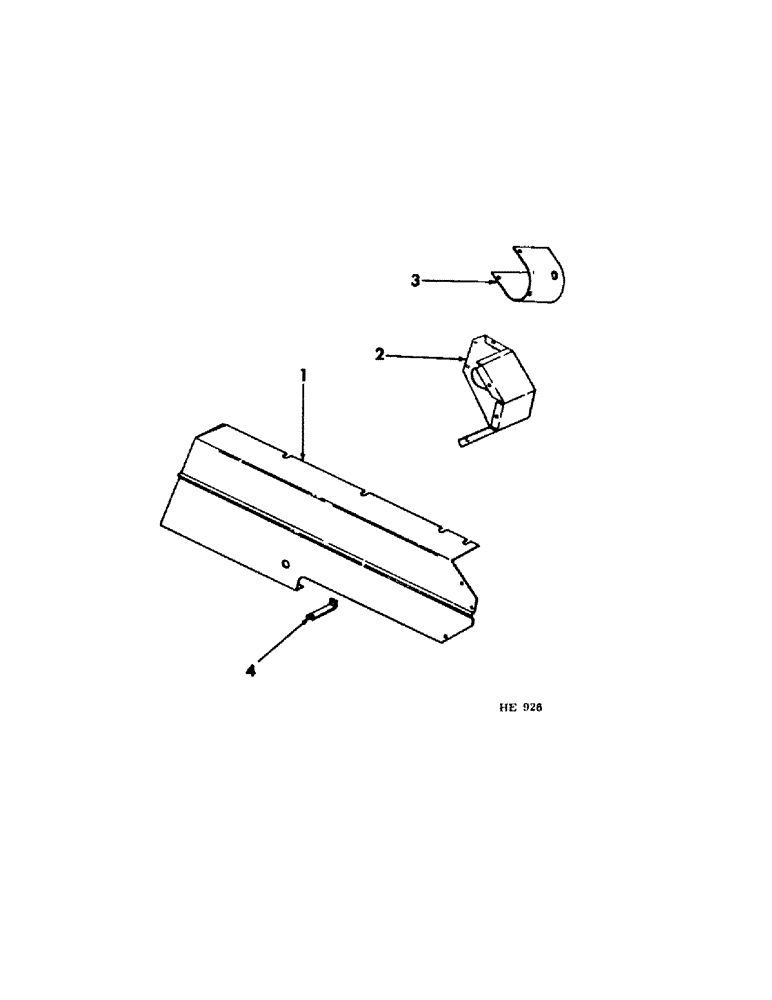

Запчасти Case IH 225 (A-8[A]) - CHASSIS, RADIATOR AND SHEET METAL, CHASSIS PLATFORM DRIVE SHIELD, RIGHT HAND Chassis, Radiator & Sheet Metal

1

599149R2

SHIELD, platform secondary

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

3шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

1шт.

134238R1

WASHER

11/32 X 1 X 16 GA WASHER

3шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

599153R1

SHIELD, secondary drive front

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4 x 1/2" bolt

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" BOLT

1шт.

21801R1

WASHER

9/32 X 3/4 X 16 GA WASHER

4шт.

21375R1

WASHER

17/32 X 1-1/4 X 7 GA WASHER

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

599156R1

SHIELD, universal joint

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

599152R1

SUPPORT, shield intermediate

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 X 5/8" BOLT

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
