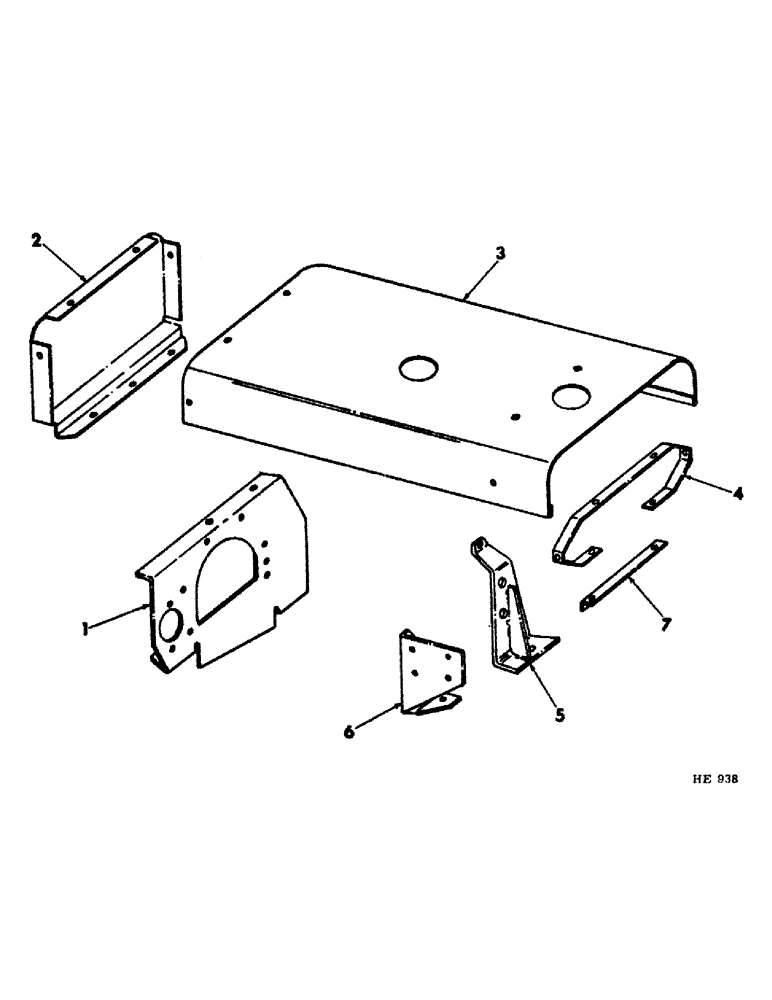

Запчасти Case IH 225 (A-7) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE HOOD AND SUPPORTS Chassis, Radiator & Sheet Metal

1

599870R1

SUPPORT, engine LH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 X 1-1/4" TYPE 8 BOLT

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 X 1-3/4" BOLT

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

599931R2

SUPPORT, hood LH

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" BOLT

3шт.

120376

NUT,5/16"-18, G5

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

3

599935R1

HOOD, engine

1шт.

4

599932R1

SUPPORT, hood RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" BOLT

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

599871R1

SUPPORT, engine RH front

1шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8 X 2-1/4" BOLT

2шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 X 1-1/4" TYPE 8 BOLT

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

599874R1

SUPPORT, engine RH rear

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 X 1-1/4" TYPE 8 BOLT

1шт.

NLS

NO LONGER SERVICED

5/8 X 2-3/4" BOLT

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8 X 2-3/4" BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

595467R1

ANGLE, engine hood support

1шт.
