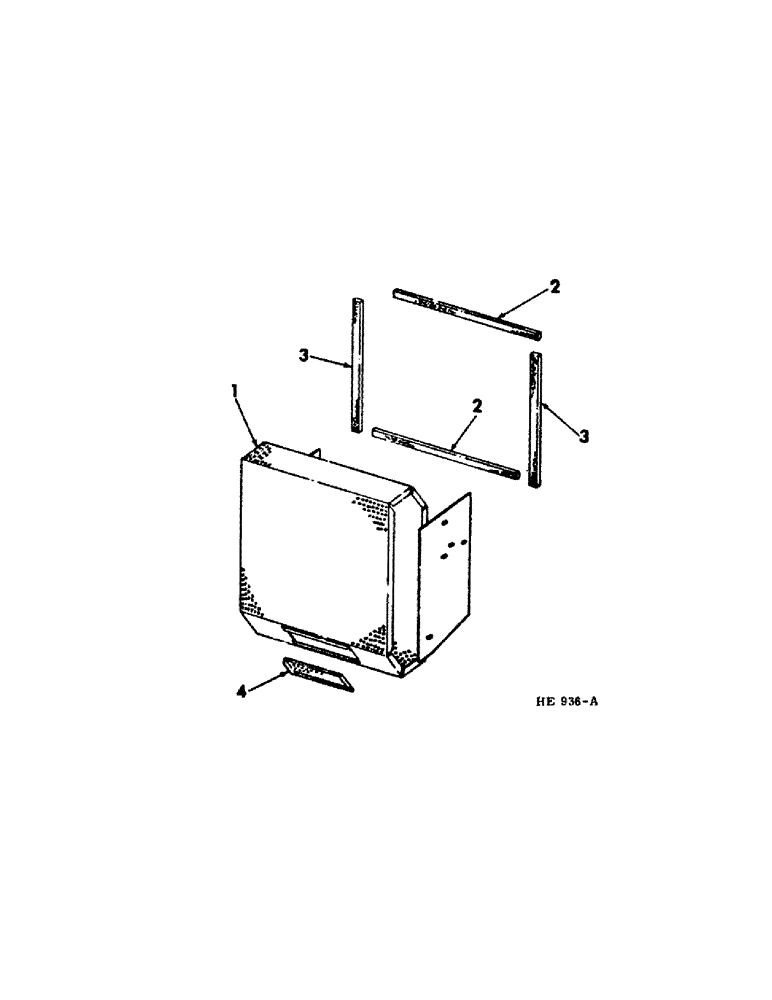

Запчасти Case IH 225 (A-6[A]) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR SCREEN Chassis, Radiator & Sheet Metal

1

610890R92

SCREEN, radiator, Composed of

1шт.

SCREEN

1шт.

825688C1

SEAL

2шт.

826164C1

SEAL

2шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 X 1/2" BOLT

2шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

825688C1

SEAL, radiator screen inner

2шт.

3

826164C1

SEAL, radiator screen side

2шт.

4

610885R1

DOOR, radiator screen clean-out

1шт.
