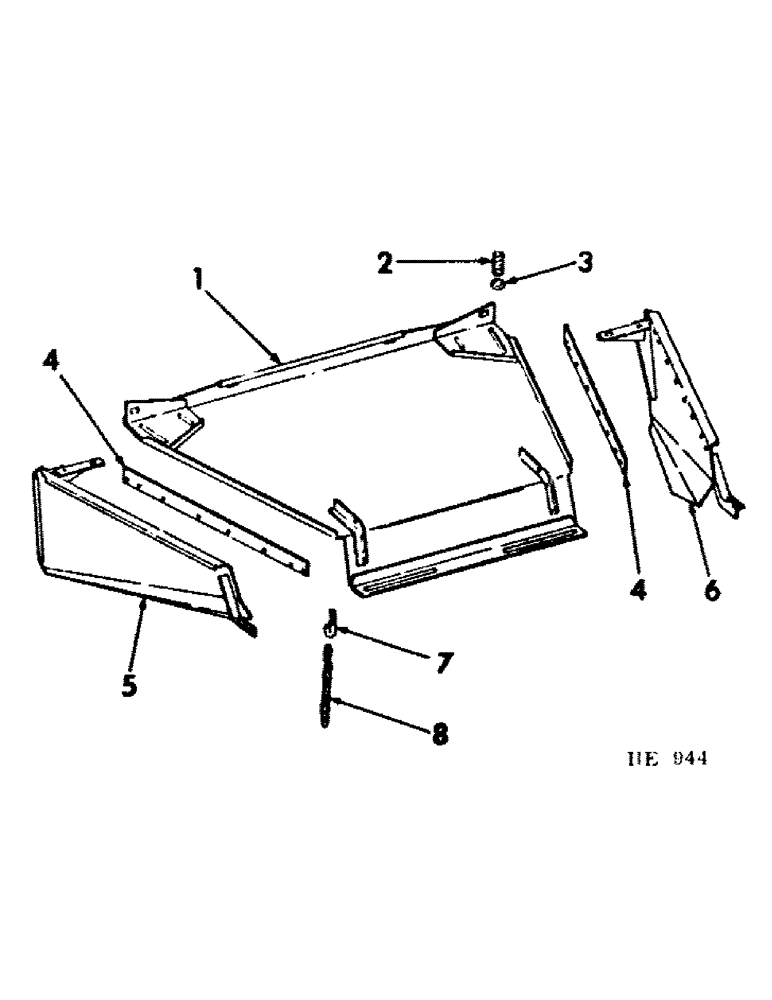

Запчасти Case IH 225 (A-5) - CHASSIS, RADIATOR AND SHEET METAL, WINDROW DEFLECTOR SHIELDS Chassis, Radiator & Sheet Metal

1

599491R2

SHIELD, deflector upper

1шт.

2

704686R1

SPRING

deflector pivot

4шт.

3

704681R2

FRICTION WASHER

deflctor pivot

8шт.

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1/4 X 2-1/4" BOLT

4шт.

20600R1

WASHER

9/32 X 3/4 X 11 GA WASHER

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

4

599507R1

STRIP, side deflector sealing

2шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

1/4 X 1/2" CRG BOLT

16шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

16шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

16шт.

5

599496R1

DEFLECTOR, side - LH

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

3/8 X 1-1/4" CRG BOLT

1шт.

20803R1

WASHER

13/32 X 1 X 11 GA WASHER

1шт.

126032

WING NUT,3/8"-16

3/8" WING NUT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

599497R1

DEFLECTOR, side RH

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

3/8 X 1-1/4" CRG BOLT

1шт.

20803R1

WASHER

13/32 X 1 X 11 GA WASHER

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

599506R1

ROD, chain hook

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

8

651430R2

CHAIN, deflector shield

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

2шт.

142619H

WASHER

13/32 X 3/4 X 11 GA WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
