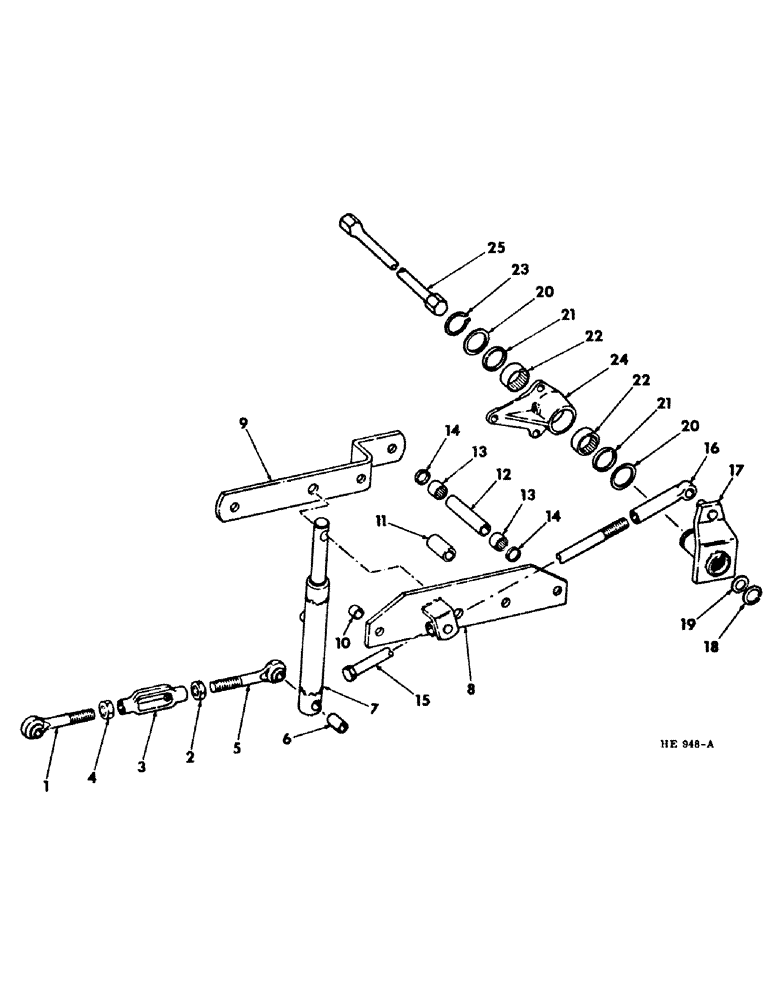

Запчасти Case IH 225 (A-4) - CHASSIS, RADIATOR AND SHEET METAL, CHASSIS PLATFORM LIFT AND FLOAT Chassis, Radiator & Sheet Metal

1

595686R91

LINK

platform lift lower front

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

426898

NUT,Jam, 7/8"-9, G5

7/8" hex jam

2шт.

3

595992R1

TURNBUCKLE

platform lift lower link

2шт.

4

22852R1

NUT,Jam, 7/8"-9, G5, LH

7/8 hex jam LH thread

2шт.

5

595687R91

LINK

platform lift lower rear

2шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4 X 6" BOLT

2шт.

467750R1

WASHER

25/32 X 1-1/2 X 11 GA WASHER

4шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

6

599222R1

SPACER, cyl lower

2шт.

7

599221R91

CYLINDER

ASSY, hyd (For service parts refer to "platform lift hydraulic cylinder" section F)

2шт.

8

599207R1

ARM, platform lift upper LH shown

1шт.

8

599208R1

ARM, platform lift upper RH

1шт.

9

599213R2

BRACE, platform upper lift arm

2шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

3/4 X 4" BOLT

4шт.

20575R1

BOLT,Hex, 3/4" - 10 x 8", Gr 5

3/4 X 8" BOLT

2шт.

932388R1

PIN,1" x 3 1/2"

1 X 3-1/2" STD-HD DLD PIN

2шт.

280954

NUT,3/4"-10, G5

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

2шт.

10

F19286

BUSHING

SPACER, lift arm

2шт.

11

599622R1

SPACER, lift arm brace

2шт.

12

599209R1

SPACER, lift arm pivot

1шт.

13

102613R91

NEEDLE BEARING

pivot

4шт.

14

606749R91

OIL SEAL

bearing oil

4шт.

15

599220R1

BOLT, float adjusting

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4" HEX JAM NUT

2шт.

16

599219R1

END

torsion bar pitman

2шт.

17

RETAINER, torsion bar (w/o welded plug) (Prior to serial no. 805) (For service order 1 - 823020C11, retainer)

1шт.

17

823020C11

RETAINER, torsion bar (w/welded plug)

2шт.

21753R1

WASHER

25/32 X 1-1/2 X 16 GA WASHER

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

18

631449R1

RING, SNAP

RING, retaining (Prior to serial no. 805)

2шт.

19

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga (Prior to serial no. 805)

2шт.

20

22188R1

WASHER

29/32 x 3 x 14 ga

4шт.

21

466174R92

SEAL

hub oil

4шт.

22

370486R91

NEEDLE BEARING

torsion bar retainer hub

4шт.

23

644771R1

SNAP RING,#225, Ext

Ring, Snap, #225, Ext

2шт.

24

599218R2

BEARING, torsion bar retainer

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

25

345892C1

BAR, torsion LH shown

1шт.

25

345893C1

BAR, torsion RH

1шт.
