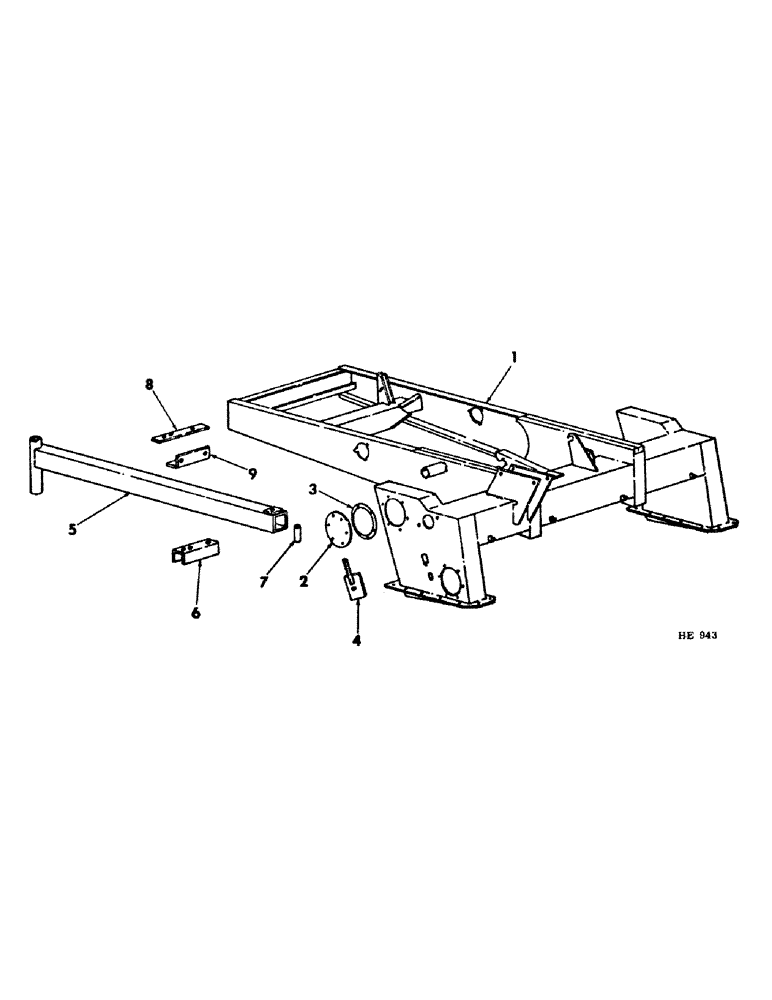

Запчасти Case IH 225 (A-2) - CHASSIS, RADIATOR AND SHEET METAL, MAIN FRAME AND CASTER WHEEL BEAM Chassis, Radiator & Sheet Metal

1

599159R2

FRAME, main

1шт.

271293

PULLEY

5/16" LUB-FITTING

2шт.

22188R1

WASHER

2-9/32 X 3 X 14 GA WASHER (Idler arm support)

1шт.

103426

ELBOW,1/4" x 3"

Split (Cotter), 1/4" x 3"

1шт.

2

599960R1

COVER, final drive hand hole

4шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 X 5/8" BOLT

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

3

599961R1

GASKET, final drive hand hole cover

4шт.

4

ADJUSTER ASSY, main wheel drive sprocket chain (For service refer to "final drive" section B)

4шт.

5

599273R1

BEAM, caster wheel

1шт.

21543R1

7/8 X 6-1/2" BOLT

1шт.

21761R1

WASHER

29/32 X 1-1/2 X 16 GA WASHER

3шт.

426767

NUT,7/8"-14, G5

7/8" NUT

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

6

599280R1

CHANNEL, beam support

1шт.

7

599277R1

SPACER, beam

1шт.

8

599278R1

BAR, beam rear anchor

1шт.

9

599279R1

ANGLE, caster wheel beam rear mounting

1шт.

20918R1

SCREW

3/4 X 7" BOLT

2шт.

426099

NUT,3/4"-16, G5

3/4" NUT

4шт.
