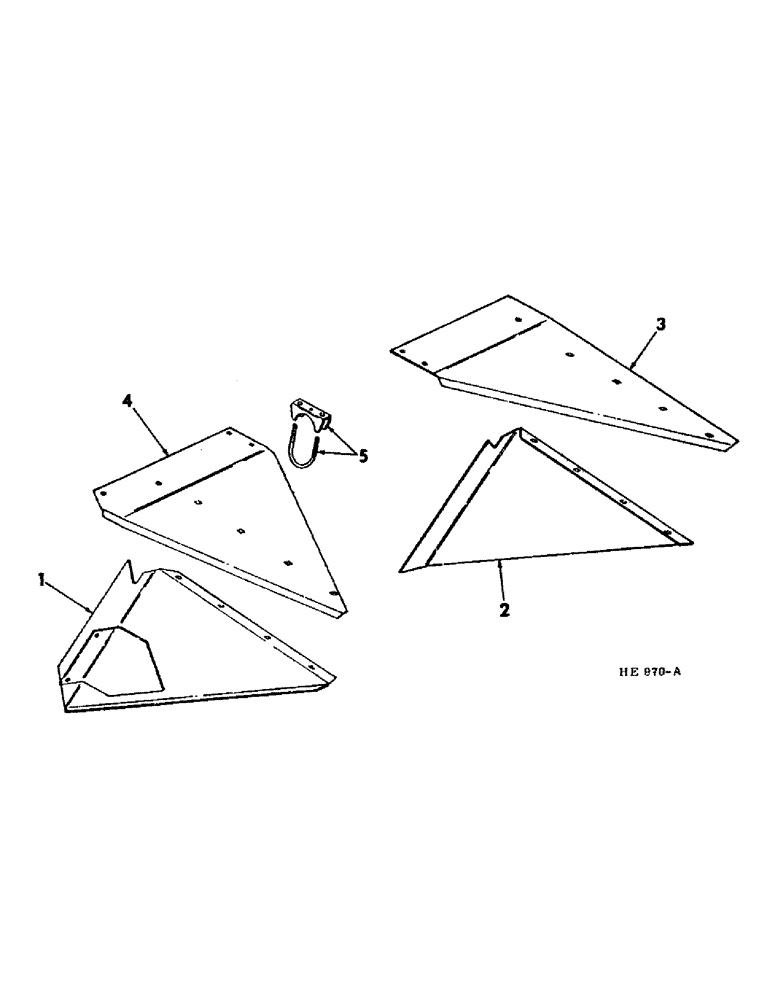

Запчасти Case IH 225 (N-2) - PARTS ACCESSORIES AND ATTACHMENTS, DIVIDER EXTENSION, FOR USE IN SUDEX Accessories & Attachments

1

599509R1

DIVIDER, extension LH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

2шт.

469668R1

WASHER

13/32 X 3/4 X 16 GA WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

12032

SENSOR

3/8" LK-WASHER

2шт.

2

599510R1

DIVIDER, extension RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

2шт.

469668R1

WASHER

13/32 X 3/4 X 16 GA WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

599514R1

DIVIDER, extension top LH

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 X 1/2" BOLT

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

4

599515R1

DIVIDER, extension top RH

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 X 1/2" BOLT

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 X 5/8" BOLT

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

4шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

5

215327R91

CLAMP

shield, Composed of:

2шт.

SADDLE

1шт.

U-BOLT

1шт.

120368

NUT,5/16"-24, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120368

NUT,5/16"-24, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
