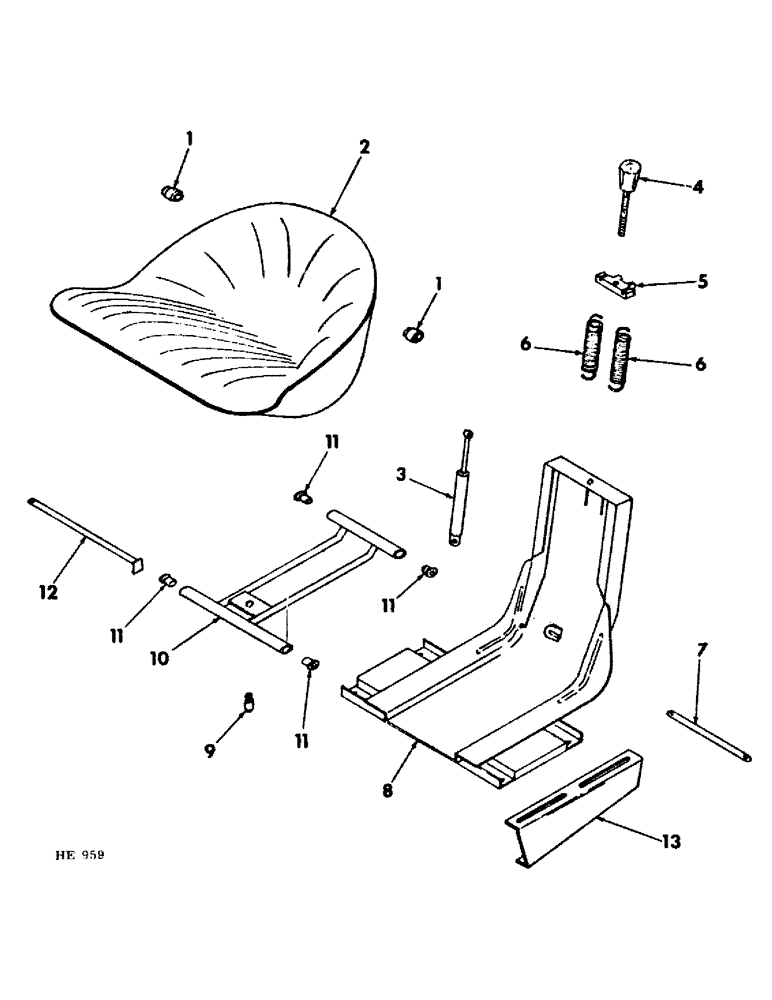

Запчасти Case IH 225 (M-6) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, OPERATORS SEAT, WILLBALD GRAMMER, 1970 SEASON ONLY (10) - OPERATORS PLATFORM

3134828R92

SEAT

ASSY, operator's (Includes all parts listed unless otherwise noted)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT

4шт.

Not part of seat.

1шт.

619855R1

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

Not part of seat.

1шт.

120376

NUT,5/16"-18, G5

4шт.

Not part of seat.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Not part of seat.

1шт.

1

3134833R1

ROLLER

seat

2шт.

2

3134829R1

SHELL, seat

1шт.

3

3134837R1

SHOCK ABSORBER

ABSORBER, shock

1шт.

4

3134839R1

SPINDLE

SCREW, lead

1шт.

5

3134838R1

HOLDER

BRACKET, spring

1шт.

6

3134836R1

SPRING

helical

2шт.

7

3134840R1

PIN

rocker

1шт.

8

3134832R1

SUPPORT, seat

1шт.

9

3134835R1

BUMPER

STOP, rubber

1шт.

10

3134831R1

ARM, rocker

1шт.

11

3134834R1

BUSHING

guide

4шт.

12

3134830R1

PIN, guide

1шт.

13

599261R1

SUPPORT, seat LH shown (For use w/3134828R2, seat assy)

1шт.

Not part of seat.

1шт.

13

599262R1

SUPPORT, seat RH (For use w/3134828R92, seat assy)

1шт.

Not part of seat.

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

4шт.

Not part of seat.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

Not part of seat.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Not part of seat.

1шт.
