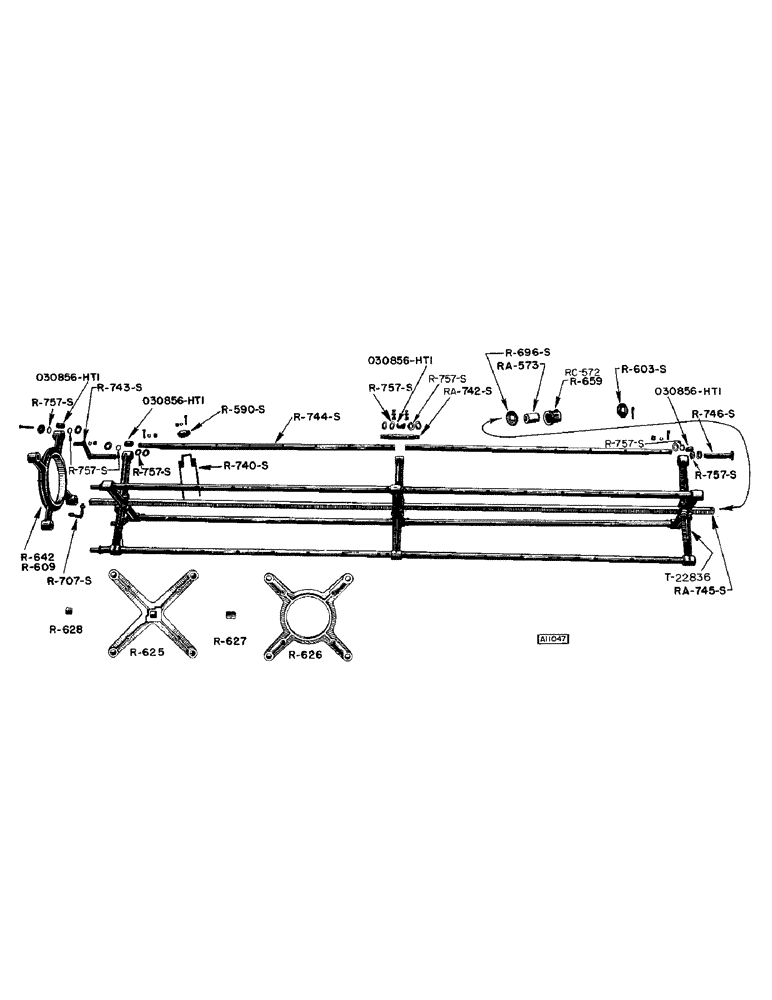

Запчасти Case IH F170 (12) - REEL ASSEMBLY, ROLLER BEARING

T22836

SPIDER - reel, w/4-030856HT1 bearing (YR. 39-)

3шт.

B219-1

1/8" str. Lincoln fitting #5000

12шт.

RC572

BEARING - reel shaft (See R659) (YR. 39-49)

1шт.

RA573

BUSHING - reel shaft bearing (YR. 39-)

1шт.

R609

HEAD - eccentric reel, w/4 bearings 030856HT1 (YR. 1939)

1шт.

R610

SPIDER - reel, (Use T22836)

1шт.

R625

SPIDER - reel, w/bearings R627 (YR. 39-40)

3шт.

R626

HEAD - eccentric reel, w/bearings R628 (YR. 39-40)

1шт.

R627

BEARING - for reel spider R625 (YR. 39-40)

4шт.

R628

BEARING - for reel eccentric head R626 (YR. 39-40)

4шт.

R629

BEARING - reel pipe (Use R743S) (YR. 40-44)

4шт.

R642

HEAD - eccentric reel, w/4 bearings 030856HT1 (YR. 40-)

1шт.

B219-1

1/8" straight Lincoln fitting #5000

4шт.

R659

BEARING - reel shaft (See RC572) (YR. 50-)

1шт.

B219-1

1/8" straight Lincoln fitting #5000

1шт.

R590S

CLAMP

- tooth (YR. 45-)

64шт.

3/8" x 2" carriage bolt w/lockwasher and nut

64шт.

R603S

WASHER - thrust (2-3/4" x 1-5/16" square hole x #11) (YR. 39-)

5шт.

R696S

WASHER - thrust (3-1/2" x 1-5/16" square hole x 1/8") (YR. 39-)

1шт.

R707S

BOLT - spider clamp (YR. 39-)

6шт.

1/2" lockwasher and N.C. hex. nut

12шт.

R740S

SPRING

TEETH - (YR. 39-)

64шт.

RA742S

CONNECTION - center, reel pipe (YR. 39-)

4шт.

1-7/8" x 1" x 14 washer

8шт.

R743S

CRANK - reel pipe (YR. 44-)

4шт.

2" x 13/32" x 12 washer

4шт.

1-7/8" x 1" x 14 washer

16шт.

3/8" x 3-1/4" N.C. hex. bolt w/lockwasher and nut

4шт.

R744S

PIPE - reel tooth (1" pipe x 58-3/16") (YR. 39-)

8шт.

7/16" x 1-3/4" N.C. hex. bolt w/lockwasher and nut

32шт.

RA745S

PIPE - reel shaft (1-1/4" sq. x 133-1/2") (YR. 39-)

1шт.

5/16" x 2-1/4" cotter pin

1шт.

1/4" x 1-3/4" cotter pin

1шт.

R746S

STUD - rear, reel pipe (YR. 39-)

4шт.

1-7/8" x 1" 14 washer

8шт.

R757S

WASHER - felt, grease retainer (YR. 39-)

32шт.

O30856HT1

BEARING, ROLLER

BEARING - (#BH1624 Torrington w/oil hole) reel spider and eccentric head (YR. 39-)

16шт.
