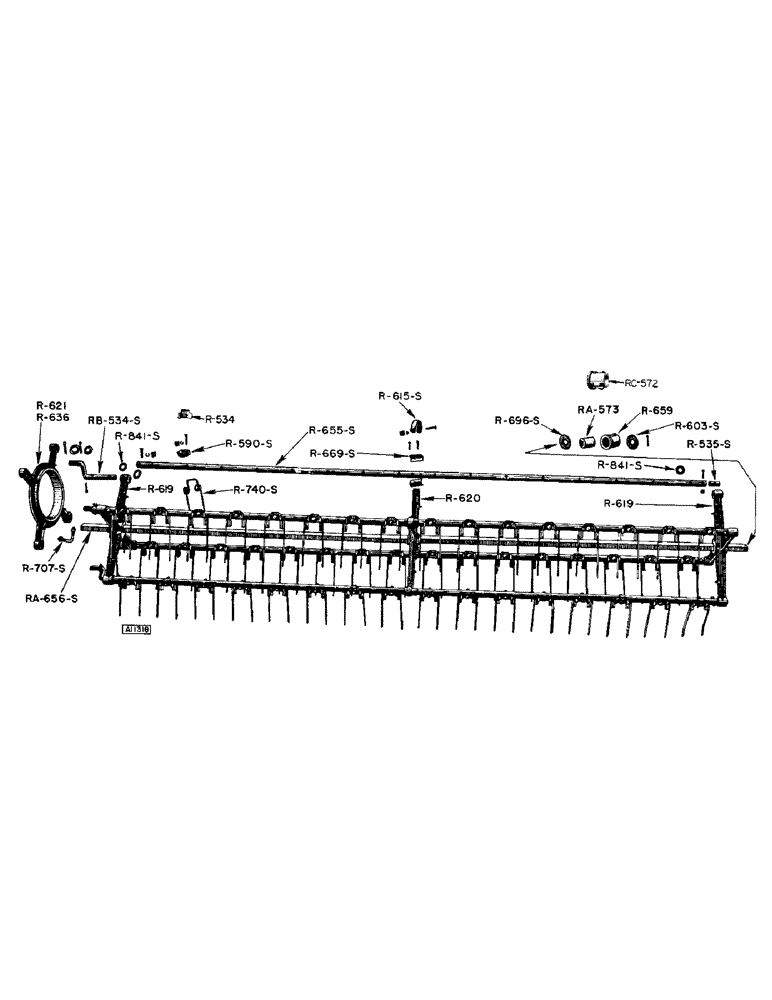

Запчасти Case IH F170 (11) - REEL ASSEMBLY, PLAIN BEARING

R534

X

CLAMP - rake tooth (Use R590S)

1шт.

RC572

BEARING - reel shift (See R659) (YR. 39-49)

1шт.

RA573

BUSHING - reel shaft bearing (YR. 39-)

1шт.

R619

SPIDER - reel (YR. 39-)

2шт.

B219-1

1/8" straight Lincoln fitting #5000

8шт.

R620

SUPPORT - center (YR. 39-)

1шт.

B219-1

1/8" straight Lincoln fitting #5000

4шт.

R621

HEAD - eccentric, reel (YR. 1939)

1шт.

R636

HEAD - eccentric, reel (YR. 40-)

1шт.

B219-1

1/8" straight Lincoln fitting #5000

4шт.

R659

BEARING - reel shaft (See RC572) (YR. 50-)

1шт.

B219-1

1/8" straight Lincoln fitting #5000

1шт.

RB534S

CRANK - rake tooth pipe (YR. 39-)

4шт.

1/4" x 1-1/2" cotter pin

8шт.

R535S

EXTENSION - rake tooth pipe, rear (YR. 39-)

4шт.

1/4" x 1-1/2" cotter pin

4шт.

R590S

CLAMP

- tooth (YR. 45-)

64шт.

3/8" x 2" carriage bolt w/lockwasher and nut

64шт.

R603S

WASHER - thrust (2-3/4" x 1-5/16" sq. hole x #11 wrot washer) (YR. 39-)

1шт.

R615S

CLIP - center reel support (YR. 39-)

4шт.

5/16" x 2-3/4" carriage bolt w/lockwasher and nut

4шт.

R655S

PIPE - tooth bar (1" pipe x 118-3/4") (YR. 39-)

4шт.

7/16" x 1-3/4" N.C. hex. bolt w/lockwasher and nut

8шт.

RA656S

PIPE - reel shaft (1-1/4" sq. x 133-1/2") (YR. 39-)

1шт.

1/4" x 1-3/4" cotter pin

3шт.

5/16" x 2-1/4" cotter pin

1шт.

R669S

BUSHING - center reel support (YR. 39-)

8шт.

1/4" x 1-3/4" round head rivet

8шт.

R696S

WASHER - thrust (3-1/2" O.D. x 1-5/16" square hole x 1/8") (YR. 39-)

1шт.

R707S

BOLT - spider clamp (YR. 39-)

4шт.

1/2" lockwasher and nuts

8шт.

R740S

SPRING

TEETH - (YR. 39-)

64шт.

R841S

WASHER - wrot (1-5/8" x 1-1/16" x #16) for RB534S and R535S (YR. 39-)

20шт.
