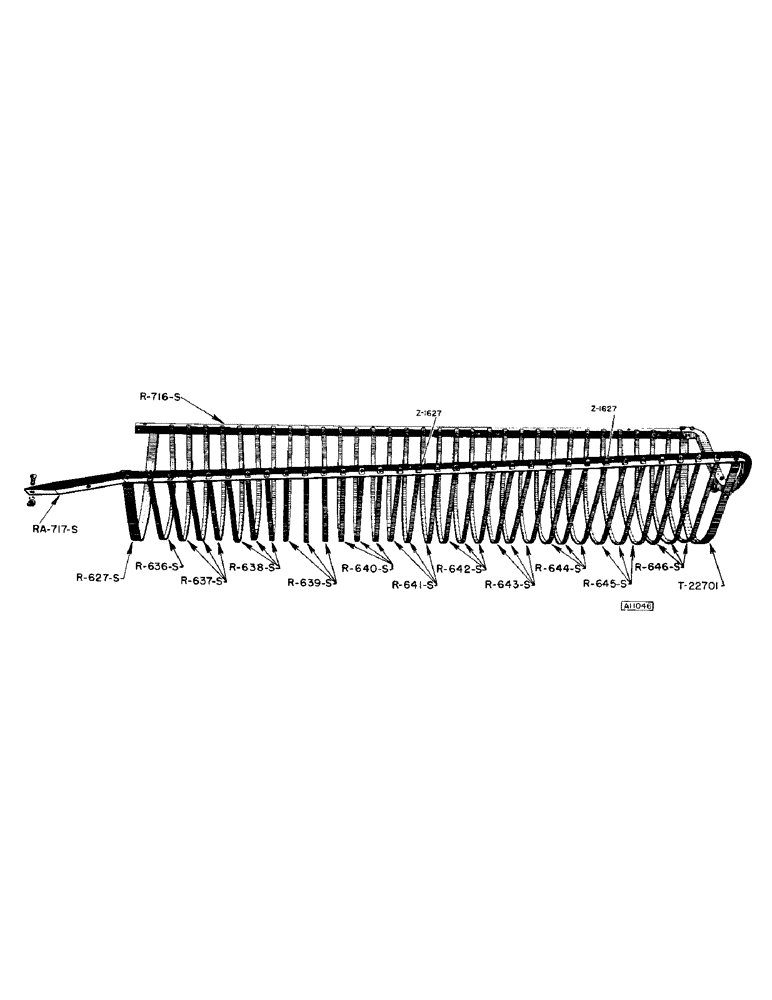

Запчасти Case IH F170 (09) - FRONT AND REAR ANGLES AND STRIPPERS, WILD HAY AND MINT

T22701

GUARD - rear reel (YR. 39-)

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher and nut

2шт.

R627S

GUARD - reel front (2" x 3/16" x 57-1/2") (YR. 39-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

2шт.

R628S

GUARD - rear reel (Use T22701)

1шт.

R636S

STRIPPER - #1 (59-1/2" long) (YR. 39-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

2шт.

R637S

STRIPPER - #2 (60" long) (YR. 39-)

3шт.

3/8" x 1" carriage bolt w/lockwasher and nut

6шт.

R638S

STRIPPER - #3 (60-1/2" long) (YR. 39-)

3шт.

3/8" x 1" carriage bolt w/lockwasher and nut

6шт.

R639S

STRIPPER - #4 (61" long) (YR. 39-)

3шт.

3/8" x 1" carriage bolt w/lockwasher and nut

6шт.

R640S

STRIPPER - #5 (61-1/2" long) (YR. 39-)

3шт.

3/8" x 1" carriage bolt w/lockwasher and nut

6шт.

R641S

STRIPPER - #6 (62" long) (YR. 39-)

3шт.

3/8" x 1" carriage bolt w/lockwasher and nut

5шт.

R642S

STRIPPER - #7 (62-1/2" long) (YR. 39-)

3шт.

3/8" x 1" carriage bolt w/lockwasher and nut

6шт.

R643S

STRIPPER - #8 (63" long) (YR. 39-)

3шт.

3/8" x 1" carriage bolt w/lockwasher and nut

6шт.

R644S

STRIPPER - #9 (63-1/2" long) (YR. 39-)

3шт.

3/8" x 1" carriage bolt w/lockwasher and nut

5шт.

R645S

STRIPPER - #10 (64" long) (YR. 39-)

3шт.

3/8" x 1" carriage bolt w/lockwasher and nut

6шт.

R646S

STRIPPER - #11 (64-1/2" long) (YR. 39-)

3шт.

3/8" x 1" carriage bolt w/lockwasher and nut

6шт.

R716S

ANGLE - rear stripper (YR. 39-)

1шт.

RA717S

ANGLE - front stripper

1шт.

1/2" x 1-1/4" carriage bolt w/lockwasher and nut

1шт.

Z1627

BOLT - (3/8" x 1" P#3 plow w/nut) for R641S and R644S stripper under front angle support (YR. 39-)

2шт.
