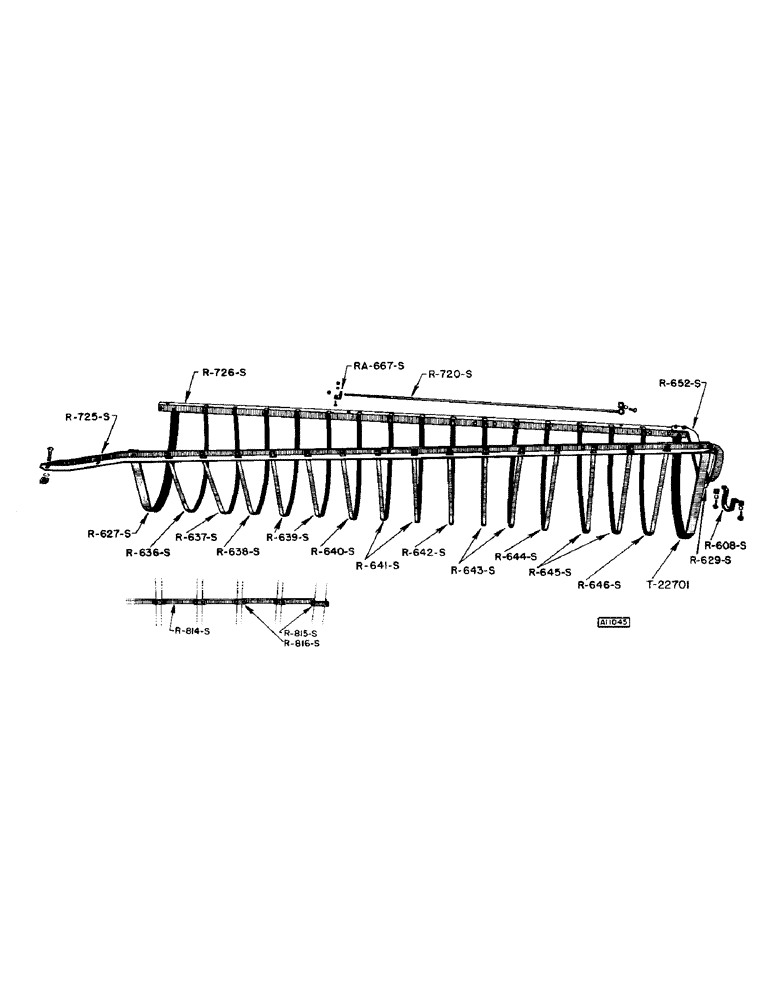

Запчасти Case IH F170 (08) - FRONT AND REAR ANGLES AND STRIPPERS, REGULAR

T22701

GUARD - rear reel (2" x 3/16" x 61-1/2") (YR. 39-)

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher and nut

2шт.

R608S

STIRRUP - hanger (YR. 39-)

1шт.

3/8" x 1-1/4" machine bolt w/lockwasher and nut

2шт.

R627S

GUARD - front reel (2" x 3/16" x 57-1/2") (YR. 39-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

2шт.

R628S

GUARD - rear reel (2" x 3/16" x 61-1/2") (Use T22701)

1шт.

R629S

BRACE - outside reel guard (1-1/4" x 3/16" x 5-1/2") (YR. 39-)

1шт.

3/8" x 3/4" round head rivet

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher and nut

1шт.

R636S

STRIPPER - #1 (59-1/2" long) (YR. 39-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

2шт.

R637S

STRIPPER - #2 (60" long) (YR. 39-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

2шт.

R638S

STRIPPER - #3 (60-1/2" long) (YR. 39-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

2шт.

R639S

STRIPPER - #4 (61" long) (YR. 39-)

2шт.

3/8" x 1" carriage bolt w/lockwasher and nut

4шт.

R640S

STRIPPER - #5 (61-1/2" long) (YR. 39-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

2шт.

R641S

STRIPPER - #6 (62" long) (YR. 39-)

2шт.

3/8" x 1" carriage bolt w/lockwasher and nut

4шт.

R642S

STRIPPER - #7 (62-1/2" long) (YR. 39-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

2шт.

R643S

STRIPPER - #8 (63" long) (YR. 39-)

2шт.

3/8" x 1" carriage bolt w/lockwasher and nut

4шт.

R644S

STRIPPER - #9 (63-1/2" long) (YR. 39-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

2шт.

R645S

STRIPPER - #10 (64" long) (YR. 39-)

2шт.

3/8" x 1" carriage bolt w/lockwasher and nut

4шт.

R646S

STRIPPER - #11 (64-1/2" long) (YR. 39-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

2шт.

R652S

ANGLE - tail (YR. 39-)

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher and nut

4шт.

RA667S

SUPPORT - angle, truss rod (YR. 39-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

1шт.

R720S

ROD - truss (YR. 39-)

1шт.

1/2" x N.C. hex. nut

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher and nut

1шт.

R725S

ANGLE - front stripper (YR. 39-)

1шт.

1/2" x 1-1/4" carriage bolt w/lockwasher and nut

1шт.

R726S

ANGLE - rear stripper (YR. 39-)

1шт.

R814S

SUPPORT - stripper (1" x 3/16" x 124-7/8") (YR. 40-)

2шт.

R815S

CLAMP - end stripper support (1" x 3/16" x 3-7/8") (YR. 40-)

4шт.

5/16" x 1" carriage bolt w/lockwasher and nut

8шт.

R816S

CLAMP - stripper support and stripper (1" x 3/16" x 2-7/8") (YR. 40-)

30шт.

5/16" x 1" carriage bolt w/lockwasher and nut

60шт.
