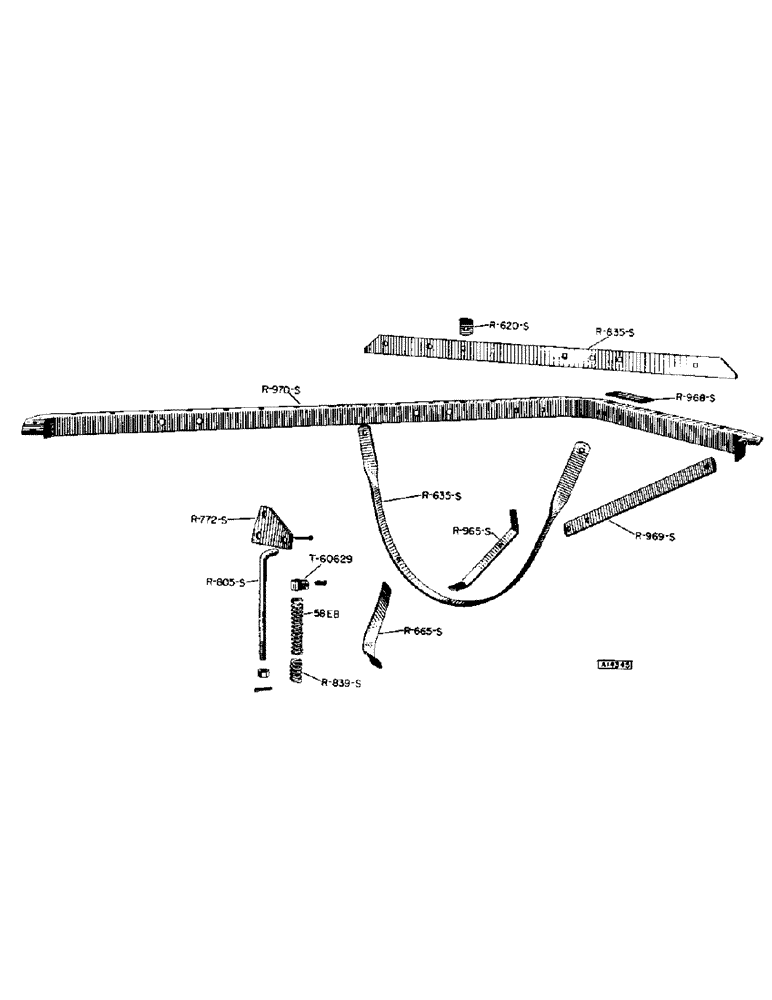

Запчасти Case IH F170 (07) - FRAME, CROSS ANGLE AND REEL ADJUSTING CONNECTION, LOW WHEEL

T60629

COLLAR - set link connection (YR. 52-)

1шт.

3/8" x 3/4" C.P. set screw

1шт.

L818

COLLAR - set, link connection (Use T60629)

1шт.

R620S

SUPPORT - front stripper angle (YR. 52-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher and nut

1шт.

R635S

GUARD - reel, front (YR. 52-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

2шт.

R665S

STRAP - connection, reel guard (YR. 52-)

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher and nut

2шт.

R772S

BELL CRANK - lever, front reel control (YR. 52-)

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher and nut

1шт.

1-3/8" x 9/16" x 16 ga. washer

1шт.

R805S

LINK - connection (5/8" rd. x 10-7/8") (YR. 52-)

1шт.

5/8" N.C. hex. nut

1шт.

3/16" x 1" cotter pin

2шт.

R835S

ANGLE - front cross (YR. 52-)

1шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher and nut

2шт.

R839S

SPRING - link connection, lower (11/16" I.D. x 2" long, compression) (YR. 52-)

1шт.

R965S

BRACE - front, reel guard

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher and nut

1шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher and nut

1шт.

R968S

SPACER - R.H. axle bracket (YR. 52-)

1шт.

R969S

BRACE - R.H. support axle (1-1/2" x 1/2" x 24-1/8") (YR. 52-)

1шт.

R970S

ANGLE - main frame (2" x 2" x 1/4" x 110") (YR. 52-)

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher and nut

1шт.

1/2" x 1-1/4" P#3 plow bolt w/lockwasher and nut

1шт.

58EB

SPRING - link connection, upper (11/16" I.D. x 5" long, 14 coils, compression) (YR. 52-)

1шт.
