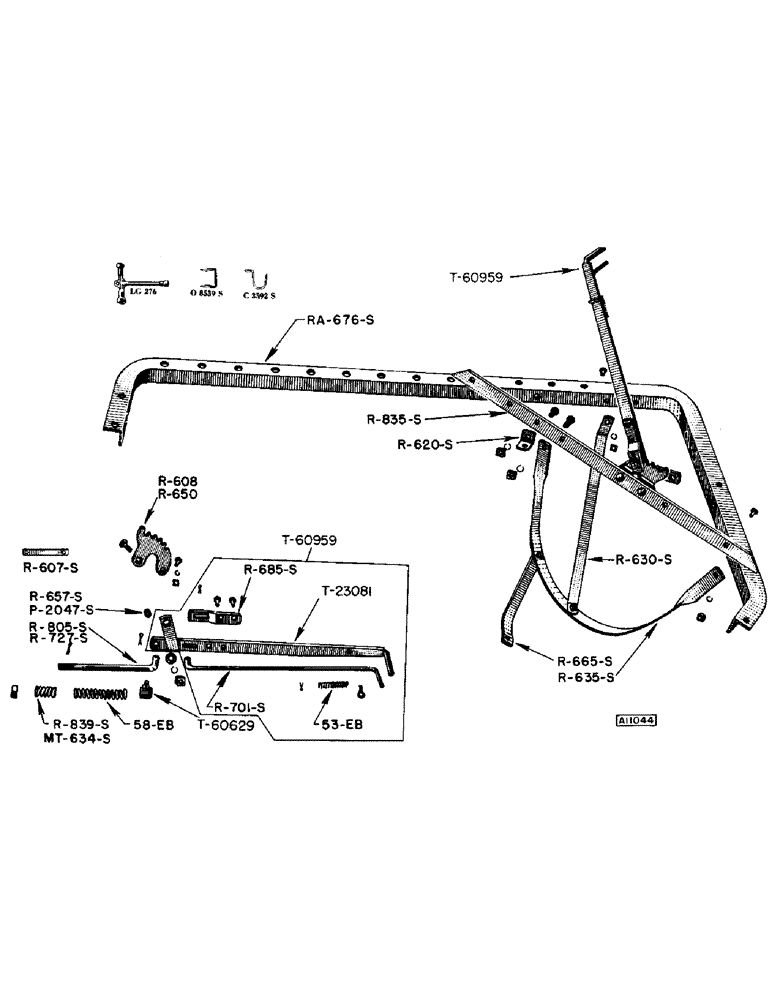

Запчасти Case IH F170 (06) - FRAME, CROSS ANGLE AND REEL LEVER, HIGH WHEEL

T23081

LEVER - reel (YR. 39-)

1шт.

T60629

COLLAR - set link connection (YR. 40-)

1шт.

3/8" x 3/4" C.P. set screw

1шт.

T60959

LEVER - reel (Complete) (YR. 39-)

1шт.

C3592S

HOOK - wrench (YR. 39-46)

1шт.

L818

COLLAR - set, link connection (Use T60629)

1шт.

LG276

WRENCH - (YR. 39-47)

1шт.

MT634S

SPRING - link connection (Use R839S)

1шт.

08539S

HOLDER - oil can (YR. 39-46)

1шт.

P2047S

BUSHING - reel lever (3/8" pipe x 17/32" long) (See R657S) (YR. 47-)

1шт.

R608

QUADRANT - reel lever (Use R650 and 1-P2047S)

1шт.

R650

QUADRANT - reel lever (YR. 45-)

1шт.

3/8" x 1-1/4" carriage bolt w/lockwasher and nut

1шт.

7/16" x 1-3/4" carriage bolt w/lockwasher and nut

1шт.

1-1/4" x 1/2" x 14 ga. washer

1шт.

R607S

LINK - connection (YR. 40-47)

1шт.

R620S

SUPPORT - front stripper angle (YR. 39-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher and nut

1шт.

R630S

BRACE - front spider guard (YR. 39-)

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher and nut

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

1шт.

R635S

GUARD - reel, front (YR. 39-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

2шт.

RA649S

ANGLE - front cross (2" x 1-1/2" x 1/4" x 41") (Use R835-S) (YR. 39-48)

1шт.

R657S

X

BUSHING - reel lever (3/8" pipe x 5/8" long) (See P2047S) (YR. 39-47)

1шт.

R665S

STRAP - connection, spider guard (YR. 39-)

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher and nut

2шт.

RA676S

FRAME - main (2" x 2" x 1/4" x 107") (YR. 39-)

1шт.

3/8" x 1" carriage bolt w/lockwasher and nut

2шт.

R685S

GUIDE - plunger (YR. 39-)

1шт.

5/16" x 1" round head rivet

2шт.

R701S

ROD - latch, reel lever (3/8" rd. x 27-1/4") (YR. 39-)

1шт.

1/8" x 3/4" cotter pin

2шт.

R727S

LINK - connection (5/8" rd. x 13-3/8") (See R805S) (YR. 1939)

1шт.

R739S

LEVER - reel (Use T23081)

1шт.

5/16" x 3/4" cotter pin w/13/32" eye

1шт.

AXR739S

LEVER - reel (Use T60959)

1шт.

R805S

LINK - connection (5/8" rd. x 10-7/8") (YR. 40-)

1шт.

3/16" x 1" cotter pin

2шт.

5/8" N.C. hex. nut

1шт.

R835S

ANGLE - front cross (YR. 48-)

1шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher and nut

2шт.

R839S

SPRING - link connection (11/16" I.D. x 2" long, compression) (YR. 49-)

1шт.

53EB

SPRING - lever latch rod (17/32" I.D. x 23/32 O.D. x 3" long, 14 coils, compression) (YR. 39-)

1шт.

58EB

SPRING - link connection, lower (11/16" I.D. x 1-3/32" O.D. x 5" long, 14 coils, compression) (YR. 39-)

1шт.
