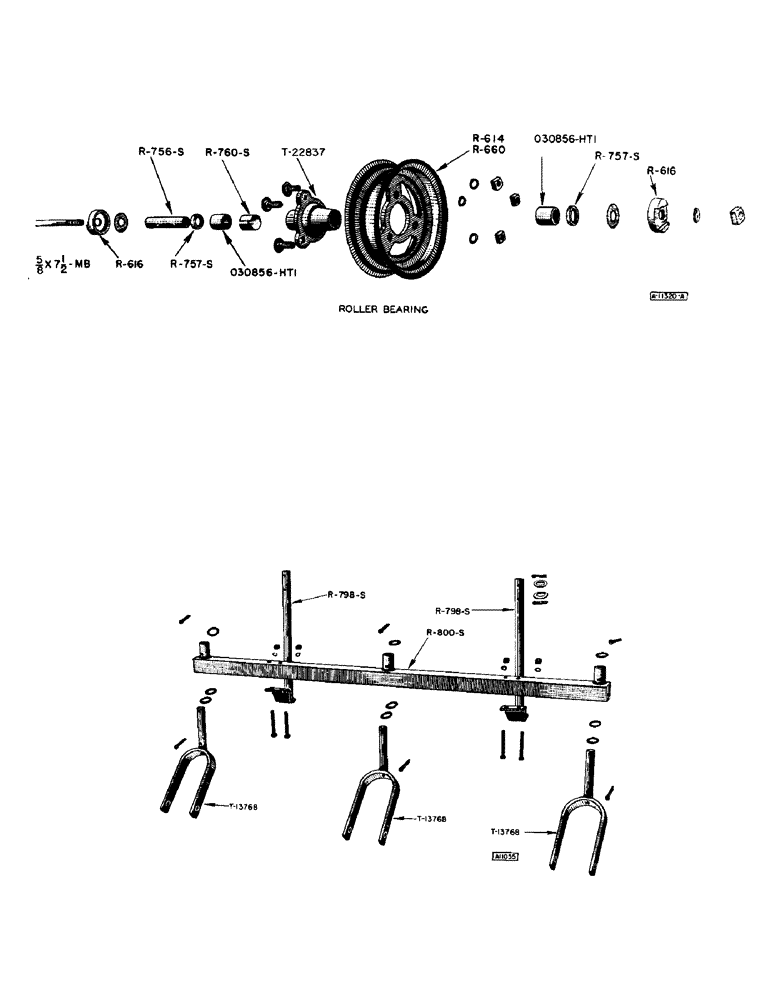

Запчасти Case IH F170 (30) - PNEUMATIC CASTER WHEELS, CONTINUED, ROLLER BEARING

T22837

BOX - wheel, w/2-O30856HT1 bearings (YR. 39-49)

1шт.

1/2" X 1-3/4" CARRIAGE BOLT W/LOCKWASHER AND NUT

3шт.

B219-1

1/8" STRAIGHT LINCOLN FITTING #5000

1шт.

R614

WHEEL - (Use T22837)

1шт.

R615

BOX - wheel (Use T22837)

1шт.

R616

CAP - sand (YR. 39-)

2шт.

5/8" X 7-1/2" N.C. HEX. BOLT W/LOCKWASHER AND NUT

1шт.

1-7/8" X 21/32" X 16 GA. WASHER

2шт.

R660

WHEEL - caster, For 4.00 x 9 tire and tube (YR. 49-)

1шт.

R656S

SLEEVE - axle (YR. 39-)

1шт.

R757S

RETAINER - felt (YR. 39-)

2шт.

R760S

SPACER - bearing (YR. 39-57)

1шт.

O30856HT1

BEARING, ROLLER

BEARING - wheel box (Torrington #BH1624) (YR. 39-)

2шт.

T13768

YOKE - caster (YR. 58-)

3шт.

1-3/4" x 1-5/16" x 16 ga. washer

9шт.

3/8" x 2" cotter pin

6шт.

R798S

POST AND BRACKET - caster (YR. 39-)

2шт.

1/2" x 3-3/4" N.C. hex. bolt w/lockwasher and nut

4шт.

5/16" x 1-3/4" cotter pin

4шт.

2" x 1-7/16" x 16 ga. washer

4шт.

RA799S

YOKE - caster (Use T13768) (YR. 39-58)

3шт.

R800S

FRAME - pipe, caster axle (YR. 39-)

1шт.

B219-20

1/4" straight Lincoln fititng #5042 (YR. 39-)

3шт.
