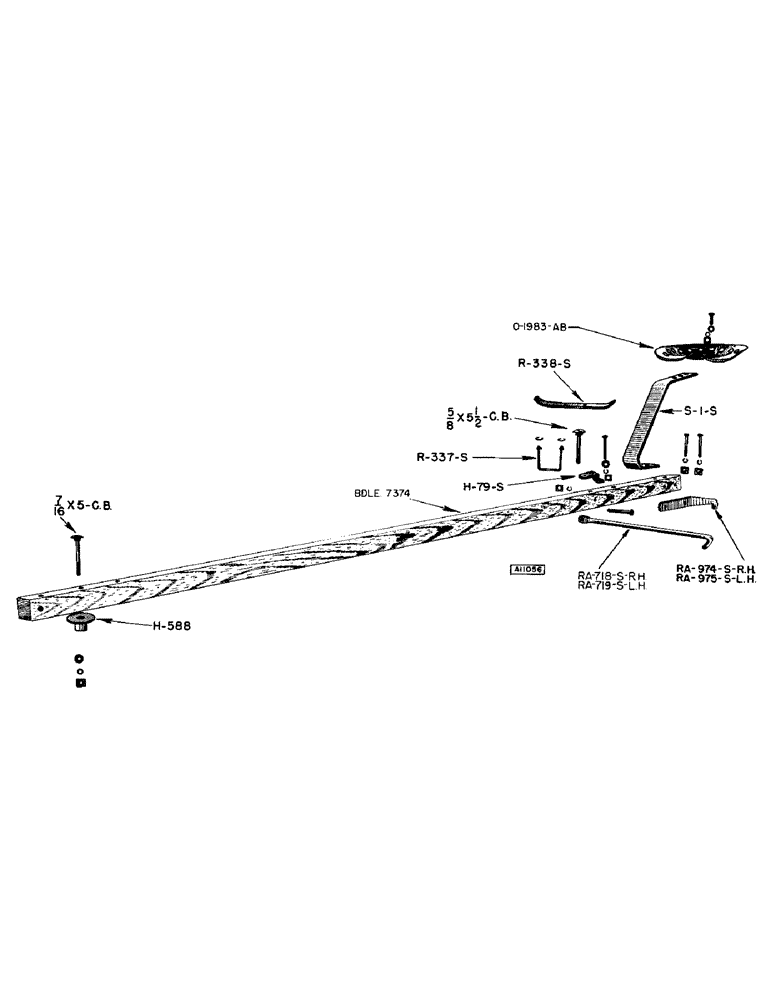

Запчасти Case IH F170 (05) - HORSE POLE AND SEAT

O1983AB

SEAT - no. 1

1шт.

C4763S

SEAT - no. 1 (Use O1983AB) (YR. 39-)

1шт.

7/16" x 1-1/4" carriage bolt w/lockwasher and nut

1шт.

H588

STOP - neck yoke (YR. 39-)

1шт.

1-3/8" x 1/2" x 14 ga. washer

1шт.

7/16" x 5" carriage bolt w/lockwasher and nut

1шт.

H79S

HAMMER STRAP - (YR. 39-)

1шт.

7/16" x 3-1/2" carriage bolt w/lockwasher and nut

1шт.

5/8" x 5-1/2" carriage bolt w/lockwasher and nut

1шт.

1-3/8" x 1/2" x 14 ga. washer

1шт.

1-1/4" x 11/16" x 16 ga. washer

1шт.

R377S

"U" BOLT - foot rest (5/16" rd. x 11-7/8) (YR. 39-)

1шт.

5/16" lockwasher and nut

2шт.

R338S

FOOT REST - (YR. 39-)

1шт.

R507S

BRACKET - pole, R.H. (Use RA974S) (YR. 39-53)

1шт.

R508S

BRACKET - pole, L.H. (Use RA975S) (YR. 39-53)

1шт.

RA718S

BRACE - pole, R.H. (7/8" rd. x 38-3/16") (YR. 39-)

1шт.

RA719S

BRACE - pole, L.H. (7/8" rd. x 35") (YR. 39-)

1шт.

1/2" x 4-3/4" N.C. hex. bolt w/lockwasher and nut

1шт.

RA974S

BRACKET - pole, R.H. (YR. 53-)

1шт.

RA975S

BRACKET - pole, L.H. (YR. 53-)

1шт.

7/16" x 4-1/2" machine bolt w/nut

2шт.

1-1/2" x 1/2" x 10 ga. washer (YR. 39-)

1шт.

S1S

SPRING - seat (YR. 39-)

1шт.

1/2" x 3-3/4" carriage bolt w/lockwasher and nut

2шт.

BDLE.7374

POLE - (Machinery item) (YR. 39-)

1шт.
