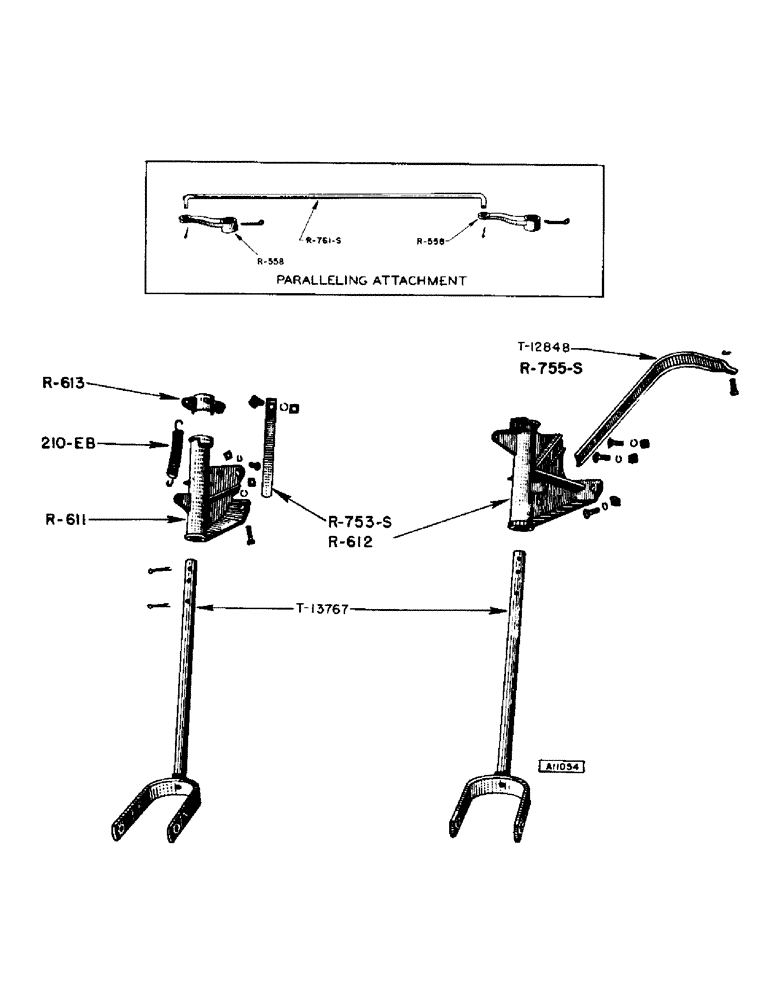

Запчасти Case IH F170 (26) - CASTER WHEEL BRACKETS AND YOKES

T12848

ARCH - 4th wheel (YR. 58-)

1шт.

1/2" x 1-1/2" carriage bolt w/lockwasher and nut

2шт.

5/8" x 1-1/2" N.C. hex. bolt w/lockwasher and nut

1шт.

T13767

YOKE - Caster wheel, cpt. (YR. 58-)

2шт.

5/16" x 1-3/4" cotter pin

4шт.

2" x 1-7/16" x 16 ga. washer

4шт.

R611

BRACKET - caster, 3rd wheel (YR. 39-)

1шт.

1/2" x 1-3/4" carriage bolt w/lockwasher and nut

2шт.

7/16" x 1-1/4" carriage bolt w/lockwasher and nut

1шт.

B219-1

1/8" straight Lincoln fitting #5000

1шт.

R612

BRACKET - caster, 4th wheel (YR. 39-)

1шт.

B219-1

1/8" straight Lincoln fitting #5000

1шт.

R613

TOP - caster post (YR. 39-)

2шт.

5/16" x 1-1/2" N.C. hex. bolt w/lockwasher and nut

2шт.

3/8" x 1" carriage bolt w/lockwasher and nut

2шт.

R753S

STRAP - guide, caster (YR. 39-)

2шт.

RA754S

YOKE - caster wheel (Use T13767) (YR. 39-58)

2шт.

R755S

ARCH - 4th wheel (Use R830S) (YR. 39-47)

1шт.

R830S

ARCH - 4th wheel (Use T12848) (YR. 47-58)

1шт.

210EB

SPRING - floating (1-1/4" O.D. x 6-11/16" long, pull) (YR. 39-)

2шт.

R558

ARM - control, caster axle (YR. 41-)

2шт.

5/16" x 2-1/2" cotter pin

2шт.

R761S

ROD - paralleling (5/8" rd. x 43-1/2") (YR. 41-)

1шт.

3/16" x 1-1/4" cotter pin

2шт.
