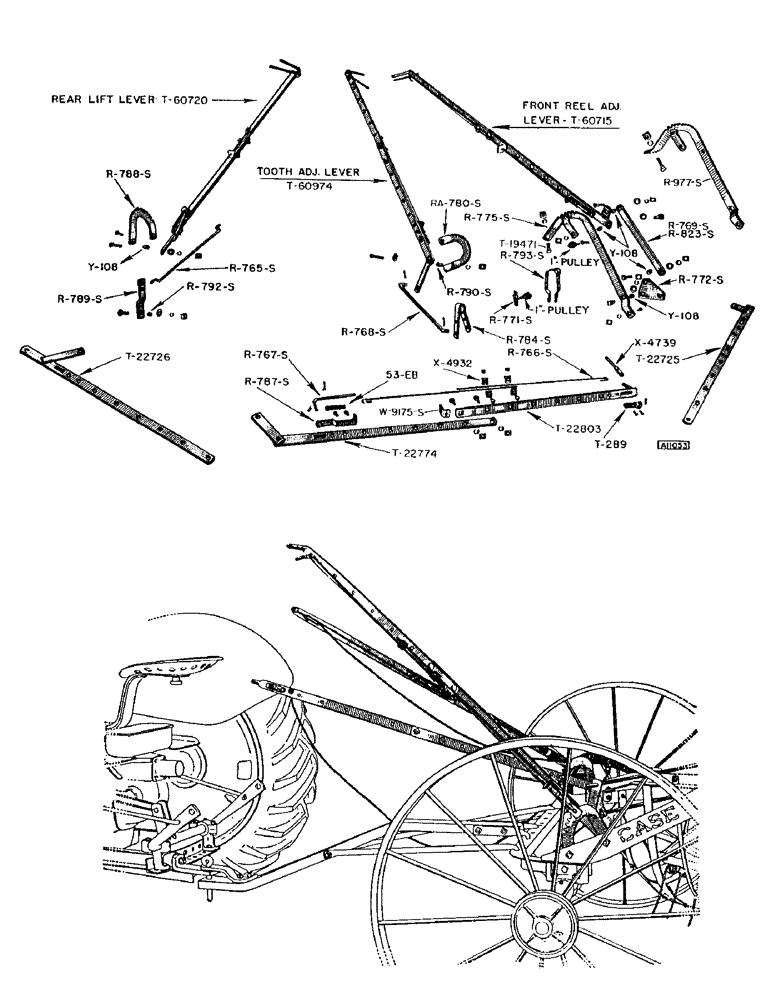

Запчасти Case IH F170 (24) - TRACTOR LEVERS

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. N.C. hex. nut, for R775S and R977S (YR. 39-)

1шт.

T22725

LEVER - lower half, front reel adjusting (YR. 39-)

1шт.

T22726

LEVER - lower half, rear lift lever (YR. 39-)

1шт.

T22774

LEVER - lower half, tooth adjusting (YR. 39-)

1шт.

T22803

LEVER - upper half (YR. 39-)

3шт.

7/16" x 1-1/4" carriage bolt w/lockwasher and nut

6шт.

T60715

LEVER - front reel adjusting, complete (YR. 39-)

1шт.

T60720

LEVER - rear lift lever, complete (YR. 39-)

1шт.

T60974

LEVER - tooth adjusting, complete (YR. 39-)

1шт.

R765S

LINK - connecting, arch angle (YR. 39-)

1шт.

R766S

ROD - lever latch (YR. 39-)

6шт.

R767S

PLUNGER - lever (YR. 39-)

3шт.

1/8" x 1" cotter pin

3шт.

3/16" x 1" cotter pin

3шт.

R768S

LINK - connecting, teeth adjusting lever (YR. 39-)

1шт.

3/16" x 1" cotter pin

2шт.

R769S

LINK - lever, front reel adjusting (R823S will work) (YR. 39-40)

1шт.

R771S

CLIP - pulley (YR. 39-)

1шт.

R772S

BELL CRANK - lever, front reel control (YR. 39-)

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher and nut

1шт.

1-3/8" x 9/16" x 16 ga. washer

1шт.

R775S

QUADRANT - lever, front reel (High wheel model) (YR. 39-)

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher and nut

2шт.

1-3/8" x 9/16" x #16 wrot washer

2шт.

R778S

LEVER - lower half, front reel adjusting (Use T22725)

1шт.

AXR778S

LEVER - front reel adjusting, (Use T60715)

1шт.

RA779S

LEVER - upper half (Use T22803)

1шт.

RA780S

QUADRANT - lever, tooth adjusting (YR. 39-)

1шт.

7/16" x 1-1/4" carriage bolt w/lockwasher and nut

2шт.

1/2" x 2" N.C. hex. bolt w/lockwasher and nut

1шт.

1-3/8" x 9/16" x 16 ga. washer

1шт.

R738S

LEVER - lower half, tooth adjusting (Use T22774)

1шт.

AXR783S

LEVER - tooth adjusting, (Use T60974)

1шт.

R784S

ARM - tooth adjusting lever bracket (YR. 39-)

1шт.

R786S

LEVER - lower half, rear lift lever (Use T22726)

1шт.

AXR786S

LEVER - rear lift lever, (Use T60720)

1шт.

R787S

GUIDE - plunger (YR. 39-)

3шт.

3/8" x 1" round head rivet

6шт.

R788S

QUADRANT - rear lift lever (YR. 39-)

1шт.

1/2" x 2" N.C. hex. bolt w/lockwasher and nut

1шт.

1-3/8" x 9/16" x 16 ga. washer

1шт.

7/16" x 1-1/4" carriage bolt w/lockwasher and nut

1шт.

R789S

TOGGLE - arch angle, rear control lever (YR. 39-)

1шт.

1/2" x 1-1/2" carriage bolt w/lockwasher and nut

1шт.

1-3/8" x 9/16" x 16 ga. washer

1шт.

R790S

BUSHING - tooth adjusting lever and quadrant (YR. 39-)

1шт.

R792S

BUSHING - toggle on arch angle (YR. 39-)

1шт.

R793S

HANDLE - clutch shifter (YR. 39-)

1шт.

R823S

LINK - lever, front reel adjusting (YR. 40-)

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher and nut

1шт.

1-3/8" x 9/16" x 16 ga. washer

1шт.

R977S

QUADRANT - lever, front reel (Low wheel model) (YR. 52-)

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher and nut

2шт.

1-3/8" x 9/16" x 16 ga. washer

2шт.

T289

BRACKET - latch, lever (YR. 39-)

3шт.

1/4" x 1" round head rivet

6шт.

W9175S

CLIP - support, latch rod (YR. 53-)

3шт.

X4739

HANDLE - lever latch (YR. 39-)

3шт.

1/4" x 3/4" carriage bolt w/lockwasher and nut

3шт.

X4932

CLAMP - latch rod, lever (YR. 39-)

12шт.

1/4" x 3/4" carriage bolt w/lockwasher and nut

6шт.

Y108

BUSHING - front, reel adjusting lever and quadrant (YR. 39-)

5шт.

53EB

SPRING - lever latch rod (17/32" I.D. x 23/32" O.D., 3" long, 14 coils, compression) (YR. 39-)

3шт.

1" awning pulley - for trip rope (YR. 39-)

2шт.

1/2" x 1-1/2" hex. bolt w/lockwasher and nut

2шт.

1-3/8" x 9/16" x 16 ga. washer

2шт.

ROPE - trip (1/4" x 14" sisal) (YR. 39-)

1шт.
